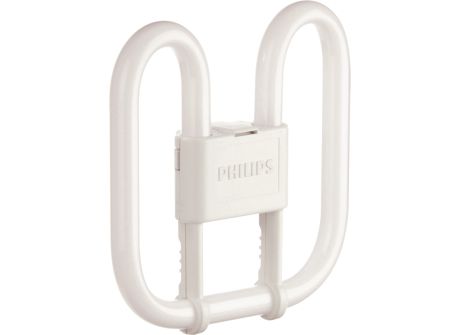

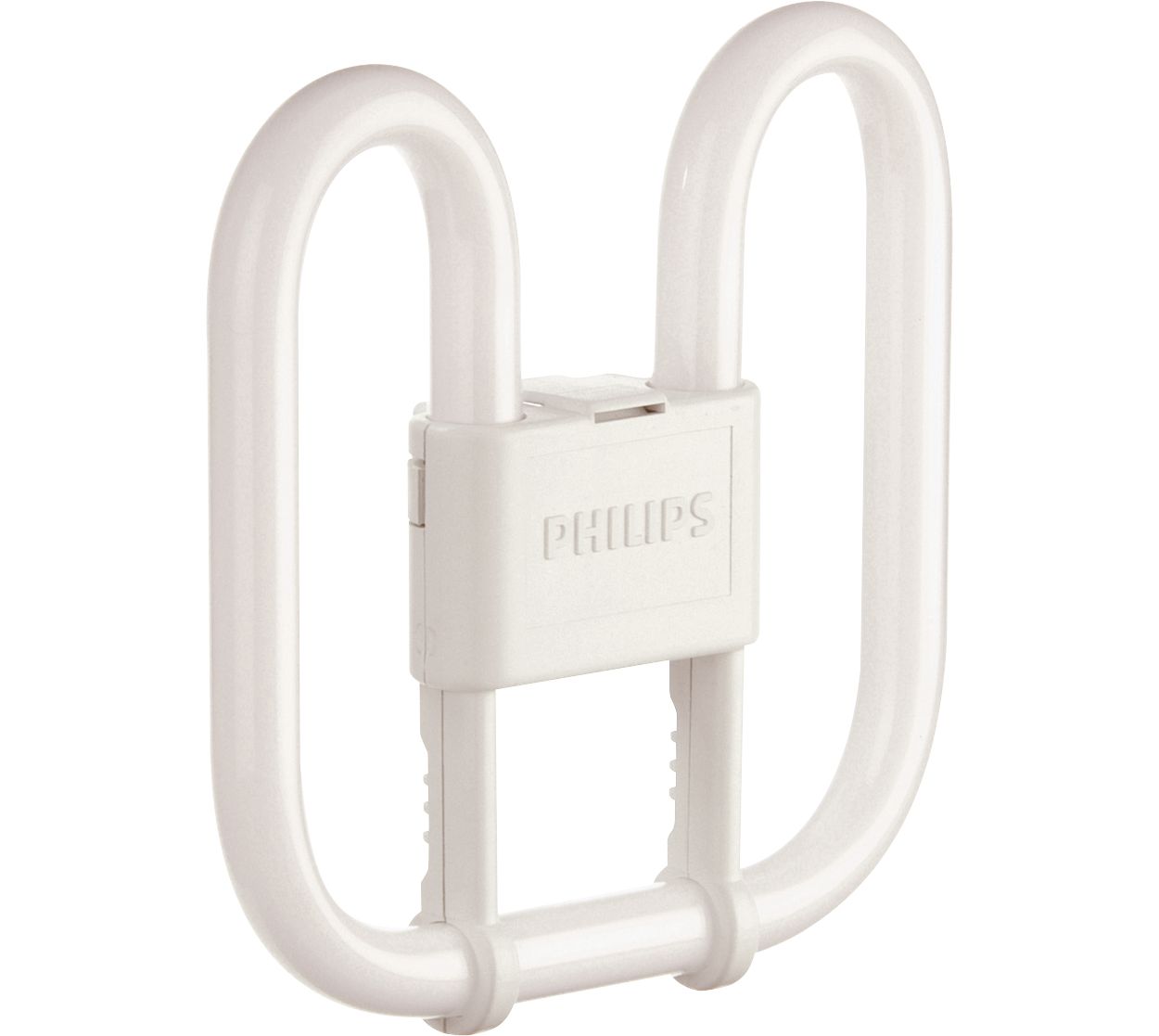

PL-Q 28W/840/4P 1CT/10BOX

Specifications Show all

General Information

Cap base	GR10Q  [ GR10q]
Life to 50% failures preheat (nom.)	13000 h
LSF Preheat 2000 h Rated	99 %
LSF Preheat 4000 h Rated	98 %
LSF Preheat 6000 h Rated	95 %
LSF Preheat 8000 h Rated	89 %
LSF Preheat 16000 h Rated	22 %
LSF Preheat 20000 h Rated	4 %

Light Technical

Colour code	841  [ CCT of 4100K (841)]
Luminous flux (nom.)	2050 lm
Luminous flux (rated) (nom.)	2050 lm
Colour designation	Cool White (CW)
Chromaticity coordinate X (nom.)	380
Chromaticity coordinate Y (nom.)	380
Correlated colour temperature (nom.)	4000 K
Luminous efficacy (rated) (nom.)	73.2 lm/W
Color rendering index (nom.)	82
LLMF 2000 h Rated	90 %
LLMF 4000 h Rated	86 %
LLMF 6000 h Rated	83 %
LLMF 8000 h Rated	80 %
LLMF 12000 h Rated	79 %
LLMF 16000 h Rated	78 %
LLMF 20000 h Rated	78 %

Operating and Electrical

Power (Rated) (Nom)	24.8 W
Lamp current (nom.)	0.320 A

Temperature

Design temperature (nom.)

25 °C

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap base information

4P

Approval and Application

Energy efficiency label (EEL)	A
Mercury (Hg) content (nom.)	4 mg
Energy Consumption kWh/1000 h	31 kWh

Product Data

Full product code	871150026993525
Order product name	PL-Q 28W/840/4P 1CT/10BOX
EAN/UPC – product	8711500269935
Order code	26993525
Numerator – quantity per pack	1
Numerator – packs per outer box	10
Material no. (12NC)	927939384040
Net weight (piece)	127.000 g
ILCOS Code	FSS-28/40/1B-E-GR10q
