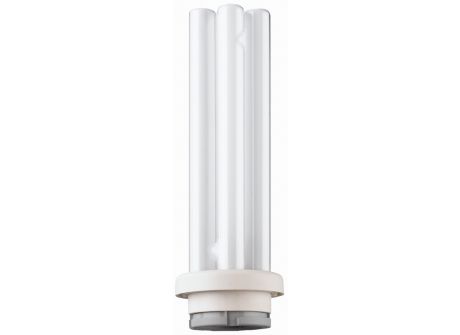

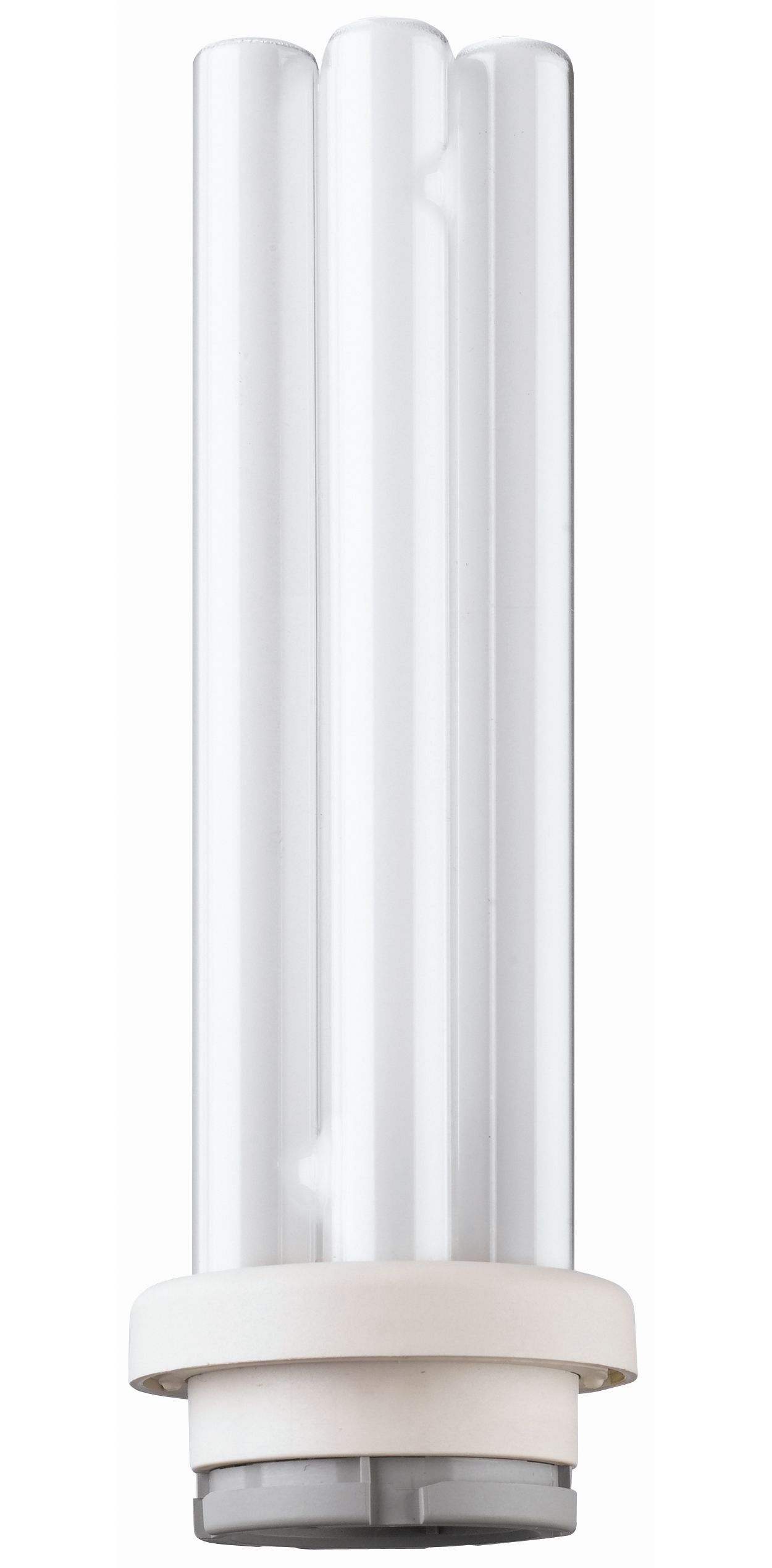

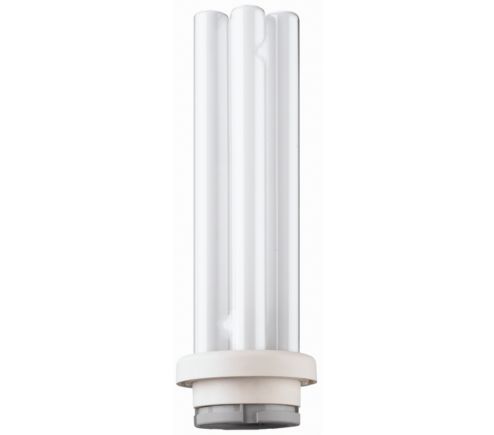

MASTER PL-R ECO 17W/840/4P 1CT/5X10BOX

Specifications Show all

General Information

Cap base	GR14Q-1  [ GR14q-1]
Life to 50% failures preheat (nom.)	24000 h
LSF Preheat 2000 h Rated	99 %
LSF Preheat 4000 h Rated	99 %
LSF Preheat 6000 h Rated	99 %
LSF Preheat 8000 h Rated	98 %
LSF Preheat 16000 h Rated	94 %
LSF Preheat 20000 h Rated	87 %

Light Technical

Colour code	841  [ CCT of 4100K (841)]
Luminous flux (nom.)	1500 lm
Luminous flux (rated) (nom.)	1250 lm
Colour designation	Cool White (CW)
Luminous efficacy (@ max. lumen, rated) (max.)	81 lm/W
Chromaticity coordinate X (nom.)	387
Chromaticity coordinate Y (nom.)	389
Correlated colour temperature (nom.)	4000 K
Luminous efficacy (rated) (nom.)	70 lm/W
Color rendering index (nom.)	82
LLMF 2000 h Rated	96 %
LLMF 4000 h Rated	94 %
LLMF 6000 h Rated	93 %
LLMF 8000 h Rated	92 %
LLMF 12000 h Rated	91 %
LLMF 16000 h Rated	90 %
LLMF 20000 h Rated	89 %

Operating and Electrical

Power (Rated) (Nom)	17.8 W
Lamp current (nom.)	0.150 A

Temperature

Design temperature (nom.)

35 °C

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap base information

4P

Approval and Application

Energy efficiency label (EEL)	A
Mercury (Hg) content (nom.)	1.4 mg
Energy Consumption kWh/1000 h	20 kWh

Product Data

Full product code	871150026604070
Order product name	MASTER PL-R Eco 17W/840/4P 1CT/5X10BOX
EAN/UPC – product	8711500266040
Order code	26604070
Numerator – quantity per pack	1
Numerator – packs per outer box	50
Material no. (12NC)	927910084050
Net weight (piece)	83.000 g
ILCOS Code	FSM6H-17/40/1B-L/P-GR14q=1
