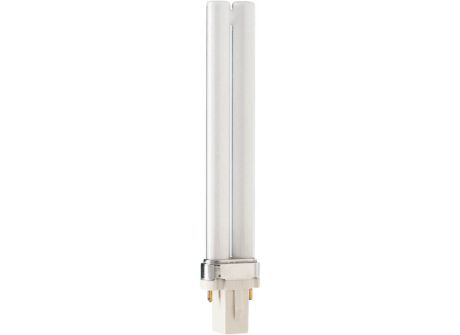

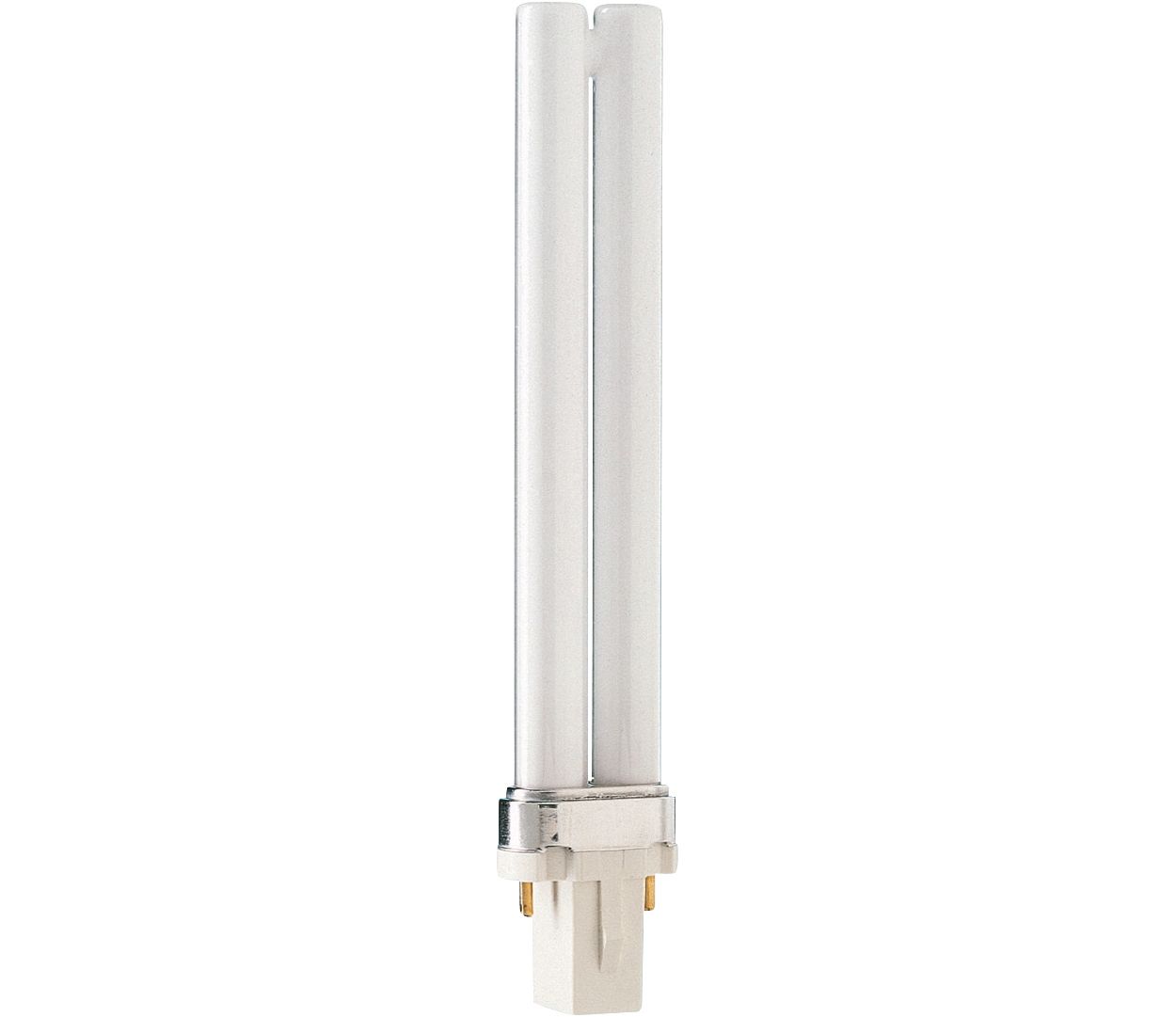

PL-S 9W/865/2P 1CT/25

Specifications Show all

General Information

Cap base	G23  [ G23]
Life to 50% failures (nom.)	8000 h

Light Technical

Colour code	865  [ CCT of 6500K]
Luminous flux (nom.)	600 lm
Colour designation	Cool Daylight
Lumen maintenance 2,000 hours (nom.)	85 %
Lumen maintenance 5,000 hours (nom.)	80 %
Chromaticity coordinate X (nom.)	313
Chromaticity coordinate Y (nom.)	337
Correlated colour temperature (nom.)	6500 K
Luminous efficacy (rated) (nom.)	63 lm/W
Color rendering index (nom.)	63

Operating and Electrical

Power (Rated) (Nom)	8.6 W
Lamp current (nom.)	0.170 A
Voltage (Nom)	60 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Cap base information

2P

Approval and Application

Energy efficiency label (EEL)	B
Mercury (Hg) content (nom.)	1.4 mg

Product Data

Full product code	871150063506800
Order product name	PL-S 9W/865/2P 1CT/25
EAN/UPC – product	8711500635068
Order code	63506800
Numerator – quantity per pack	1
Numerator – packs per outer box	25
Material no. (12NC)	927901786565
Net weight (piece)	0.032 kg
