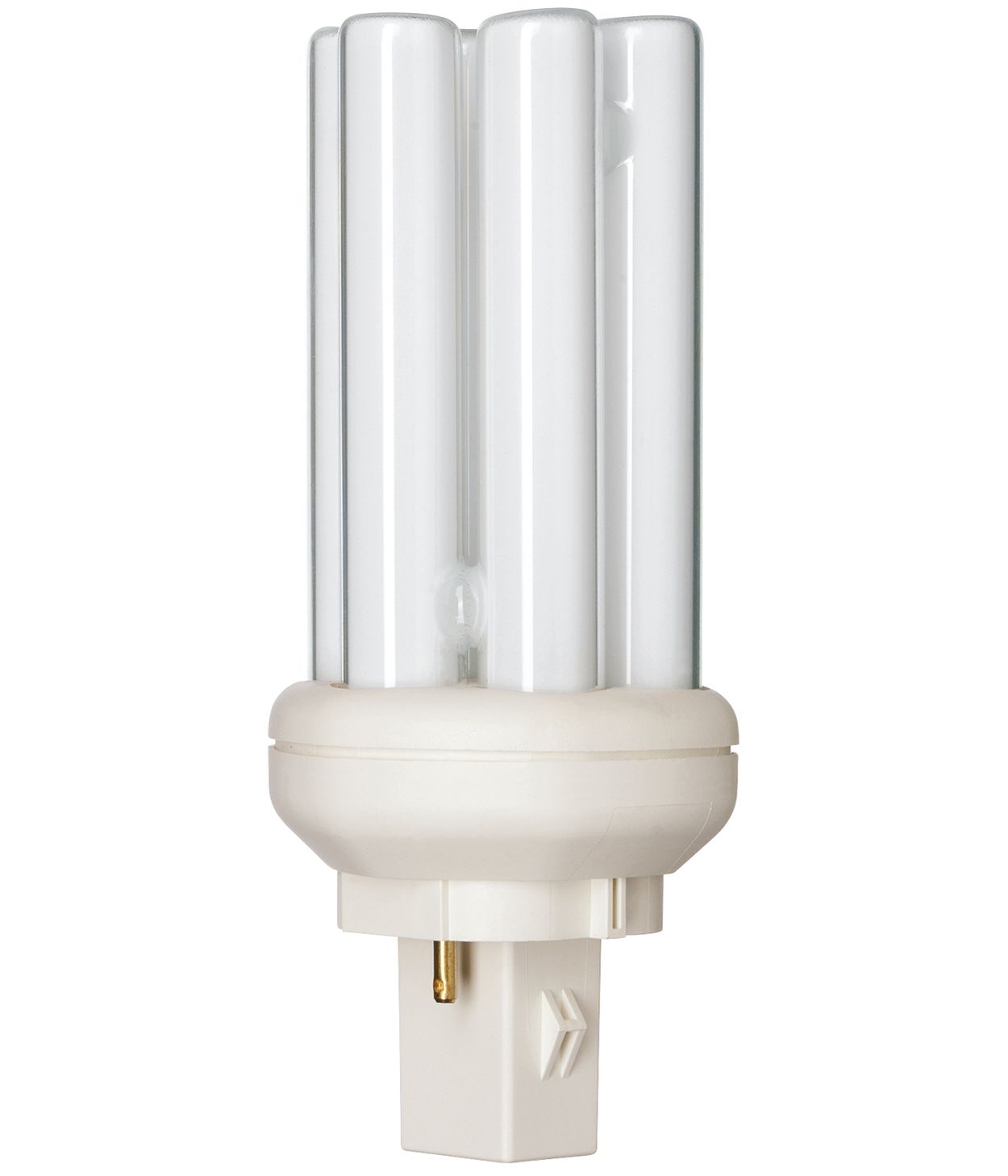

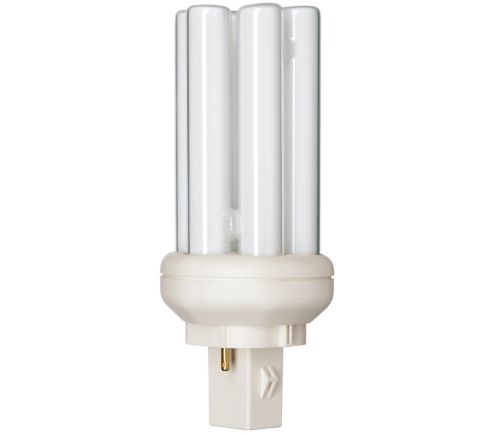

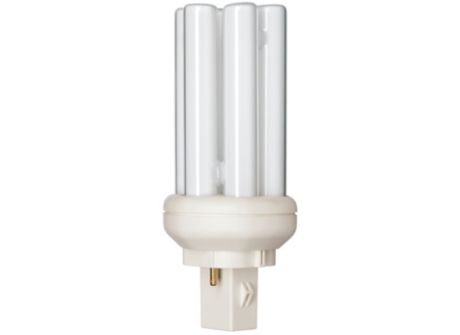

MASTER PL-T 13W/840/2P 1CT/5X10CC

Specifications Show all

General Information

Cap base	GX24D-1  [ GX24d-1]
Life to 10% failures (nom.)	6500 h
Life to 50% failures (nom.)	10000 h
LSF 2000 h Rated	99 %
LSF 4000 h Rated	98 %
LSF 6000 h Rated	92 %
LSF 8000 h Rated	78 %

Light Technical

Colour code	841  [ CCT of 4100K (841)]
Luminous flux (nom.)	900 lm
Luminous flux (rated) (nom.)	850 lm
Colour designation	Cool White (CW)
Chromaticity coordinate X (nom.)	380
Chromaticity coordinate Y (nom.)	379
Correlated colour temperature (nom.)	4000 K
Luminous efficacy (rated) (min.)	62 lm/W
Color rendering index (nom.)	82
LLMF 2000 h Rated	92 %
LLMF 4000 h Rated	87 %
LLMF 6000 h Rated	84 %
LLMF 8000 h Rated	81 %

Operating and Electrical

Power (Rated) (Nom)	13 W
Lamp current (nom.)	0.170 A

Temperature

Design temperature (nom.)

28 °C

Controls and Dimming

Dimmable

No

Mechanical and Housing

Cap base information

2P

Approval and Application

Energy efficiency label (EEL)	B
Mercury (Hg) content (nom.)	1.4 mg
Energy Consumption kWh/1000 h	17 kWh

Product Data

Full product code	871150055973970
Order product name	MASTER PL-T 13W/840/2P 1CT/5X10BOX
EAN/UPC – product	8711500559739
Order code	55973970
Numerator – quantity per pack	1
Numerator – packs per outer box	50
Material no. (12NC)	927914184071
Net weight (piece)	56.000 g
ILCOS Code	FSM-13/40/1B-I-GX24d=1
