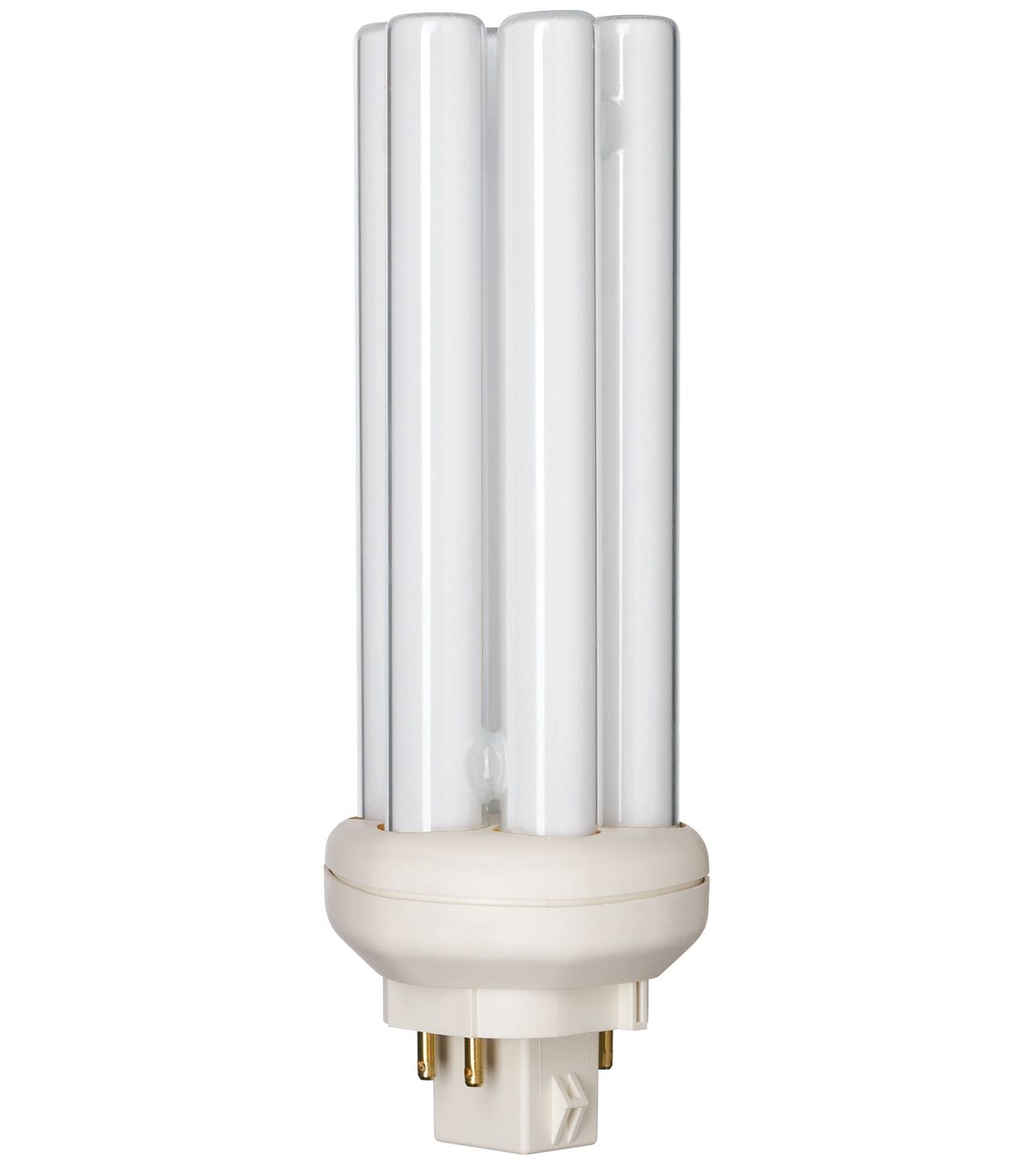

MASTER PL-T 32W/827/4P 1CT/5X10BOX

Specifications Show all

General Information

Cap base	GX24Q-3  [ GX24q-3]
Life to 50% failures preheat (nom.)	13000 h
LSF Preheat 2000 h Rated	99 %
LSF Preheat 4000 h Rated	98 %
LSF Preheat 6000 h Rated	97 %
LSF Preheat 8000 h Rated	90 %

Light Technical

Colour code	827  [ CCT of 2700K]
Luminous flux (nom.)	2400 lm
Luminous flux (rated) (nom.)	2400 lm
Colour designation	Incandescent White
Chromaticity coordinate X (nom.)	455
Chromaticity coordinate Y (nom.)	417
Correlated colour temperature (nom.)	2700 K
Luminous efficacy (rated) (min.)	75 lm/W
Color rendering index (nom.)	82
LLMF 2000 h Rated	92 %
LLMF 4000 h Rated	88 %
LLMF 6000 h Rated	86 %
LLMF 8000 h Rated	84 %
LLMF 12000 h Rated	81 %

Operating and Electrical

Power (Rated) (Nom)	32.0 W
Lamp current (nom.)	0.320 A

Temperature

Design temperature (nom.)

28 °C

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap base information

4P

Approval and Application

Energy efficiency label (EEL)	A
Mercury (Hg) content (nom.)	1.4 mg
Energy Consumption kWh/1000 h	35 kWh

Product Data

Full product code	871150055996870
Order product name	MASTER PL-T 32W/827/4P 1CT/5X10BOX
EAN/UPC – product	8711500559968
Order code	55996870
Numerator – quantity per pack	1
Numerator – packs per outer box	50
Material no. (12NC)	927914782771
Net weight (piece)	70.000 g
ILCOS Code	FSMH-32/27/1B-L/P-GX24q=3
