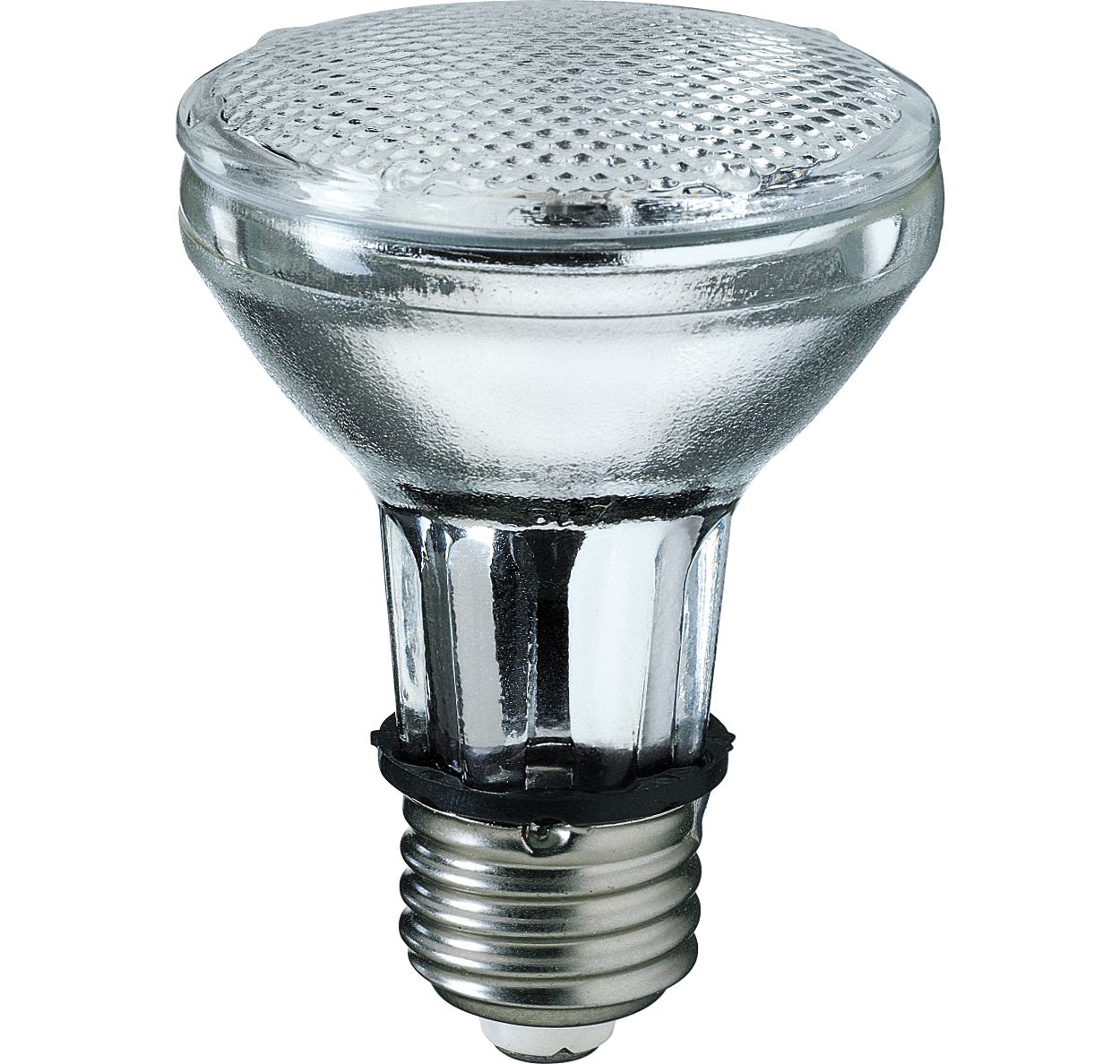

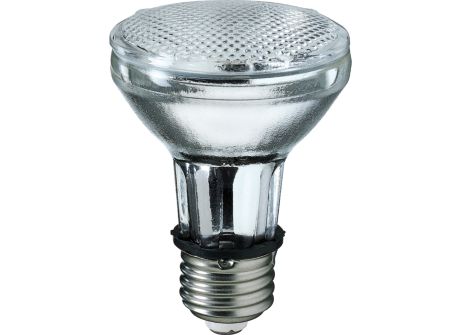

MASTERColour CDM-R 35W/830 E27 PAR20 30D 1CT

Specifications Show all

General Information

Cap base	E27  [ E27]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% failures (nom.)	5000 h
Life to 20% failures (nom.)	8000 h
Life to 50% failures (nom.)	8000 h
Switching cycle	800X

Light Technical

Colour code	830  [ CCT of 3000K]
Beam Angle (Nom)	30 °
Beam angle technical	30 °
Beam angle technical	37.5 °
Beam angle technical	22.5 °
Luminous flux (rated) (nom.)	1900 lm
Luminous intensity (nom.)	5300 cd
Beam description	Flood  [ Flood]
Colour designation	Warm White (WW)
Chromaticity coordinate X (nom.)	0.433
Chromaticity coordinate Y (nom.)	0.402
Correlated colour temperature (nom.)	3000 K
Color rendering index (nom.)	81
LLMF at end of nominal lifetime (nom.)	52 %
Luminous Flux In 90° Cone (Rated)	1650 lm

Operating and Electrical

Power (Rated) (Nom)	35.0 W
Lamp current (EM) (nom.)	0.53 A
Ignition supply voltage (max.)	198 V
Ignition peak voltage (max.)	5000 V
Ignition supply voltage (min.)	198 V
Re-ignition time (min.) (max.)	15 min
Warm-up time to 60% light (nom.)	120 s
Ignition time (max.)	30 s
Voltage (Max)	96 V
Voltage (Min)	80 V
Voltage (Nom)	88 V

Controls and Dimming

Dimmable	No
Run-up time 90% (max.)	3 min

Mechanical and Housing

Bulb finish

Clear (CL)

Approval and Application

Energy efficiency label (EEL)	A
Mercury (Hg) content (nom.)	2.8 mg
Energy Consumption kWh/1000 h	42 kWh

Luminaire Design Requirements

Bulb temperature (max.)	300 °C
Cap base temperature (max.)	200 °C

Product Data

Full product code	871150021184200
Order product name	MASTERColour CDM-R 35W/830 E27 PAR20 30D 1CT
EAN/UPC – product	8711500211842
Order code	21184200
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	928084000691
Net weight (piece)	0.111 kg
ILCOS Code	MRS/UB-35/830-H-E27-63.5/96/30
