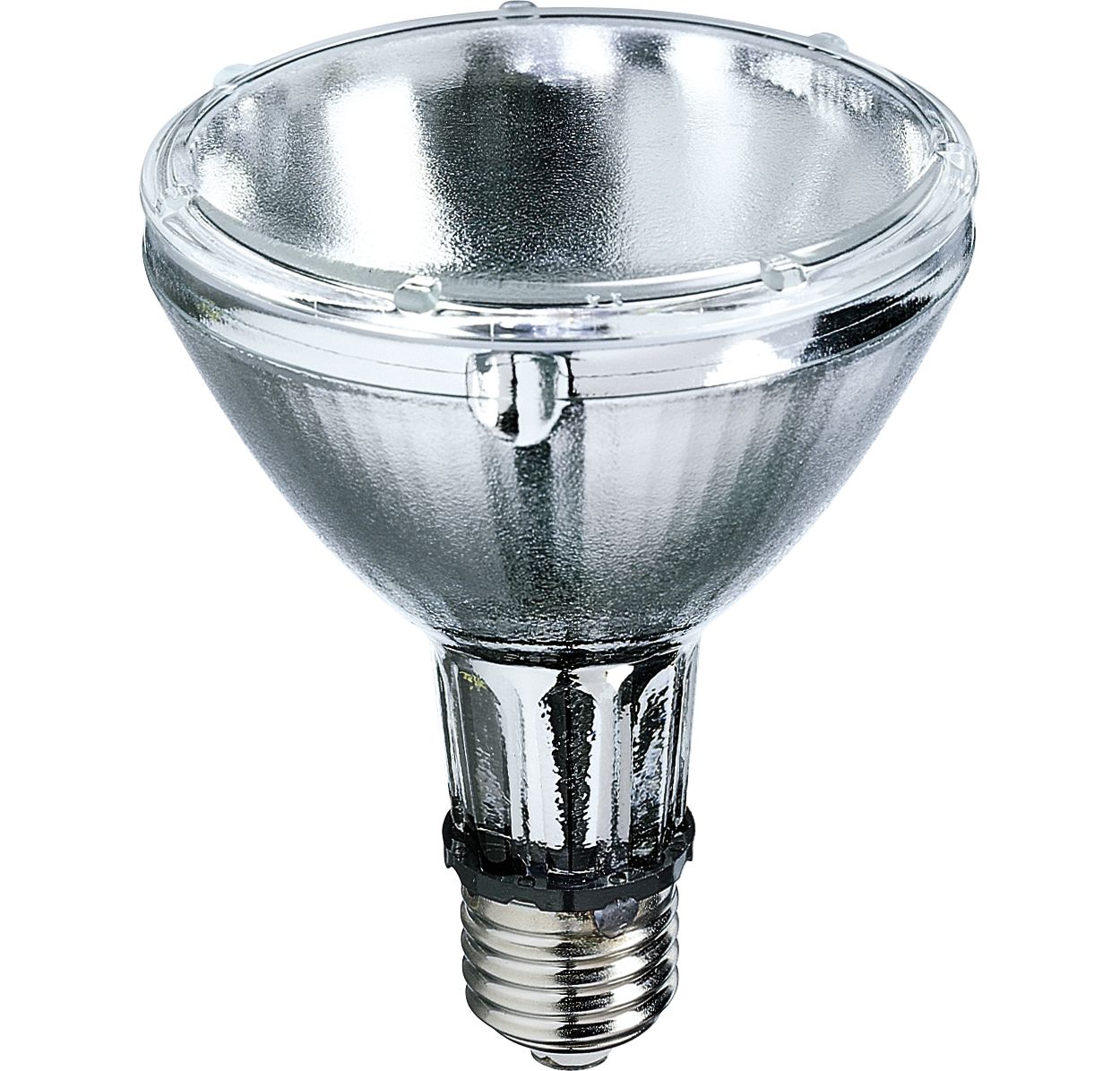

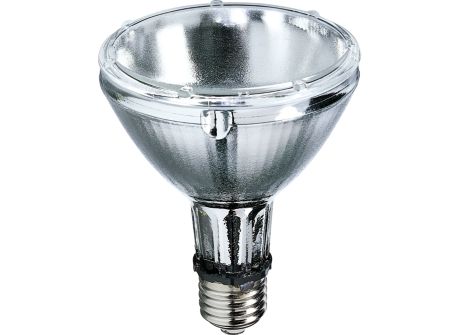

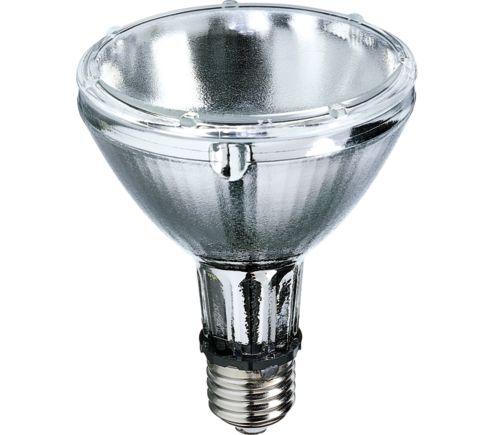

MASTERColour CDM-R 70W/942 E27 PAR30L 10D 1CT

Specifications Show all

General Information

Cap base	E27  [ E27]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% failures (nom.)	5000 h
Life to 20% failures (nom.)	8000 h
Life to 50% failures (nom.)	12000 h
Switching cycle	1050X

Light Technical

Colour code	942  [ CCT of 4200K]
Beam Angle (Nom)	10 °
Beam angle technical	9.50 °
Beam angle technical	11.9 °
Beam angle technical	7.1 °
Luminous flux (rated) (nom.)	4300 lm
Luminous intensity (nom.)	60000 cd
Beam description	Spot
Colour designation	Cool White (CW)
Chromaticity coordinate X (nom.)	0.371
Chromaticity coordinate Y (nom.)	0.366
Correlated colour temperature (nom.)	4200 K
Color rendering index (nom.)	93
LLMF at end of nominal lifetime (nom.)	61 %
Luminous Flux In 90° Cone (Rated)	4000 lm

Operating and Electrical

Power (Rated) (Nom)	73 W
Ignition supply voltage (max.)	198 V
Ignition peak voltage (max.)	5000 V
Ignition supply voltage (min.)	198 V
Re-ignition time (min.) (max.)	15 min
Warm-up time to 60% light (nom.)	120 s
Ignition time (max.)	30 s
Voltage (Max)	100 V
Voltage (Min)	75 V
Voltage (Nom)	88 V

Controls and Dimming

Dimmable	No
Run-up time 90% (max.)	3 min

Mechanical and Housing

Bulb finish

Clear (CL)

Approval and Application

Energy efficiency label (EEL)	A
Mercury (Hg) content (nom.)	6.6 mg
Energy Consumption kWh/1000 h	80 kWh

Luminaire Design Requirements

Bulb temperature (max.)	300 °C
Cap base temperature (max.)	200 °C

Product Data

Full product code	871150021176700
Order product name	MASTERColour CDM-R 70W/942 E27 PAR30L 10D 1CT
EAN/UPC – product	8711500211767
Order code	21176700
Numerator – quantity per pack	1
Numerator – packs per outer box	6
Material no. (12NC)	928089300691
Net weight (piece)	0.225 kg
ILCOS Code	MRS/UB-70/942-H-E27-95/125/10
