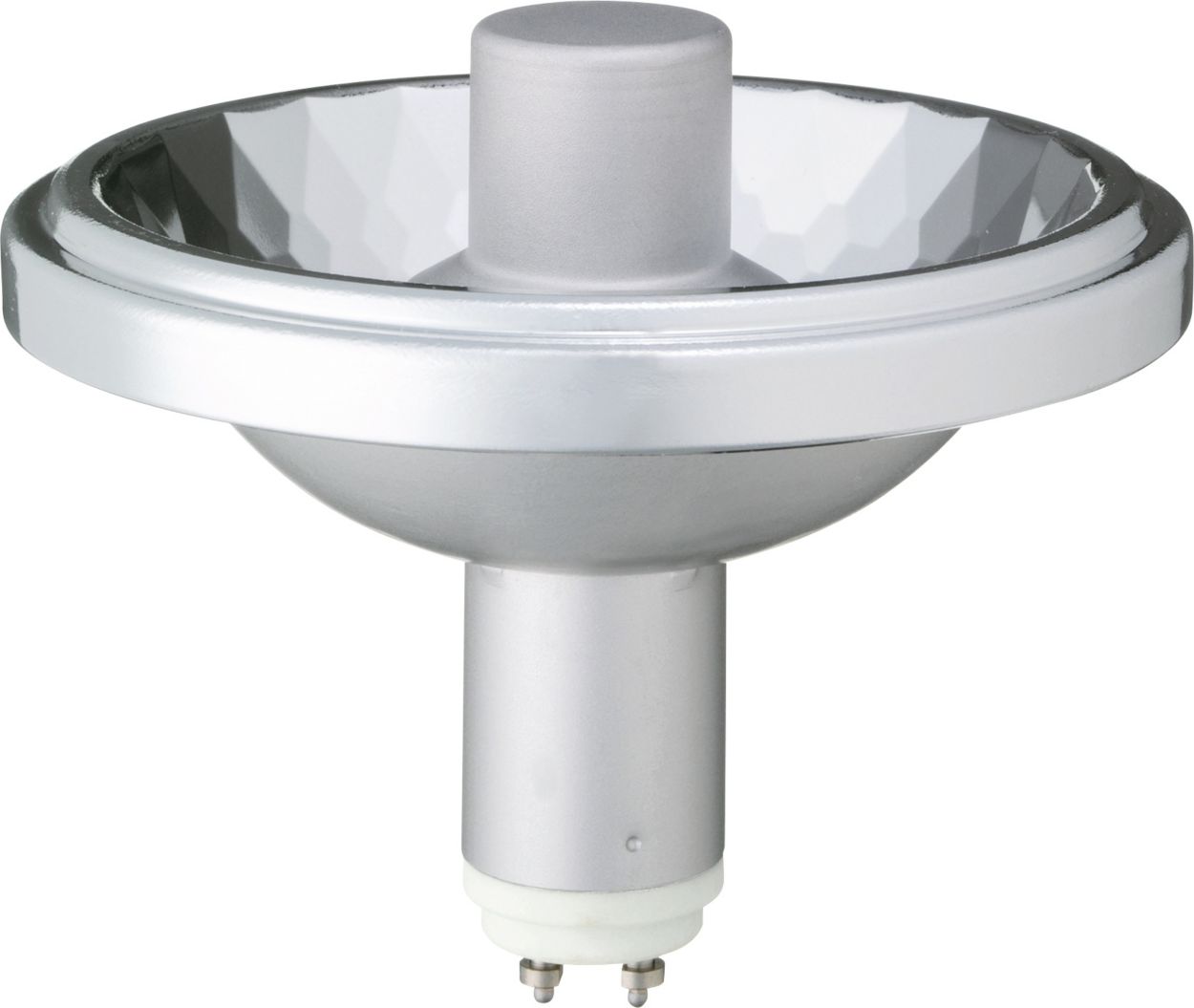

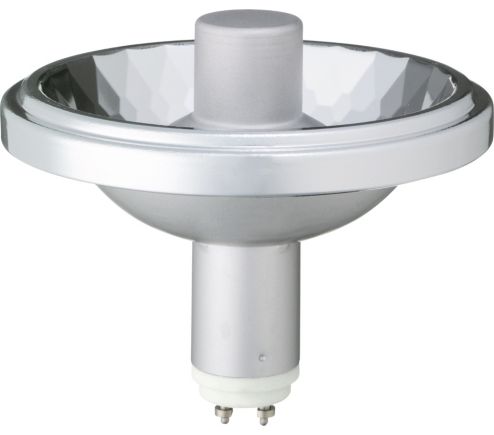

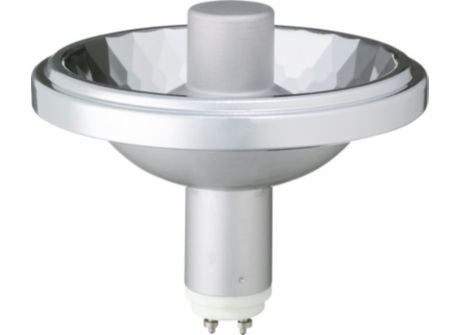

CDM-R111 35W/942 24D.1CT/6

Specifications Show all

General Information

Cap base	GX8.5  [ GX8.5]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% failures (nom.)	6000 h
Life to 10% failures (nom.)	6500 h
Life to 20% failures (nom.)	7000 h
Life to 50% failures (nom.)	9000 h
ANSI code HID	M130/O
Switching cycle	800X

Light Technical

Colour code	942  [ CCT of 4200K]
Beam Angle (Nom)	24 °
Beam angle technical	23 °
Beam angle technical	28 °
Beam angle technical	18 °
Luminous flux (rated) (nom.)	1350 lm
Luminous intensity (min.)	5700 cd
Luminous intensity (nom.)	7500 cd
Beam description	Narrow Flood
Colour designation	Cool White (CW)
Chromaticity coordinate X (nom.)	0.370
Chromaticity coordinate Y (nom.)	0.365
Correlated colour temperature (nom.)	4200 K
Color rendering index (nom.)	93
LLMF at end of nominal lifetime (nom.)	65 %
Luminous Flux In 90° Cone (Rated)	1300 lm

Operating and Electrical

Power (Rated) (Nom)	39 W
Ignition supply voltage (max.)	198 V
Ignition supply voltage (min.)	198 V
Re-ignition time (min.) (max.)	15 min
Warm-up time to 60% light (nom.)	120 s
Ignition time (max.)	30 s
Voltage (Max)	94 V
Voltage (Min)	78 V
Voltage (Nom)	86 V

Controls and Dimming

Dimmable	No
Run-up time 90% (max.)	3 min

Mechanical and Housing

Bulb finish

Reflector

Approval and Application

Energy efficiency label (EEL)	B
Mercury (Hg) content (nom.)	3.0 mg
Energy Consumption kWh/1000 h	43 kWh

UV

PET (NIOSH) (min.)	8 h/500lx
Damage factor D/fc (max.)	0.4

Product Data

Full product code	871150021387710
Order product name	MASTERColour CDM-R111 35W/942 GX8.5 24D 1CT
EAN/UPC – product	8711500213877
Order code	21387710
Numerator – quantity per pack	1
Numerator – packs per outer box	6
Material no. (12NC)	928096505330
Net weight (piece)	0.095 kg
ILCOS Code	MRS/UB-35/942-H-GX8.5-111/88/24
