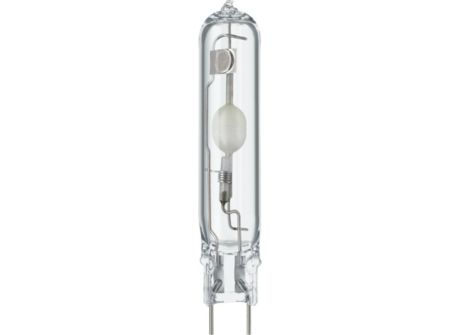

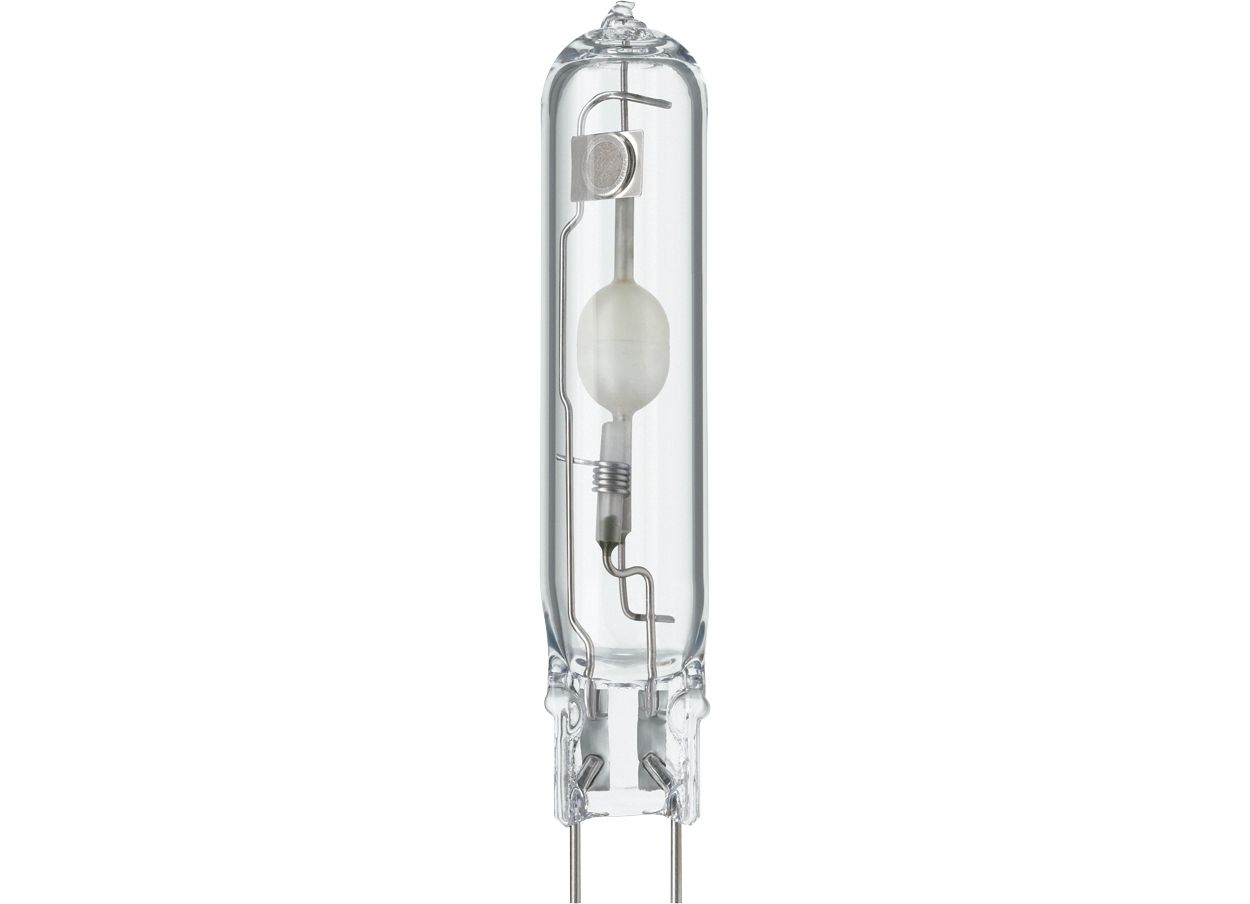

MASTERColour CDM-TC Elite 50W/942 G8.5 1CT

Specifications Show all

General Information

Cap base	G8.5  [ G8.5]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% failures (nom.)	9000 h
Life to 10% failures (nom.)	10000 h
Life to 20% failures (nom.)	12000 h
Life to 50% failures (nom.)	15000 h
ANSI code HID	-

Light Technical

Colour code	942  [ CCT of 4200K]
Luminous flux (rated) (nom.)	5100 lm
Colour designation	Cool White (CW)
Lumen maintenance 12,000 hours (nom.)	84 %
Lumen maintenance 10,000 hours (nom.)	85 %
Lumen maintenance 2,000 hours (nom.)	92 %
Lumen maintenance 5,000 hours (nom.)	89 %
Chromaticity coordinate X (nom.)	0.367
Chromaticity coordinate Y (nom.)	0.362
Correlated colour temperature (nom.)	4200 K
Luminous efficacy (rated) (nom.)	102 lm/W
Color rendering index (min.)	87
Color rendering index (nom.)	90

Operating and Electrical

Power (Rated) (Nom)	50.0 W
Re-ignition time (min.) (max.)	15 min
Ignition time (max.)	30 s
Voltage (Max)	99 V
Voltage (Min)	87 V
Voltage (Nom)	93 V

Controls and Dimming

Dimmable	No
Run-up time 90% (max.)	3 min

Mechanical and Housing

Bulb finish

Clear (CL)

Approval and Application

Energy efficiency label (EEL)	A+
Mercury (Hg) content (nom.)	5.7 mg
Energy Consumption kWh/1000 h	55 kWh

UV

PET (NIOSH) (min.)	8 h/500lx
Damage factor D/fc (max.)	0.5

Luminaire Design Requirements

Bulb temperature (max.)	550 °C
Pinch temperature (max.)	350 °C

Product Data

Full product code	871829120163200
Order product name	MASTERColour CDM-TC Elite 50W/942 G8.5 1CT
EAN/UPC – product	8718291201632
Order code	20163200
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	928080115131
Net weight (piece)	10.000 g
ILCOS Code	MT/UB-50/942-H-G8.5-17/85
