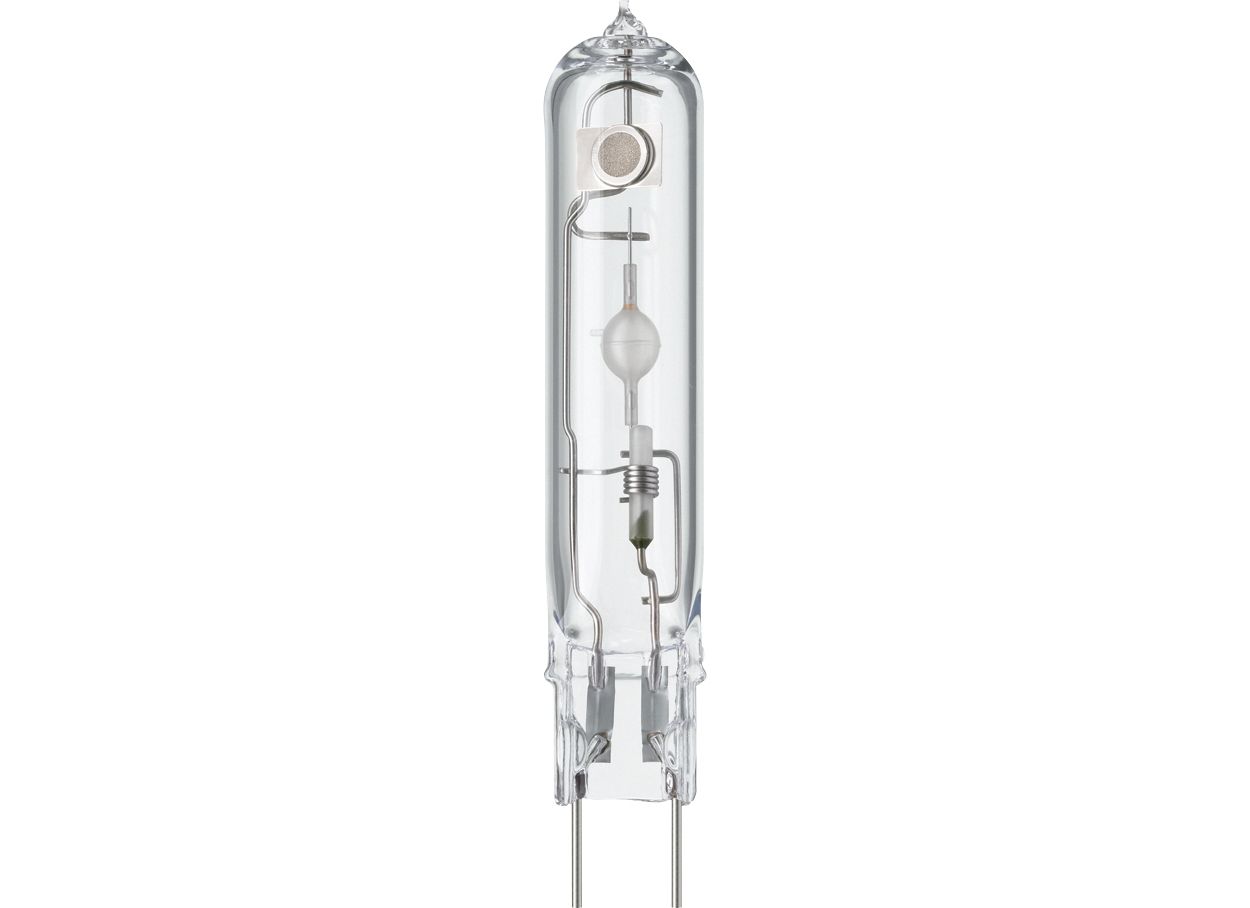

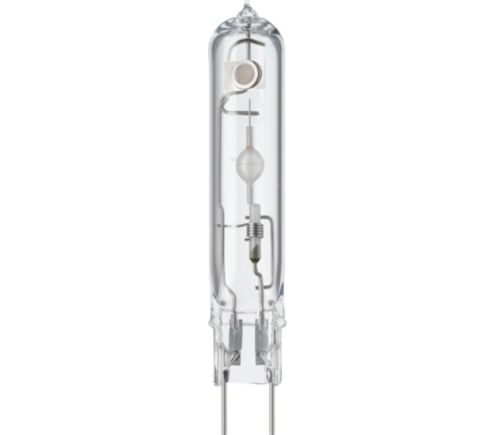

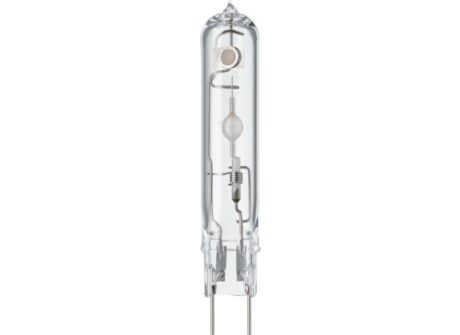

MASTERColour CDM-TC Evolution 20W/930 G8.5

Specifications Show all

General Information

Cap base	G8.5  [ G8.5]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% failures (nom.)	16000 h
Life to 10% failures (nom.)	18000 h
Life to 20% failures (nom.)	20000 h
Life to 50% failures (nom.)	25000 h
ANSI code HID	C156/E

Light Technical

Colour code	930  [ CCT of 3000K]
Luminous flux (rated) (nom.)	2050 lm
Colour designation	Warm White (WW)
Lumen maintenance 1,000 hours (nom.)	96 %
Lumen maintenance 12,000 hours (nom.)	81 %
Lumen maintenance 2,000 hours (nom.)	93 %
Lumen maintenance 20,000 hours	77 %
Lumen maintenance 4,000 hours (nom.)	89 %
Chromaticity coordinate X (nom.)	0.43
Chromaticity coordinate Y (nom.)	0.393
Correlated colour temperature (nom.)	3000 K
Luminous efficacy (rated) (nom.)	102 lm/W
Color rendering index (min.)	87
Color rendering index (nom.)	90

Operating and Electrical

Power (Rated) (Nom)	20 W
Lamp current run-up (max.)	0.5 A
Re-ignition time (min.) (max.)	15 min
Ignition time (max.)	30 s
Voltage (Max)	110 V
Voltage (Min)	100 V
Voltage (Nom)	105 V

Controls and Dimming

Dimmable	No
Run-up time 90% (max.)	3 min

Mechanical and Housing

Bulb finish

Clear (CL)

Approval and Application

Energy efficiency label (EEL)	A+
Mercury (Hg) content (nom.)	3.0 mg
Energy Consumption kWh/1000 h	22 kWh

UV

PET (NIOSH) (min.)	8 h/500lx
Damage factor D/fc (max.)	0.4

Luminaire Design Requirements

Bulb temperature (max.)	320 °C
Pinch temperature (max.)	300 °C

Product Data

Full product code	871829165920400
Order product name	MASTERColour CDM-TC Evolution 20W/930 G8.5
EAN/UPC – product	8718291659204
Order code	65920400
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	928064805131
Net weight (piece)	0.009 kg
ILCOS Code	MT/UB-20/930-H-G8.5-17/85
