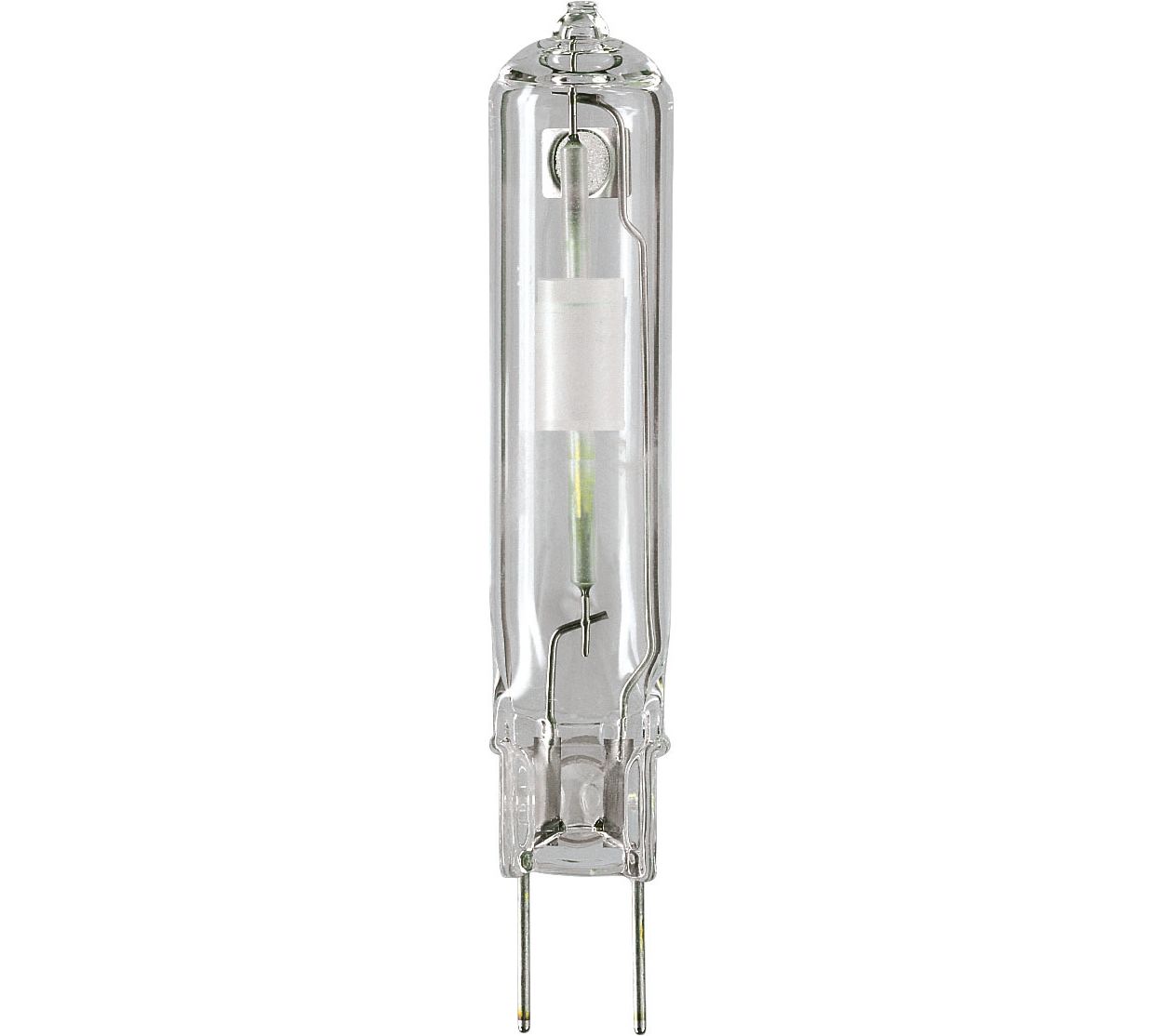

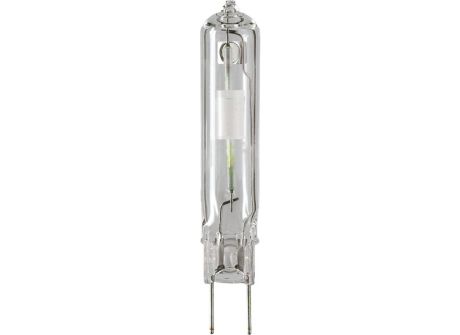

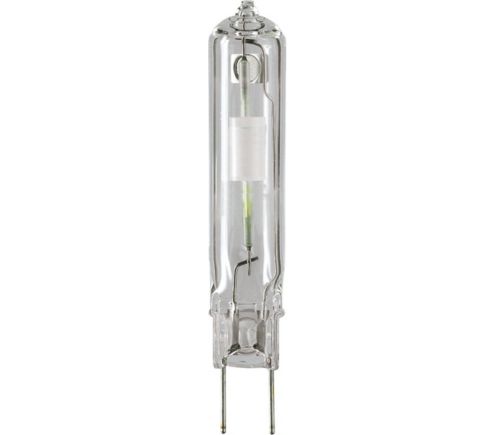

MASTERColour CDM-TC 70W/842 G8.5 1CT/12

Specifications Show all

General Information

Cap base	G8.5  [ G8.5]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% failures (nom.)	9000 h
Life to 10% failures (nom.)	8000 h
Life to 20% failures (nom.)	9000 h
Life to 50% failures (nom.)	12000 h
ANSI code HID	-

Light Technical

Colour code	842  [ CCT of 4200K]
Luminous flux (rated) (nom.)	5800 lm
Colour designation	Cool White (CW)
Lumen maintenance 10,000 hours (nom.)	65 %
Lumen maintenance 2,000 hours (min.)	70 %
Lumen maintenance 2,000 hours (nom.)	80 %
Lumen maintenance 5,000 hours (min.)	65 %
Lumen maintenance 5,000 hours (nom.)	75 %
Chromaticity coordinate X (nom.)	0.362
Chromaticity coordinate Y (nom.)	0.363
Correlated colour temperature (nom.)	4200 K
Luminous efficacy (rated) (nom.)	79 lm/W
Color rendering index (nom.)	89

Operating and Electrical

Power (Rated) (Min)	73.0 W
Power (Rated) (Nom)	70 W
Re-ignition time (min.) (max.)	15 min
Ignition time (max.)	30 s
Voltage (Max)	93 V
Voltage (Min)	83 V
Voltage (Nom)	88 V

Controls and Dimming

Dimmable	No
Run-up time 90% (max.)	3 min

Mechanical and Housing

Bulb finish	Clear (CL)
Bulb material	UV-Block Quartz

Approval and Application

Energy efficiency label (EEL)	A
Mercury (Hg) content (nom.)	7 mg
Energy Consumption kWh/1000 h	80 kWh

UV

PET (NIOSH) (min.)	8 h/500lx
Damage factor D/fc (max.)	0.5

Luminaire Design Requirements

Bulb temperature (max.)	700 °C
Pinch temperature (max.)	300 °C

Product Data

Full product code	871869648465400
Order product name	MASTERColour CDM-TC 70W/842 G8.5 1CT/12
EAN/UPC – product	8718696484654
Order code	48465400
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	928094605129
Net weight (piece)	10.000 g
ILCOS Code	MT/UB-70/842-H-G8.5-17/85
