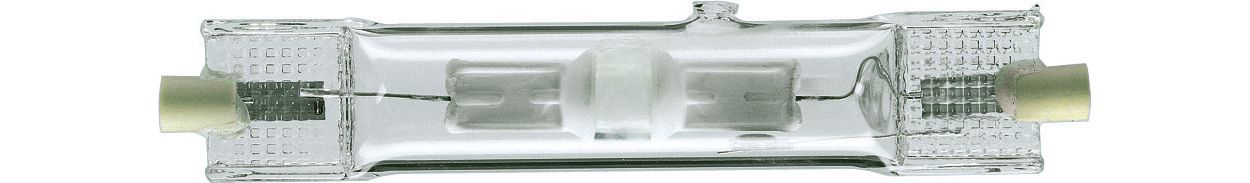

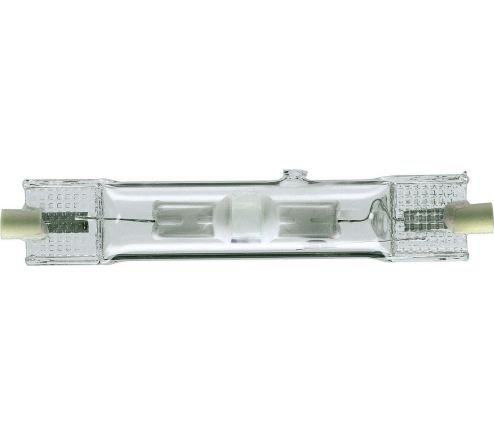

MHN-TD 70W/842 RX7s 1CT/12

Specifications Show all

General Information

Cap base	RX7S  [ RX7s]
Operating position	P45  [ Parallel +/-45D or Horizontal(HOR)]
Life to 5% failures (min.)	4000 h
Life to 5% failures (nom.)	5000 h
Life to 20% failures (min.)	6500 h
Life to 20% failures (nom.)	8000 h
Life to 50% failures (min.)	8500 h
Life to 50% failures (nom.)	10500 h
ANSI code HID	M85/E
Footnotes HID 1	Color characteristics may vary somewhat from one lamp type to another. Time should be allowed for the lamp to stabilize in color when it is turned on for the first time or if for any reason its operating position is changed. This may require several hours' operation, with more than one start. Lamp color and output may change temporarily if the lamp is subjected to excess vibration or shock. Lamp color characteristics may change after long accumulate operating time.
Footnotes HID 2	Supply volts must be +/- 5% of rated ballast line volts for reactor type and +/- 10% for CWA or electronic ballasts.

Light Technical

Colour code	842  [ CCT of 4200K]
Luminous flux (rated) (min.)	5000 lm
Luminous flux (rated) (nom.)	5700 lm
Colour designation	Cool White (CW)
Lumen maintenance 10,000 hours (min.)	40 %
Lumen maintenance 10,000 hours (nom.)	75 %
Lumen maintenance 2,000 hours (min.)	79 %
Lumen maintenance 2,000 hours (nom.)	85 %
Lumen maintenance 5,000 hours (min.)	68 %
Lumen maintenance 5,000 hours (nom.)	80 %
Chromaticity coordinate X (nom.)	370
Chromaticity coordinate Y (nom.)	370
Correlated colour temperature (nom.)	4200 K
Luminous efficacy (rated) (nom.)	76 lm/W
Color rendering index (nom.)	80

Operating and Electrical

Power (Rated) (Nom)	75.0 W
Lamp current run-up (max.)	1.35 A
Lamp current (EM) (nom.)	1.0 A
Ignition supply voltage (max.)	198 V
Ignition peak voltage (max.)	5000 V
Ignition supply voltage (min.)	198 V
Ignition peak voltage (min.)	1800 V
Voltage (Max)	100 V
Voltage (Min)	80 V
Voltage (Nom)	90 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb finish	Clear (CL)
Cap base information	na  [ -]

Approval and Application

Energy efficiency label (EEL)	A
Mercury (Hg) content (nom.)	11 mg
Energy Consumption kWh/1000 h	82 kWh

Luminaire Design Requirements

Bulb temperature (max.)	500 °C
Pinch temperature (max.)	280 °C

Product Data

Full product code	871829121532500
Order product name	MHN-TD 70W/842 RX7s 1CT/12
EAN/UPC – product	8718291215325
Order code	21532500
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	928070205190
Net weight (piece)	0.028 kg
ILCOS Code	MD/UB-70/842-H-RX7s-22/117.6
