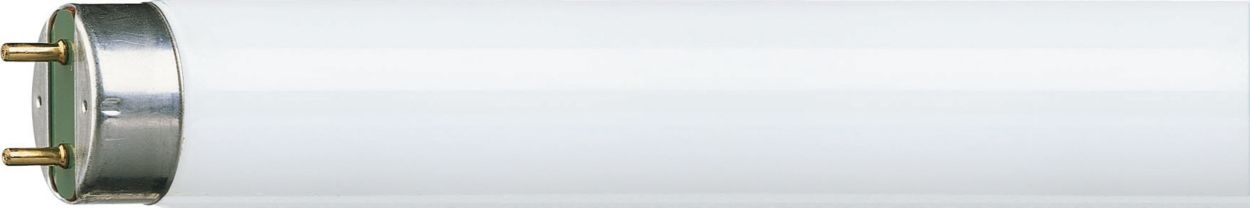

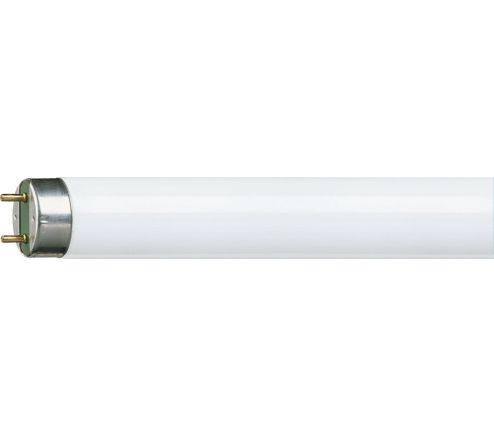

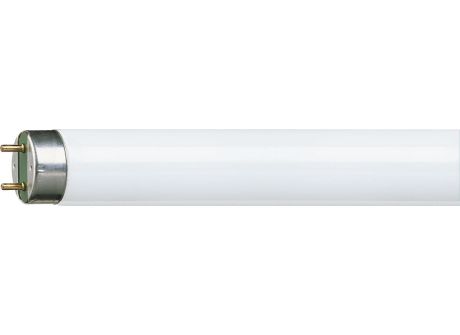

MASTER TL-D HF Super 80 32W/830 1SL/25

Specifications Show all

General Information

Cap base	G13  [ Medium Bi-Pin Fluorescent]
Life to 50% failures preheat (nom.)	20000 h
System description	High Frequency  [ High Frequency (HF)]
LSF Preheat 2000 h Rated	99 %
LSF Preheat 4000 h Rated	99 %
LSF Preheat 6000 h Rated	99 %
LSF Preheat 8000 h Rated	99 %
LSF Preheat 16000 h Rated	95 %
LSF Preheat 20000 h Rated	50 %

Light Technical

Colour code	830  [ CCT of 3000K]
Luminous flux (nom.)	3200 lm
Luminous flux (rated) (nom.)	3200 lm
Colour designation	Warm White (WW)
Chromaticity coordinate X (nom.)	444
Chromaticity coordinate Y (nom.)	410
Correlated colour temperature (nom.)	3000 K
Luminous efficacy (rated) (nom.)	100 lm/W
Color rendering index (nom.)	>80
LLMF 2000 h Rated	96 %
LLMF 4000 h Rated	95 %
LLMF 6000 h Rated	94 %
LLMF 8000 h Rated	93 %
LLMF 12000 h Rated	92 %
LLMF 16000 h Rated	91 %
LLMF 20000 h Rated	90 %

Operating and Electrical

Power (Rated) (Nom)	32.0 W
Lamp current (nom.)	0.255 A

Temperature

Design temperature (nom.)

25 °C

Controls and Dimming

Dimmable

Yes

Approval and Application

Energy efficiency label (EEL)	A+
Mercury (Hg) content (nom.)	2.0 mg
Energy Consumption kWh/1000 h	38 kWh

Product Data

Full product code	871150063150340
Order product name	MASTER TL-D HF Super 80 32W/830 SLV/25
EAN/UPC – product	8711500631503
Order code	63150340
Numerator – quantity per pack	1
Numerator – packs per outer box	25
Material no. (12NC)	927924583023
Net weight (piece)	135.000 g
ILCOS Code	FDH-32/30/1B-L/P-G13-26/1200
