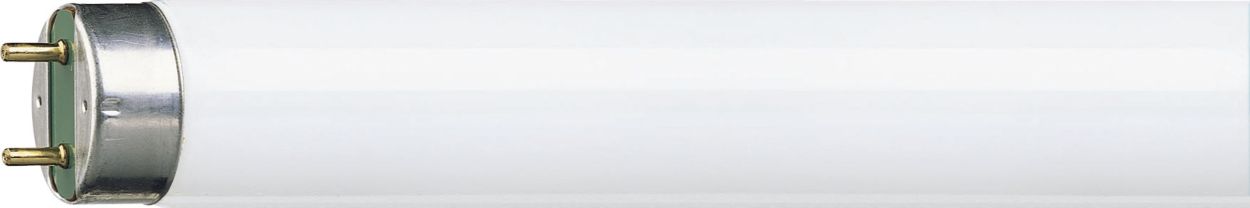

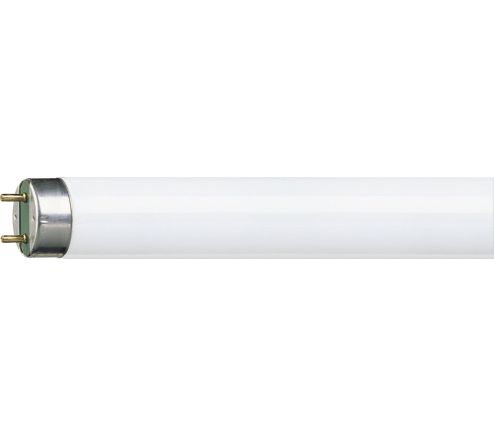

MASTER TL-D Reflex 58W/840 1SL/25

Specifications Show all

General Information

Cap base	G13  [ Medium Bi-Pin Fluorescent]
Life to 10% failures (nom.)	12000 h
Life to 50% failures (nom.)	15000 h
Life to 50% failures preheat (nom.)	20000 h
LSF 2000 h Rated	99 %
LSF 4000 h Rated	99 %
LSF 6000 h Rated	99 %
LSF 8000 h Rated	99 %
LSF 12000 h Rated	89 %
LSF 16000 h Rated	33 %
LSF 20000 h Rated	2 %

Light Technical

Colour code	841  [ CCT of 4100K (841)]
Luminous flux (nom.)	5240 lm
Luminous flux (rated) (nom.)	5240 lm
Beam description	FA160  [ 160° Window]
Colour designation	Cool White (CW)
Chromaticity coordinate X (nom.)	376
Chromaticity coordinate Y (nom.)	374
Correlated colour temperature (nom.)	4000 K
Luminous efficacy (rated) (nom.)	89.6 lm/W
Color rendering index (nom.)	>80
LLMF 2000 h Rated	96 %
LLMF 4000 h Rated	95 %
LLMF 6000 h Rated	94 %
LLMF 8000 h Rated	93 %
LLMF 12000 h Rated	92 %
LLMF 16000 h Rated	91 %
LLMF 20000 h Rated	90 %

Operating and Electrical

Power (Rated) (Nom)	58.5 W
Lamp current (nom.)	0.670 A

Temperature

Design temperature (nom.)

25 °C

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb finish	Reflector
Cap base information	na  [ -]

Approval and Application

Energy efficiency label (EEL)	A
Mercury (Hg) content (nom.)	5.0 mg
Energy Consumption kWh/1000 h	68 kWh

Product Data

Full product code	871150055962340
Order product name	MST TL-D Reflex 58W/840 1 SLV/25
EAN/UPC – product	8711500559623
Order code	55962340
Numerator – quantity per pack	1
Numerator – packs per outer box	25
Material no. (12NC)	928048908479
Net weight (piece)	167.000 g
ILCOS Code	FDR-58/40/1B-E-G13
