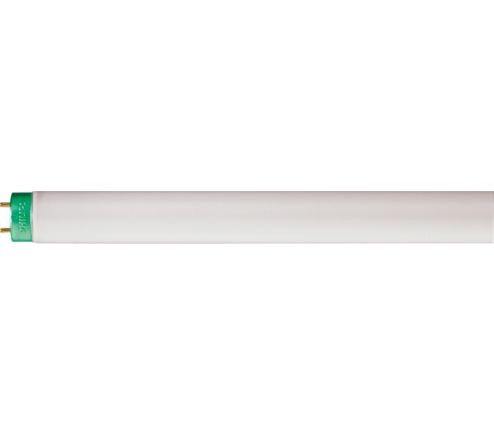

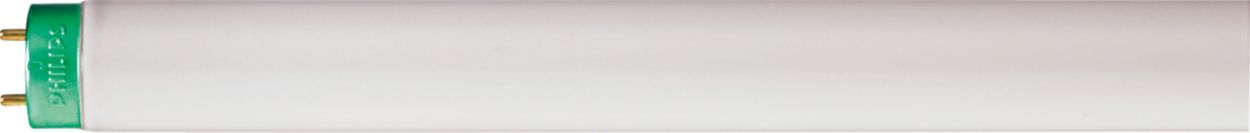

TL-D 18W/865 1SL/25

Specifications Show all

General Information

Cap base	G13  [ Medium Bi-Pin Fluorescent]
Life to 10% failures (nom.)	10000 h
Life to 50% failures (nom.)	13000 h
Life to 50% failures preheat (nom.)	20000 h

Light Technical

Colour code	865  [ CCT of 6500K]
Luminous flux (rated) (nom.)	1275 lm
Colour designation	Cool Daylight
Lumen maintenance 2,000 hours (nom.)	96 %
Lumen maintenance 5,000 hours (nom.)	94 %
Chromaticity coordinate X (nom.)	313
Chromaticity coordinate Y (nom.)	338
Correlated colour temperature (nom.)	6500 K
Luminous efficacy (rated) (nom.)	71 lm/W
Color rendering index (nom.)	80

Operating and Electrical

Power (Rated) (Nom)	18 W
Lamp current (nom.)	0.360 A
Voltage (Nom)	59 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap base information

Green  [ Green Cap]

Approval and Application

Energy efficiency label (EEL)	A
Mercury (Hg) content (nom.)	2.0 mg

Product Data

Full product code	871150028562100
Order product name	TL-D 18W/865 1SL/25
EAN/UPC – product	8711500285621
Order code	28562100
Numerator – quantity per pack	1
Numerator – packs per outer box	25
Material no. (12NC)	927980286536
Net weight (piece)	0.070 kg
