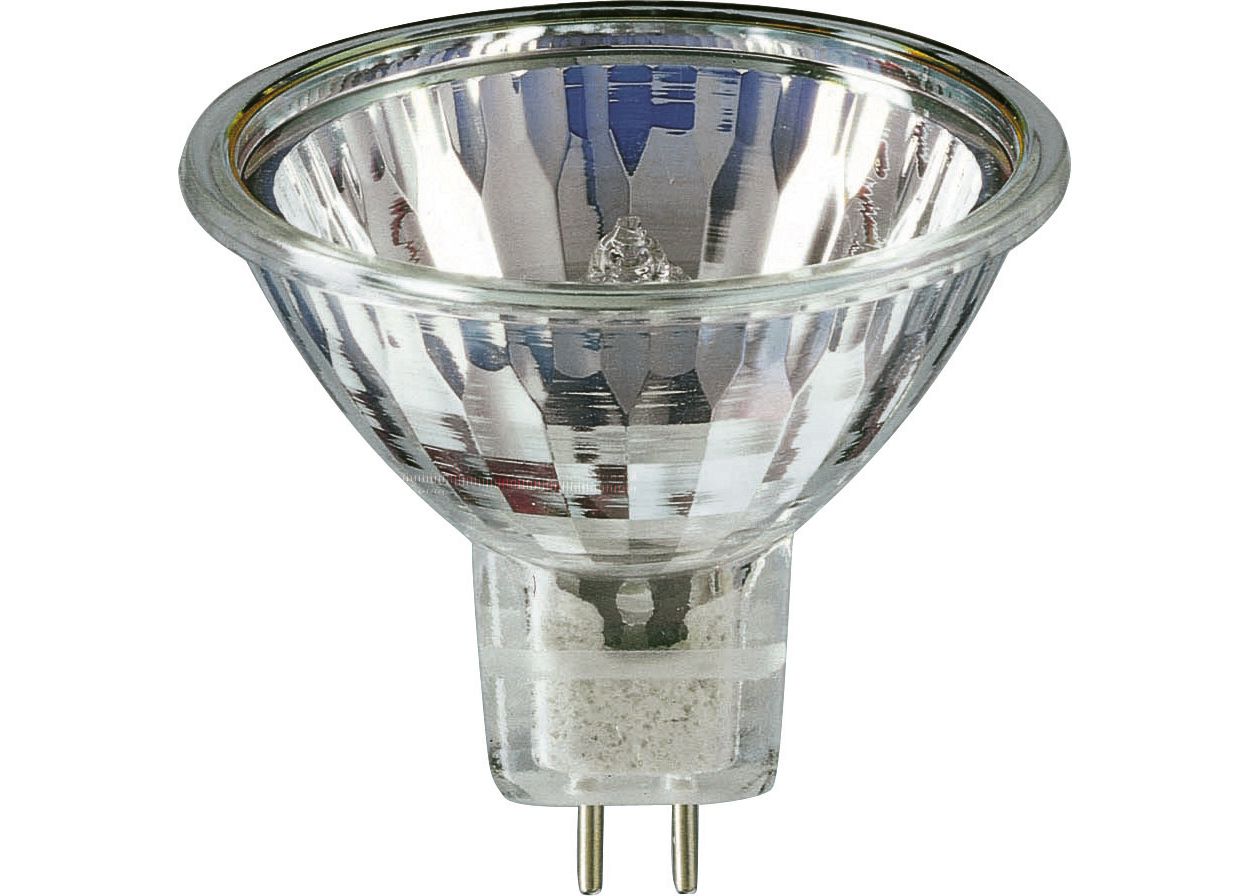

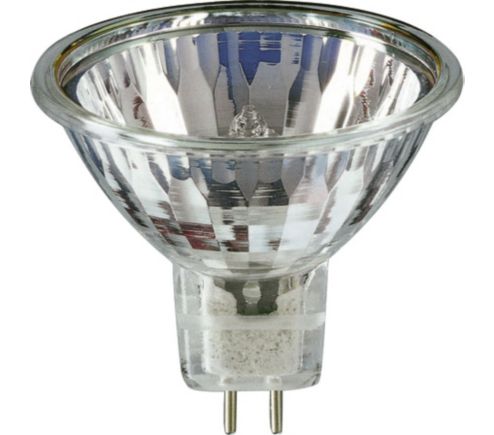

Brilliantline Dichroic 20W GU5.3 12V MR16 36D 1CT/10X5F

Specifications Show all

General Information

Cap base	GU5.3  [ GU5.3]
Philips code	14612
Operating position	UNIVERSAL  [ Any or Universal (U)]
ANSI code halogen	BAB
Nominal lifetime (nom.)	4000 h
Switching cycle	16000X

Light Technical

Beam Angle (Nom)	36 °
Luminous flux (rated) (nom.)	236 lm
Luminous intensity (max.)	665 cd
Rated beam angle	36 °
Correlated colour temperature (nom.)	3000 K
Color rendering index (nom.)	100
LLMF at end of nominal lifetime (min.)	80 %
Luminous Flux In 90° Cone (Rated)	236 lm

Operating and Electrical

Power (Rated) (Nom)	20.0 W
Lamp current (nom.)	1.7 A
Starting time (nom.)	0.0 s
Warm-up time to 60% light (nom.)	instant full light
Power factor (nom.)	1
Voltage (Nom)	12 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb finish

Clear (CL)

Approval and Application

Energy efficiency label (EEL)	B
Energy Consumption kWh/1000 h	21 kWh

Luminaire Design Requirements

Bulb temperature (max.)	250 °C
Cap base temperature (max.)	350 °C

Product Data

Full product code	871150042484660
Order product name	Brilliantline Dichroic 20W GU5.3 12V 36D 1CT/10X5F
EAN/UPC – product	8711500424846
Order code	42484660
Numerator – quantity per pack	1
Numerator – packs per outer box	50
Material no. (12NC)	924050217101
Net weight (piece)	30.000 g
ILCOS Code	HRGS-20-12-GU5.3-50-36
