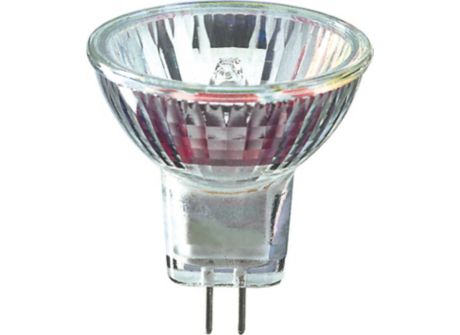

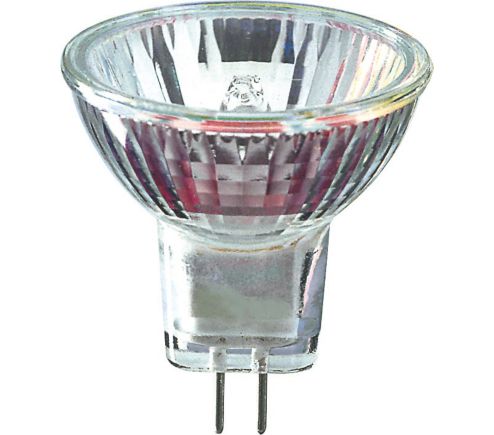

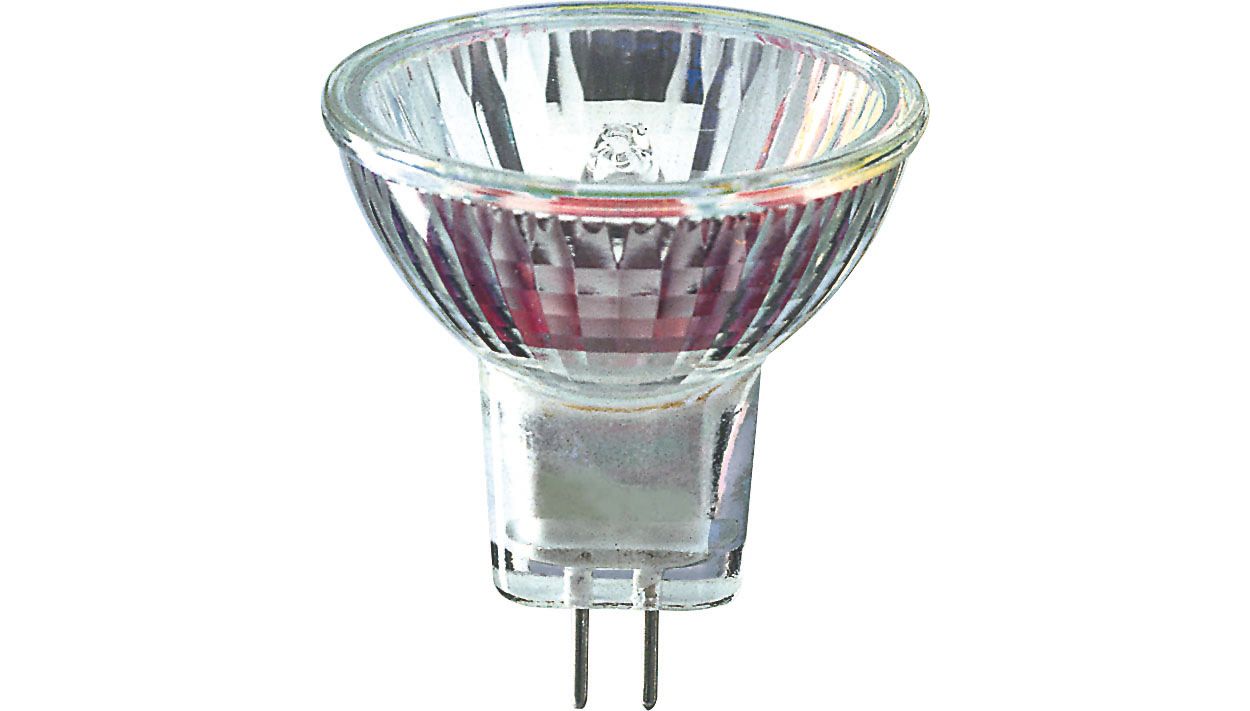

Brilliantline Dichroic 35W GU4 12V MR11 30D 1CT/10X5F

Specifications Show all

General Information

Cap base	GU4  [ GU4]
Philips code	14627
Operating position	UNIVERSAL  [ Any or Universal (U)]
ANSI code halogen	FTH
Nominal lifetime (nom.)	4000 h
Switching cycle	16000X

Light Technical

Beam Angle (Nom)	30 °
Luminous flux (nom.)	430 lm
Luminous flux (rated) (nom.)	430 lm
Luminous intensity (max.)	1500 cd
Rated beam angle	30 °
Correlated colour temperature (nom.)	3000 K
Color rendering index (nom.)	100
LLMF at end of nominal lifetime (min.)	80 %
Luminous Flux In 90° Cone (Rated)	430 lm

Operating and Electrical

Power (Rated) (Nom)	35 W
Lamp current (nom.)	2.9 A
Starting time (nom.)	0.0 s
Warm-up time to 60% light (nom.)	instant full light
Power factor (nom.)	1
Voltage (Nom)	12 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb finish

Clear (CL)

Approval and Application

Energy efficiency label (EEL)	B
Energy Consumption kWh/1000 h	37 kWh

Luminaire Design Requirements

Bulb temperature (max.)	300 °C
Cap base temperature (max.)	350 °C

Product Data

Full product code	871150042546160
Order product name	Brilliantline Dichroic 35W GU4 12V 30D 1CT/10X5F
EAN/UPC – product	8711500425461
Order code	42546160
Numerator – quantity per pack	1
Numerator – packs per outer box	50
Material no. (12NC)	924051517107
Net weight (piece)	14.200 g
ILCOS Code	HRGS-35-12-GU4-35/30
