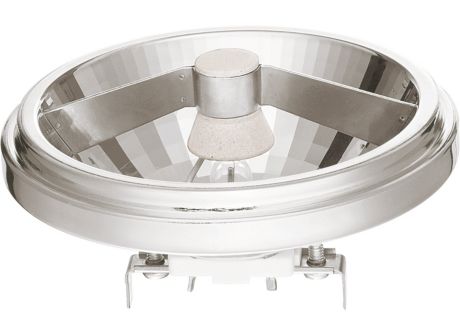

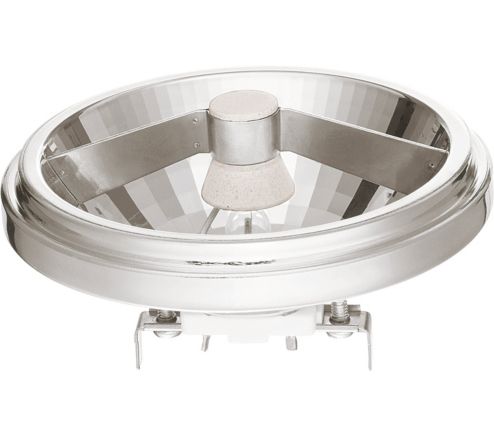

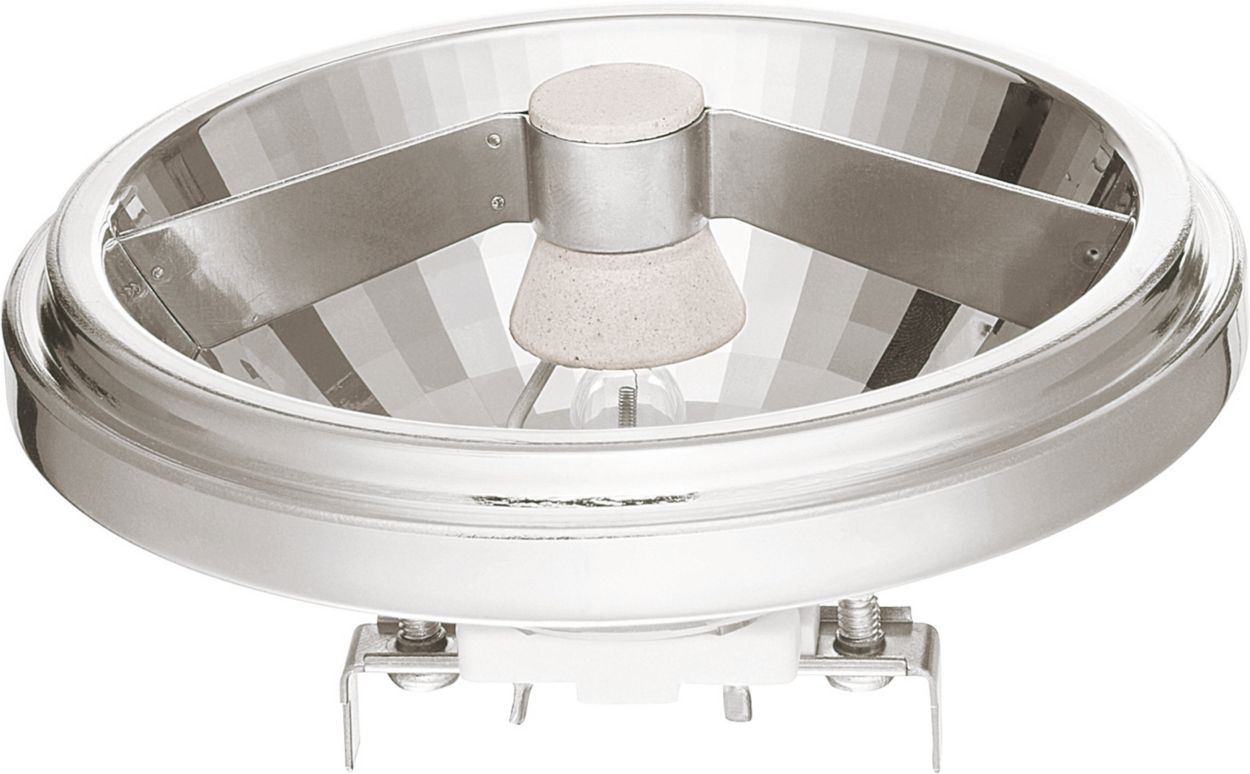

MASTERLINE 111 60W G53 12V 45D 1CT/6

Specifications Show all

General Information

Cap base	G53  [ G53]
Philips code	14743
Operating position	UNIVERSAL  [ Any or Universal (U)]
Nominal lifetime (nom.)	4000 h
Switching cycle	16000X

Light Technical

Beam Angle (Nom)	45 °
Luminous flux (rated) (nom.)	840 lm
Luminous intensity (max.)	2400 cd
Rated beam angle	45 °
Correlated colour temperature (nom.)	3000 K
Color rendering index (nom.)	100
LLMF at end of nominal lifetime (min.)	80 %
Luminous Flux In 90° Cone (Rated)	840 lm

Operating and Electrical

Power (Rated) (Nom)	60.0 W
Lamp current (nom.)	5 A
Wattage equivalent	100 W
Starting time (nom.)	0.0 s
Warm-up time to 60% light (nom.)	instant full light
Power factor (nom.)	1
Voltage (Nom)	12 V

Controls and Dimming

Dimmable

Yes

Approval and Application

Energy efficiency label (EEL)	C
Energy Consumption kWh/1000 h	64 kWh

Luminaire Design Requirements

Bulb temperature (max.)	900 °C
Cap base temperature (max.)	350 °C

Product Data

Full product code	871150041113610
Order product name	MASTERLine 111 60W G53 12V 45D 1CT/6
EAN/UPC – product	8711500411136
Order code	41113610
Numerator – quantity per pack	1
Numerator – packs per outer box	6
Material no. (12NC)	924059117161
Net weight (piece)	0.054 kg
