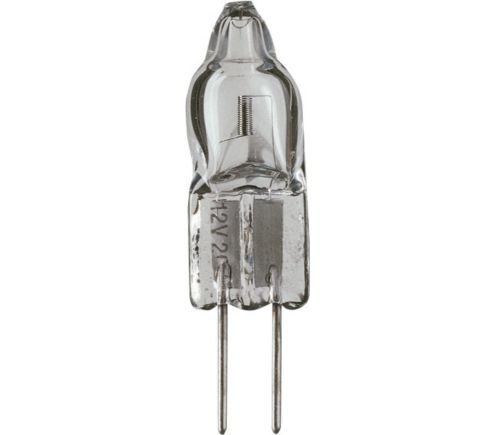

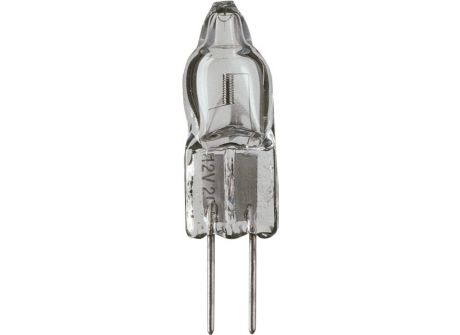

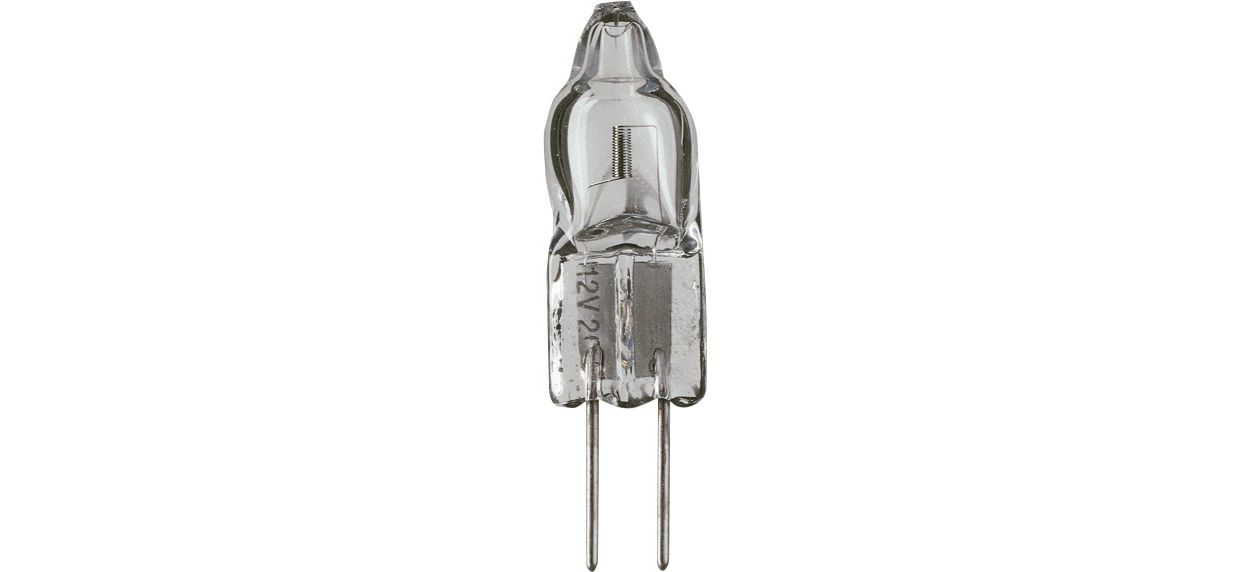

CAPS 10W G4 12V CL 2000H 1CT/10X10F

Specifications Show all

General Information

Cap base	G4  [ G4]
Philips code	18182
Operating position	UNIVERSAL  [ Any or Universal (U)]
Nominal lifetime (nom.)	2000 h
Switching cycle	8000X

Light Technical

Luminous flux (nom.)	100 lm
Luminous flux (rated) (nom.)	100 lm
Correlated colour temperature (nom.)	2700 K
Luminous efficacy (rated) (nom.)	10 lm/W
Color rendering index (nom.)	100
LLMF at end of nominal lifetime (min.)	80 %

Operating and Electrical

Power (Rated) (Nom)	10.0 W
Lamp current (nom.)	0.83 A
Starting time (nom.)	0.0 s
Warm-up time to 60% light (nom.)	instant full light
Power factor (nom.)	1
Voltage (Nom)	12 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb finish	Clear (CL)
Cap base information	na  [ -]

Approval and Application

Energy efficiency label (EEL)	C
Energy Consumption kWh/1000 h	11 kWh

Luminaire Design Requirements

Bulb temperature (max.)	220 °C
Pinch temperature (max.)	350 °C

Product Data

Full product code	871150041298050
Order product name	Capsuleline 10W G4 12V CL 2000h 1CT/10X10F
EAN/UPC – product	8711500412980
Order code	41298050
Numerator – quantity per pack	1
Numerator – packs per outer box	100
Material no. (12NC)	924891917110
Net weight (piece)	0.002 kg
ILCOS Code	HSG/C/UB-10-12-G4
