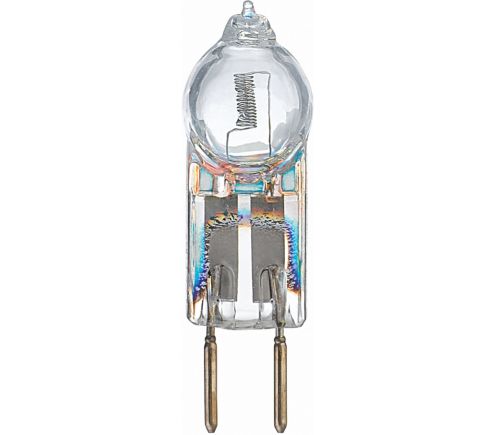

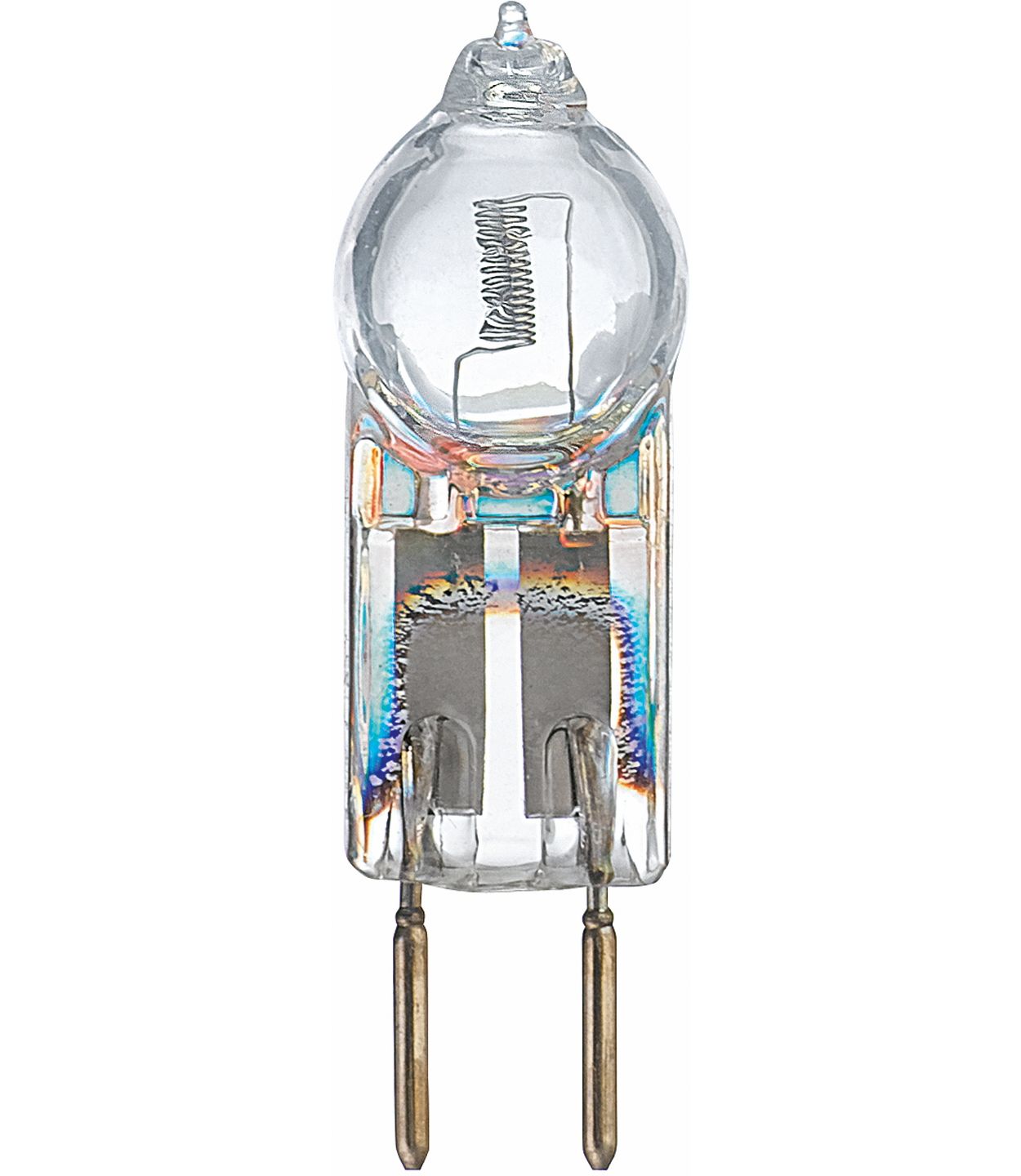

MASTERCAPS 45W GY6.35 12V IR 1CT/5X10F

Specifications Show all

General Information

Cap base	GY6.35  [ GY6.35]
Philips code	18161
Operating position	UNIVERSAL  [ Any or Universal (U)]
Nominal lifetime (nom.)	4000 h
Switching cycle	16000X

Light Technical

Luminous flux (nom.)	1250 lm
Luminous flux (rated) (nom.)	1250 lm
Correlated colour temperature (nom.)	3000 K
Luminous efficacy (rated) (nom.)	24 lm/W
Color rendering index (nom.)	100
LLMF at end of nominal lifetime (min.)	80 %

Operating and Electrical

Power (Rated) (Nom)	45.0 W
Lamp current (nom.)	3.75 A
Wattage equivalent	75 W
Starting time (nom.)	0.0 s
Warm-up time to 60% light (nom.)	instant full light
Power factor (nom.)	1
Voltage (Nom)	12 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb finish	IR Coated
Cap base information	15

Approval and Application

Energy efficiency label (EEL)	B
Energy Consumption kWh/1000 h	48 kWh

Luminaire Design Requirements

Bulb temperature (max.)	900 °C
Pinch temperature (max.)	350 °C

Product Data

Full product code	872790020355470
Order product name	MASTERCapsule 45W GY6.35 12V IR 1CT/5X10F
EAN/UPC – product	8727900203554
Order code	20355470
Numerator – quantity per pack	1
Numerator – packs per outer box	50
Material no. (12NC)	924898417102
Net weight (piece)	2.300 g
ILCOS Code	HSG/F-45-12-GY6.35
