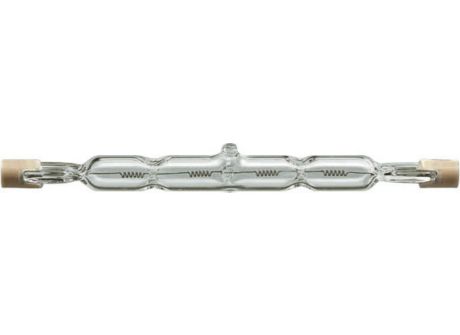

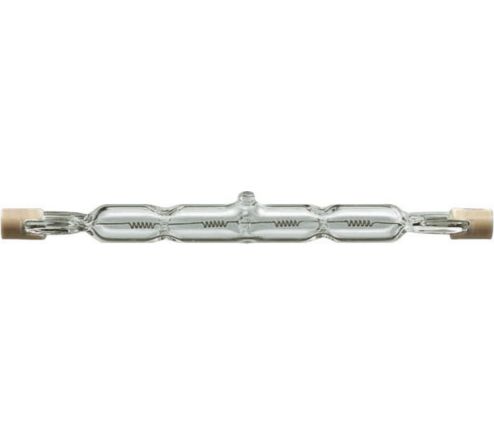

Plusline S 500W R7s 240V 1CT/10X10F

Specifications Show all

General Information

Cap base	R7S  [ R7s]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Nominal lifetime (nom.)	2000 h

Light Technical

Luminous flux (nom.)	9660 lm
Correlated colour temperature (nom.)	2900 K
Luminous efficacy (rated) (nom.)	19.3 lm/W
Color rendering index (nom.)	100

Operating and Electrical

Power (Rated) (Nom)	500 W
Lamp current (nom.)	2.08 A
Starting time (nom.)	0.0 s
Voltage (Nom)	240 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb finish

Clear (CL)

Approval and Application

Energy efficiency label (EEL)

D

Luminaire Design Requirements

Bulb temperature (max.)	900 °C
Pinch temperature (max.)	350 °C

Product Data

Full product code	872790080905300
Order product name	Plusline S 500W R7s 240V 1CT/10X10F
EAN/UPC – product	8727900809053
Order code	80905300
Numerator – quantity per pack	1
Numerator – packs per outer box	100
Material no. (12NC)	924735545579
Net weight (piece)	0.010 kg
ILCOS Code	HDG//RS-500-240-R7s-114,2
