    • Product Description

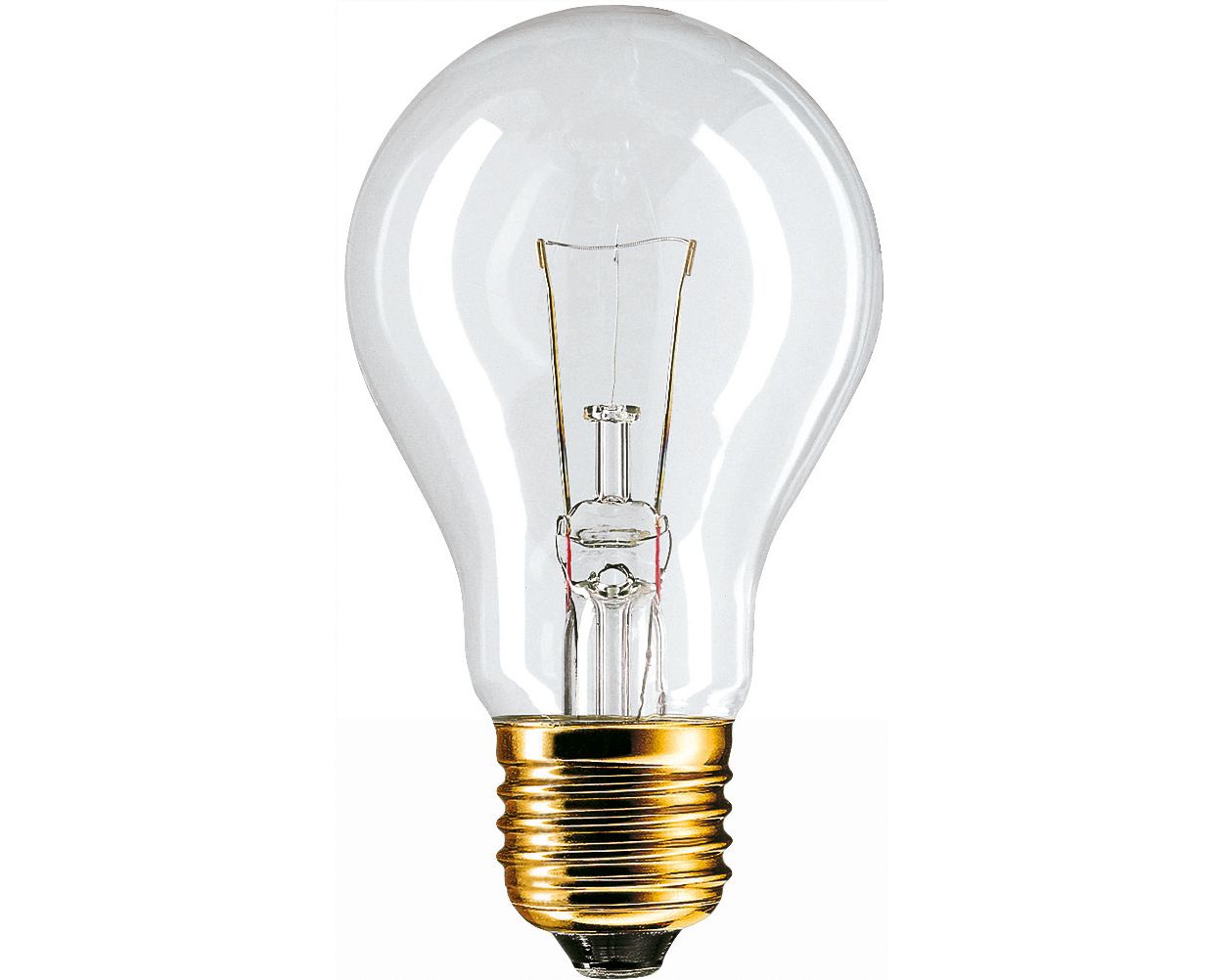

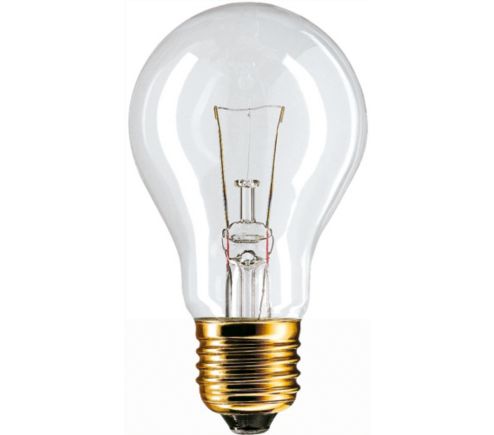

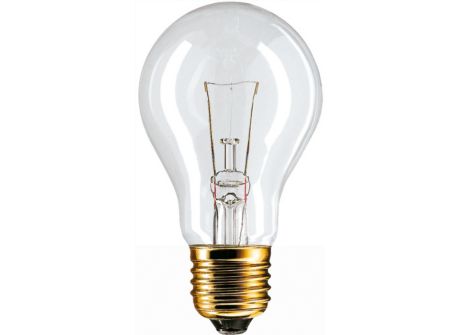

      STAN ELV 60W E27/BRC 12V A60 CL 1CT/20
      STAN ELV 60W E27/BRC 12V A60 CL 1CT/20
      Standard Extra Low Voltage A60

      STAN ELV 60W E27/BRC 12V A60 CL 1CT/20

      Order code: 09017105

      Full product code: 871150009017105

      Downloads

      Data sheet
      Size:264.6 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    E27  [ E27]
    Operating position
    UNIVERSAL  [ Any or Universal (U)]
    Nominal lifetime (nom.)
    1000 h
    Switching cycle
    4000X
    Light Technical
    Luminous flux (nom.)
    990 lm
    Luminous flux (rated) (nom.)
    990 lm
    Correlated colour temperature (nom.)
    2700 K
    Color rendering index (nom.)
    100
    Operating and Electrical
    Power (Rated) (Nom)
    60.0 W
    Starting time (nom.)
    0.0 s
    Warm-up time to 60% light (nom.)
    instant full light
    Voltage (Nom)
    12 V
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Bulb finish
    Clear (CL)
    Cap base information
    Brass  [ Brass Cap]
    Approval and Application
    Energy efficiency label (EEL)
    C
    Energy Consumption kWh/1000 h
    60 kWh
    Product Data
    Full product code
    871150009017105
    Order product name
    Standard ELV 60W E27/BRC 12V A60 CL 1CT/20
    EAN/UPC – product
    8711500090171
    Order code
    09017105
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    20
    Material no. (12NC)
    920021017102
    Net weight (piece)
    28.000 g
    ILCOS Code
    IAA/C-60-12-E27-60
    Installation Diagrams
    E27
    E27
