    • Halogen High Voltage SE (Film/Studio) – stars on film and video

      6638P 650W GY9.5 230V 1CT/10
      6638P 650W GY9.5 230V 1CT/10
      Halogen High Voltage SE (Film/Studio)

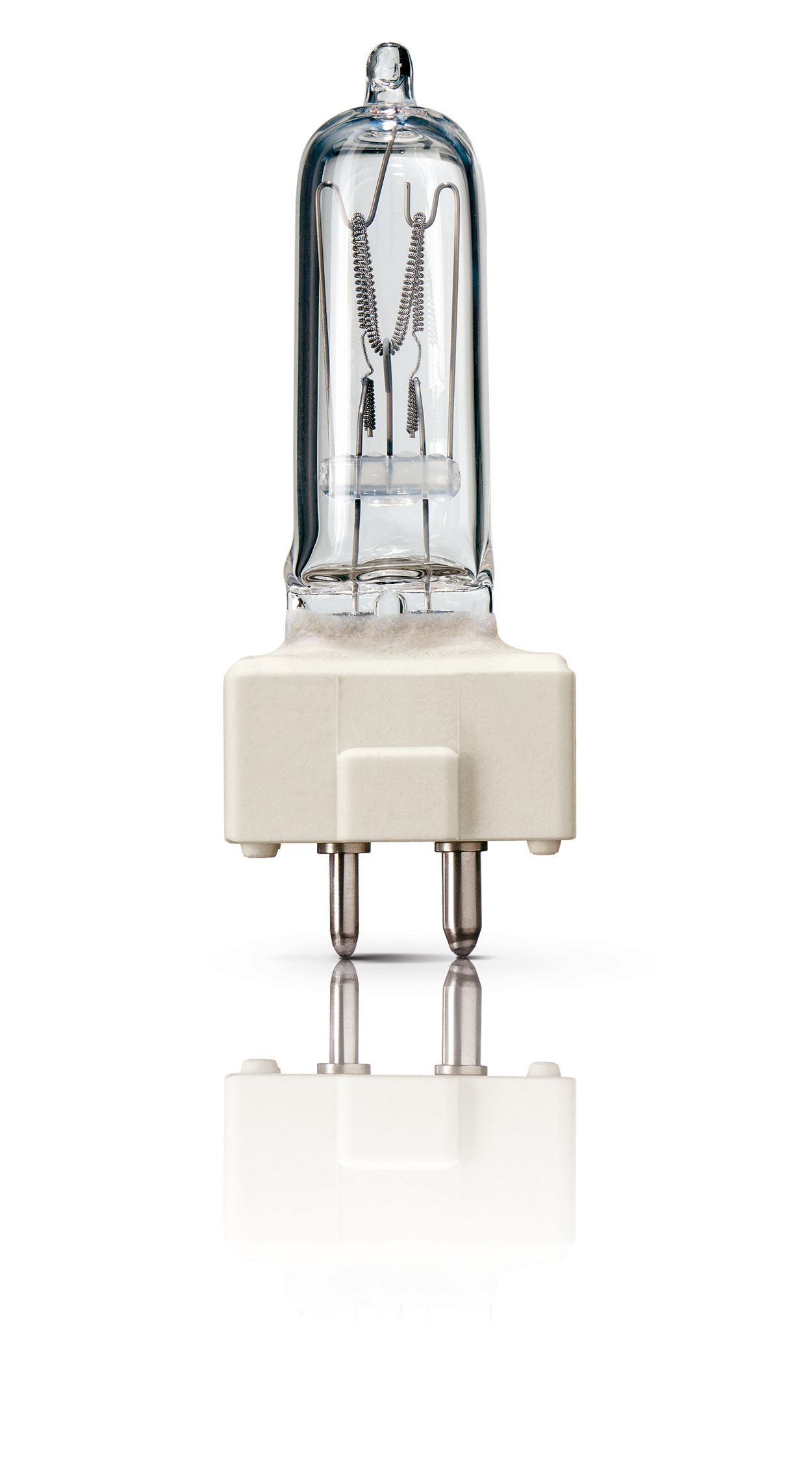

      6638P 650W GY9.5 230V 1CT/10

      Order code: 18448125

      Full Product Code: 871150018448125

      Downloads

      Data sheet
      Size:210.4 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    GY9.5  [ GY9.5]
    Philips code
    6638P
    ANSI Code
    FRL
    LIF code
    CP/89
    Operating position
    UNIVERSAL  [ Any or Universal (U)]
    Main application
    Entertainment
    Life to 50% failures (nom.)
    180 h
    System description
    P3 Technology
    Light Technical
    Luminous flux (rated) (nom.)
    16500 lm
    Correlated colour temperature (nom.)
    3200 K
    Operating and Electrical
    Power (Rated) (Nom)
    650 W
    Rapid-acting HBC fuse
    4 V
    Voltage (Nom)
    230 V
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Bulb finish
    Clear (CL)
    Filament shape
    Bi-Plane
    Filament dimensions WxH
    11x12
    Luminaire Design Requirements
    Bulb temperature (max.)
    900 °C
    Pinch temperature (max.)
    500 °C
    Product Data
    Full product code
    871150018448125
    Order product name
    6638P 650W GY9.5 230V 1CT/10
    EAN/UPC – product
    8711500184481
    Order code
    18448125
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    10
    Material no. (12NC)
    924501342928
    Net weight (piece)
    25.000 g

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    GY9.5
    GY9.5
