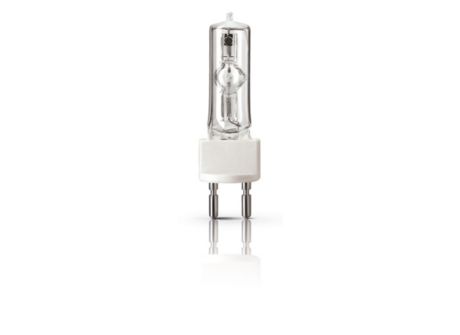

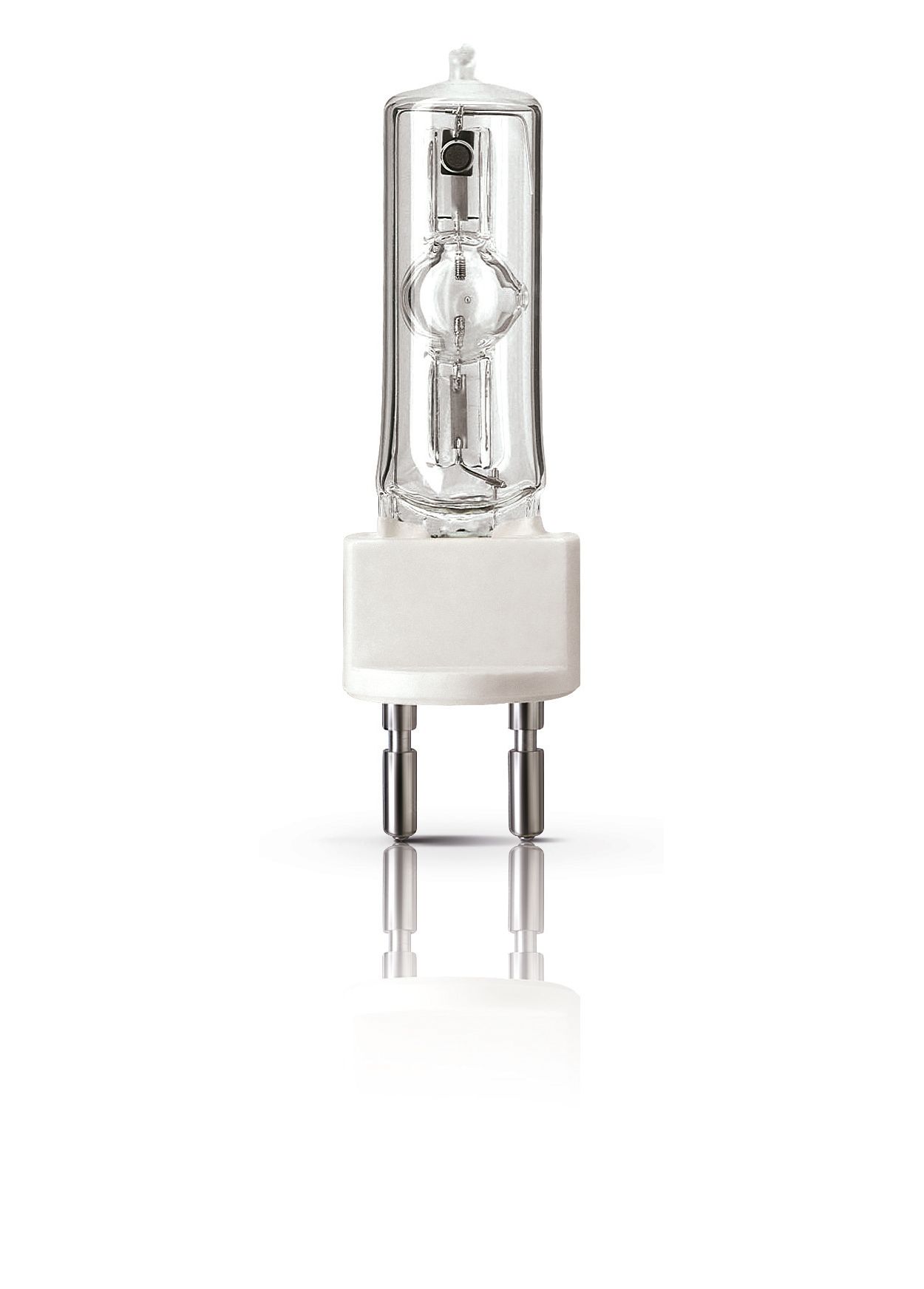

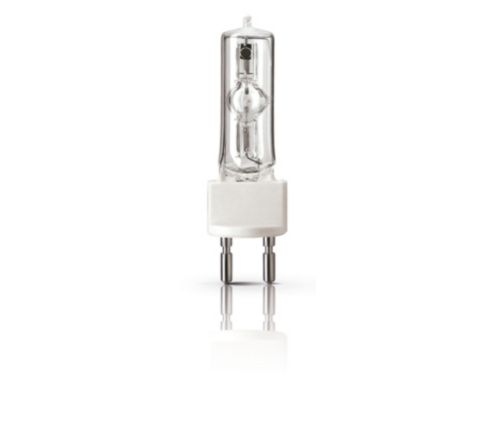

MSR 575 HR 1CT/4

Specifications Show all

General Information

Cap base	G22  [ G22]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Studio/Theatre
Life to 50% failures (nom.)	1000 h
System description	Hot Restrike

Light Technical

Colour code	-  [ Not Specified]
Luminous flux (min.)	40000 lm
Luminous flux (nom.)	49000 lm
Chromaticity coordinate X (nom.)	323
Chromaticity coordinate Y (nom.)	328
Correlated colour temperature (nom.)	6000 K
Luminous efficacy (rated) (nom.)	85 lm/W
Color rendering index (nom.)	90

Operating and Electrical

Power (Rated) (Nom)	575 W
Lamp current (nom.)	6.95 A
Ignition supply voltage (min.)	207 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap base information

na  [ -]

Luminaire Design Requirements

Bulb temperature (max.)	700 °C
Pinch temperature (max.)	350 °C

Product Data

Full product code	871829122105000
Order product name	MSR 575 HR 1CT/4
EAN/UPC – product	8718291221050
Order code	22105000
Numerator – quantity per pack	1
Numerator – packs per outer box	4
Material no. (12NC)	928097705115
Net weight (piece)	0.100 kg
