    • Halogen High Voltage SE (Theater) – super extended lamp life

      6996C 1000W P28S 240V 1CT/10
      6996C 1000W P28S 240V 1CT/10
      Halogen High Voltage SE (Theater)

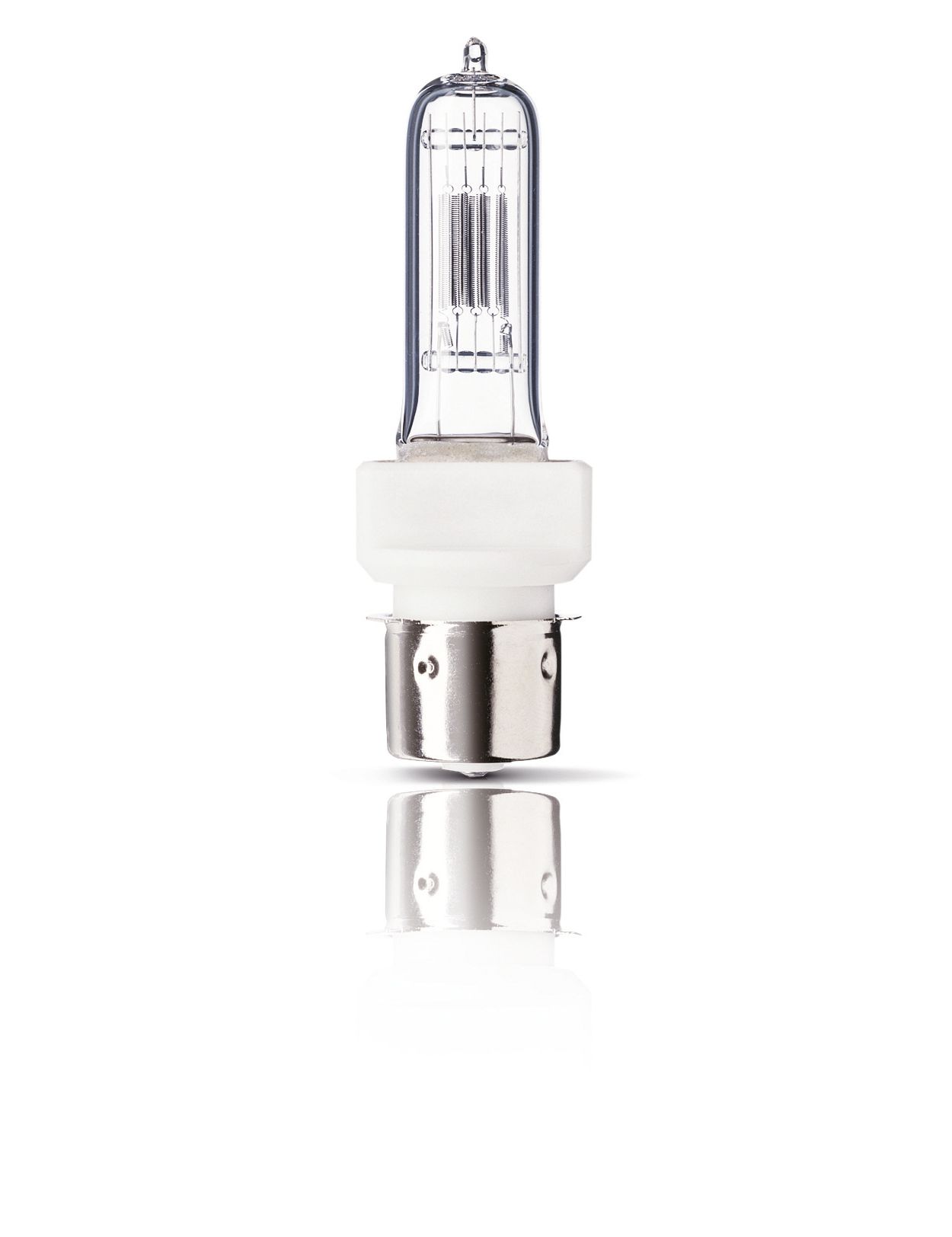

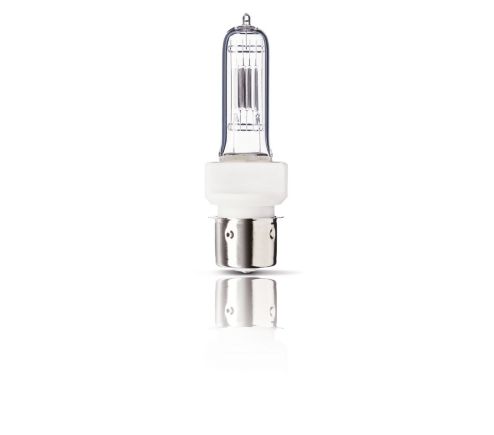

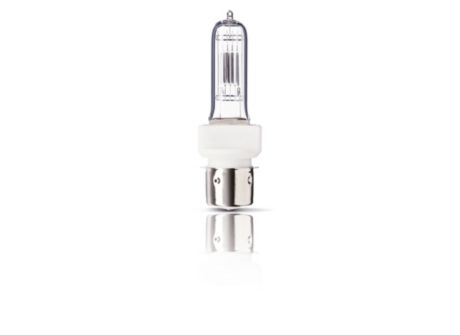

      6996C 1000W P28S 240V 1CT/10

      Order code: 18502025

      Full Product Code: 871150018502025

      Downloads

      Data sheet
      Size:176.0 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    P28S  [ P28s]
    Philips code
    6996C
    ANSI Code
    FKD
    LIF code
    T/20 (T/14)
    Operating position
    UNIVERSAL  [ Any or Universal (U)]
    Main application
    Entertainment
    Life to 50% failures (nom.)
    900 h
    System description
    P3 Technology
    Light Technical
    Luminous flux (rated) (nom.)
    21000 lm
    Correlated colour temperature (nom.)
    3050 K
    Operating and Electrical
    Power (Rated) (Nom)
    1000 W
    Rapid-acting HBC fuse
    6.3 V
    Voltage (Nom)
    240 V
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Bulb finish
    Clear (CL)
    Filament shape
    Bi-Plane
    Filament dimensions WxH
    15X13
    Luminaire Design Requirements
    Pinch temperature (max.)
    500 °C
    Product Data
    Full product code
    871150018502025
    Order product name
    6996C 1000W P28s 240V 1CT/10
    EAN/UPC – product
    8711500185020
    Order code
    18502025
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    10
    Material no. (12NC)
    923865245528
    Net weight (piece)
    0.081 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    P28s
    P28s
