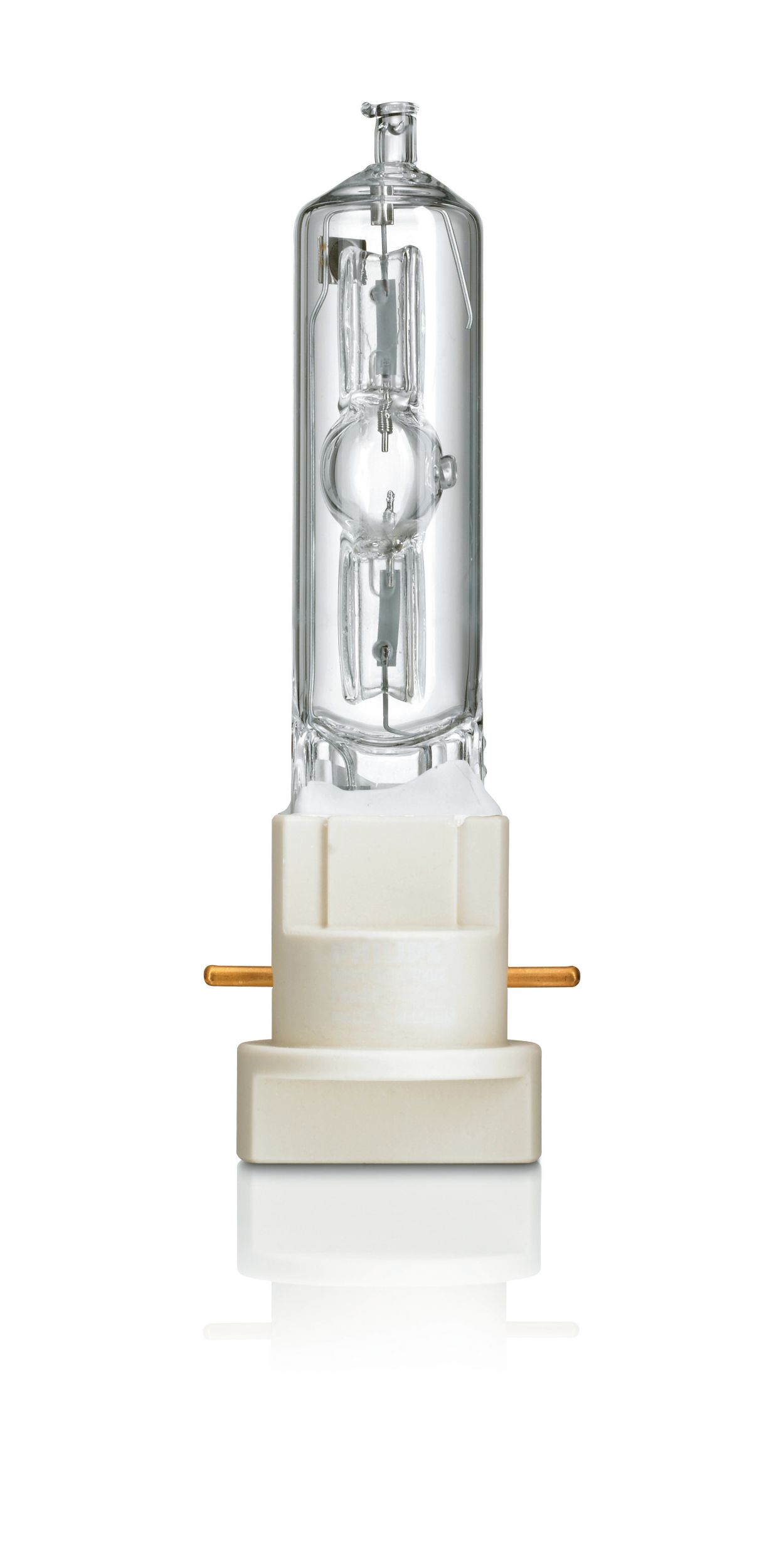

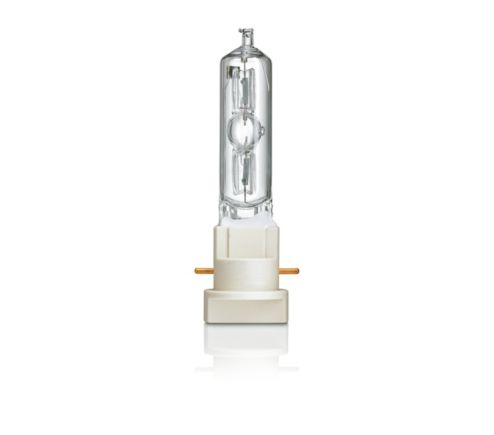

MSR Gold™ 300/2 MiniFastFit 1CT/4

Specifications Show all

General Information

Cap base	PGJX28  [ PGJX28]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Entertainment
Life to 50% failures (nom.)	750 h
System description	MiniFastFit

Light Technical

Colour code	2
Luminous flux (min.)	21000 lm
Luminous flux (nom.)	23000 lm
Chromaticity coordinate X (nom.)	288
Chromaticity coordinate Y (nom.)	306
Correlated colour temperature (nom.)	9300 K
Luminous efficacy (rated) (nom.)	77 lm/W
Color rendering index (nom.)	80

Operating and Electrical

Power (Rated) (Nom)	300 W
Lamp current (nom.)	3.8 A
Ignition supply voltage (min.)	207 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap base information

PGJX28

Luminaire Design Requirements

Bulb temperature (max.)	950 °C
Pinch temperature (max.)	500 °C

Product Data

Full product code	871829122111100
Order product name	MSR Gold™ 300/2 MiniFastFit 1CT/4
EAN/UPC – product	8718291221111
Order code	22111100
Numerator – quantity per pack	1
Numerator – packs per outer box	4
Material no. (12NC)	928177105115
Net weight (piece)	0.062 kg
