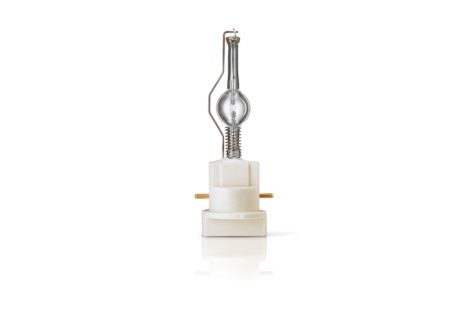

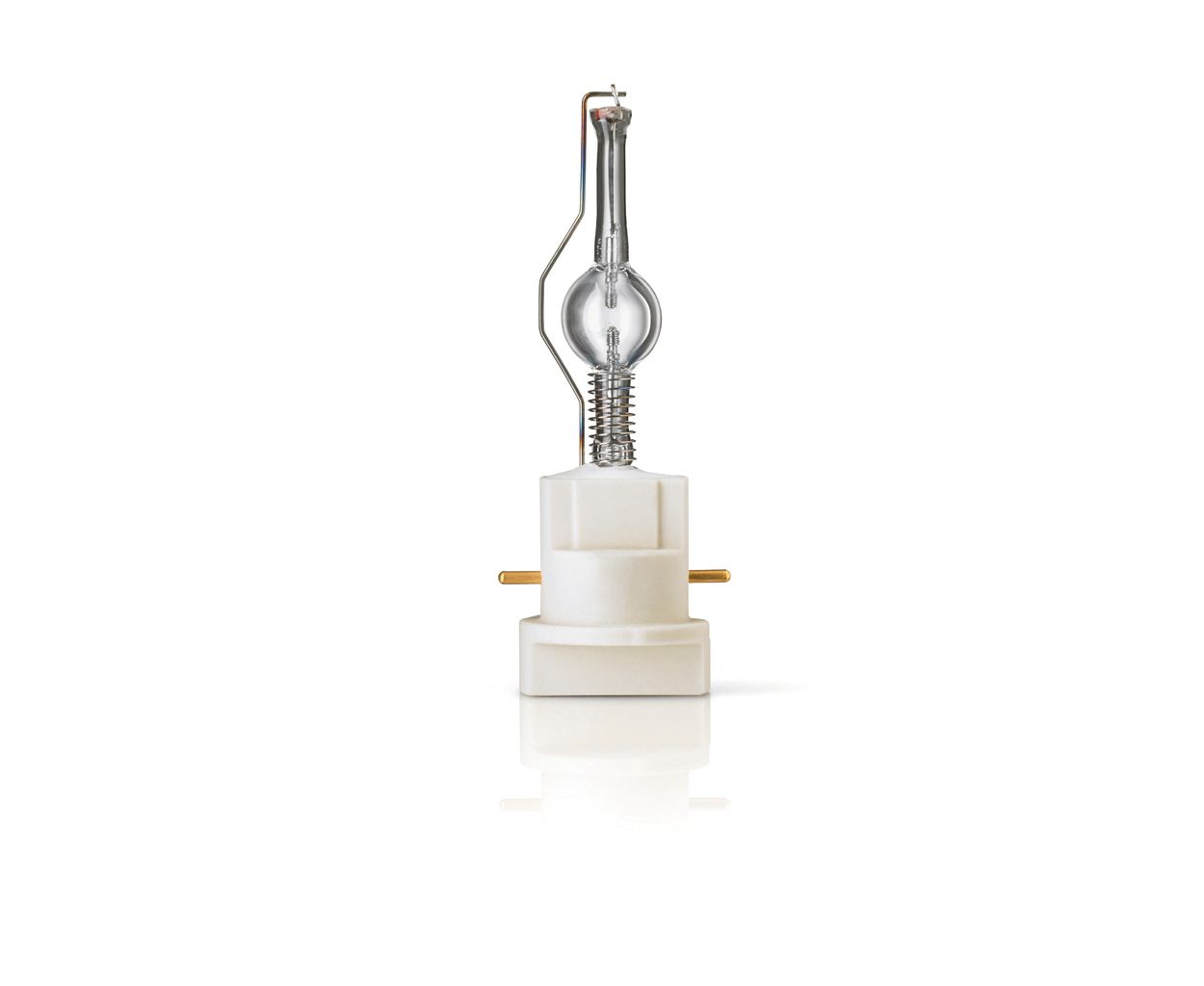

MSR Platinum 35 1CT

Specifications Show all

General Information

Cap base	PGJX36  [ PGJX36]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Studio/Theatre/TV
Life to 50% failures (nom.)	1000 h
System description	na  [ -]

Light Technical

Colour code	2
Luminous flux (min.)	50760 lm
Luminous flux (nom.)	56400 lm
Chromaticity coordinate X (nom.)	0.295
Chromaticity coordinate Y (nom.)	0.313
Correlated colour temperature (nom.)	7750 K
Chromaticity coordinate X (SO) (max.)	0.3084
Chromaticity coordinate X (SO) (min.)	0.2913
Chromaticity coordinate X (SO) (nom.)	0.2998
Chromaticity coordinate Y (SO) (max.)	0.3345
Chromaticity coordinate Y (SO) (min.)	0.3063
Chromaticity coordinate Y (SO) (nom.)	0.3204
Color rendering index (SO) (min.)	60.5
Color rendering index (SO) (nom.)	64.5
Colour temperature (SO) (max.)	8050 K
Colour temperature (SO) (min.)	6650 K
Colour temperature (SO) (nom.)	7350 K
Luminous efficacy (SO) (min.)	38 lm/W
Luminous efficacy (SO) (nom.)	42.5 lm/W
Luminous flux (SO) (min.)	31500 lm
Luminous flux (SO) (nom.)	36500 lm
Luminous efficacy (rated) (nom.)	70.2 lm/W
Color rendering index (nom.)	73

Operating and Electrical

Power (Rated) (Nom)	800 W
Lamp current (nom.)	12.0 A
Ignition supply voltage (min.)	220 V
Ignition time (nom.)	10 s

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap base information

PGJX36

Luminaire Design Requirements

Bulb temperature (max.)	950 °C
Pinch temperature (max.)	450 °C

Product Data

Full product code	871829112006300
Order product name	MSR Platinum 35 1CT
EAN/UPC – product	8718291120063
Order code	12006300
Numerator – quantity per pack	1
Numerator – packs per outer box	16
Material no. (12NC)	928190905114
Net weight (piece)	0.053 kg
