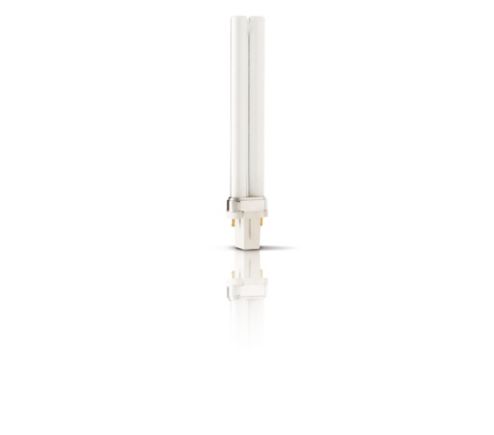

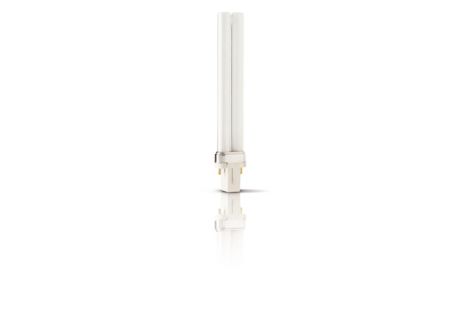

PL-S 9W/52/2P 1CT/6X10BOX

Specifications Show all

General Information

Cap base	G23  [ G23]
Main application	Medical Therapy
Life to 50% failures (nom.)	8000 h
Useful life (nom.)	2000 h

Light Technical

Colour code	52
Luminous flux (nom.)	130 lm
Colour designation	Medical
Lumen maintenance 5,000 hours (nom.)	75 %
Depreciation at 1000 Hours	20 %
Luminous efficacy (rated) (nom.)	15 lm/W

Operating and Electrical

Power (Rated) (Nom)	8.6 W
Lamp current (nom.)	0.17 A
Voltage (Nom)	60 V

Mechanical and Housing

Cap base information

2 Pins (2P)

Product Data

Full product code	871150064471880
Order product name	PL-S 9W/52/2P 1CT/6X10BOX
EAN/UPC – product	8711500644718
Order code	64471880
Numerator – quantity per pack	1
Numerator – packs per outer box	60
Material no. (12NC)	927901705203
Net weight (piece)	32.000 g
