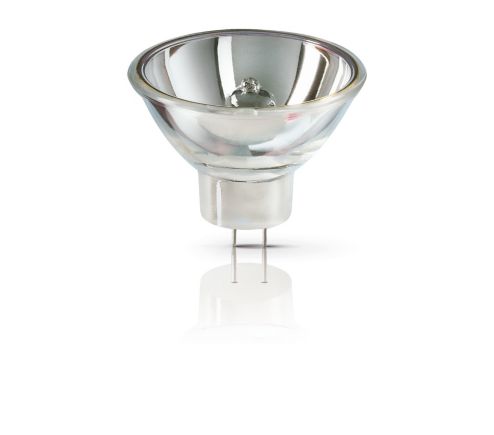

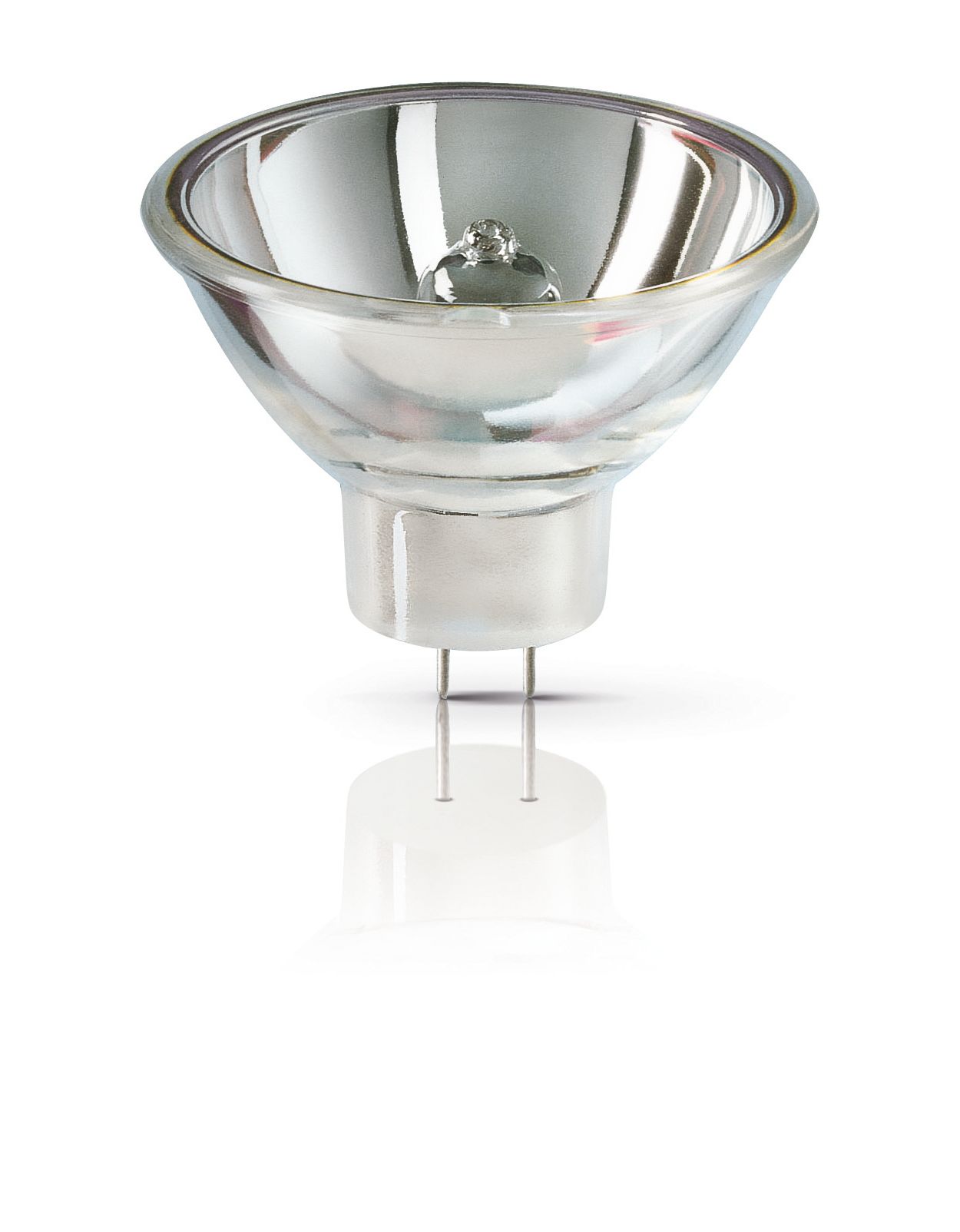

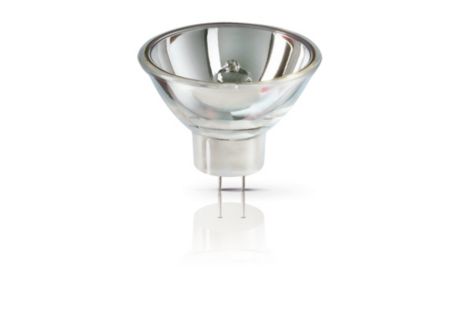

6423 150W GZ6.35 15V 1CT/10X5F

Specifications Show all

General Information

Cap base	GZ6.35  [ GZ6.35]
Philips code	6423
ANSI Code	EFR
LIF code	A1/232
Operating position	P90/P15
Main application	Projection
Life to 50% failures (nom.)	50 h

Light Technical

Correlated colour temperature (nom.)	3380 K
Color rendering index (nom.)	100

Operating and Electrical

Power (Rated) (Nom)	150 W
Voltage (Nom)	15 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb material	Quartz-UV Open
Reflector finish	Smooth
Filament dimensions WxH	-

Luminaire Design Requirements

Bulb temperature (max.)	900 °C
Pinch temperature (max.)	400 °C
Working distance WD	32 mm

Product Data

Full product code	871150042733560
Order product name	6423 150W GZ6.35 15V 1CT/10X5F
EAN/UPC – product	8711500427335
Order code	42733560
Numerator – quantity per pack	1
Numerator – packs per outer box	50
Material no. (12NC)	923916818504
Net weight (piece)	0.023 kg
