    • Halogen reflector lamps – proven reliability

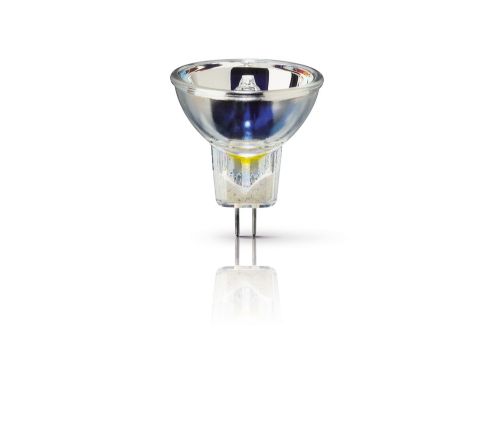

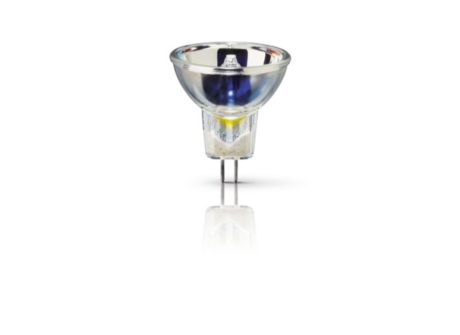

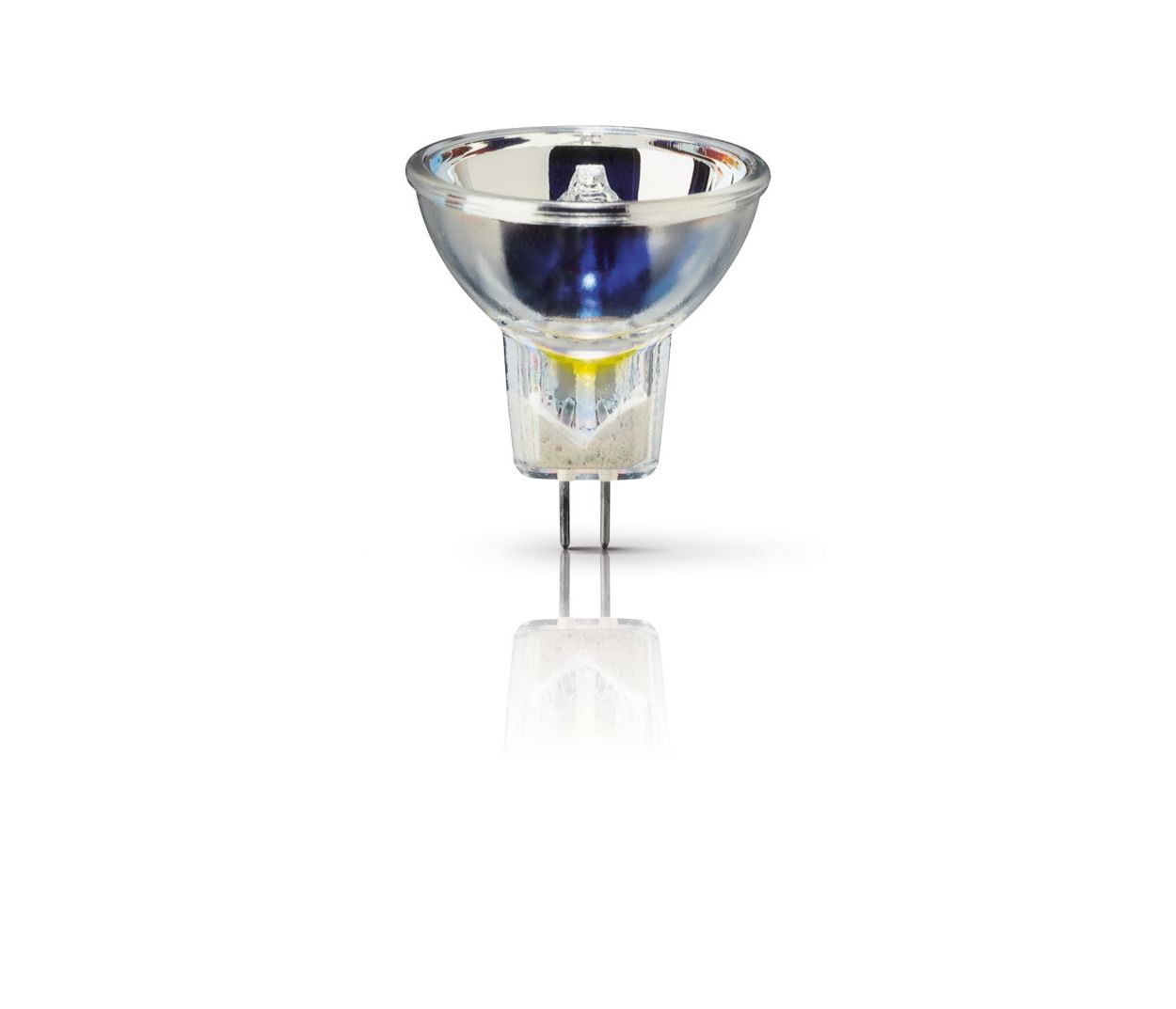

      JCR 12-20 A20H/3.1CT/24
      JCR 12-20 A20H/3.1CT/24
      Halogen reflector

      JCR 12-20 A20H/3.1CT/24

      Order code: 44139330

      Full Product Code: 871150044139330

      Downloads

      Data sheet
      Size:222.6 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    GZ4  [ GZ4]
    Philips code
    22740
    ANSI Code
    -
    LIF code
    -
    Operating position
    UNIVERSAL  [ Any or Universal (U)]
    Main application
    Dental Hardening
    Life to 50% failures (nom.)
    2000 h
    J code
    JCR12-20A20H-3
    Light Technical
    Correlated colour temperature (nom.)
    3000 K
    Color rendering index (nom.)
    100
    Operating and Electrical
    Power (Rated) (Nom)
    20 W
    Voltage (Nom)
    12 V
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Cap base information
    na  [ -]
    Bulb material
    Quartz-UV Open
    Reflector finish
    Smooth
    Filament shape
    -
    Filament dimensions WxH
    -
    Luminaire Design Requirements
    Bulb temperature (max.)
    900 °C
    Pinch temperature (max.)
    350 °C
    Working distance WD
    26 mm
    Product Data
    Full product code
    871150044139330
    Order product name
    JCR 12-20 A20H/3.1CT/24
    EAN/UPC – product
    8711500441393
    Order code
    44139330
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    24
    Material no. (12NC)
    924849217194
    Net weight (piece)
    0.025 kg
    Installation Diagrams
    GZ4
    GZ4
