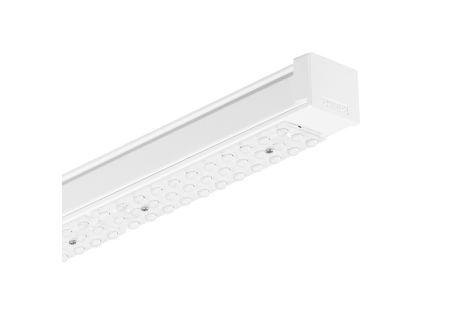

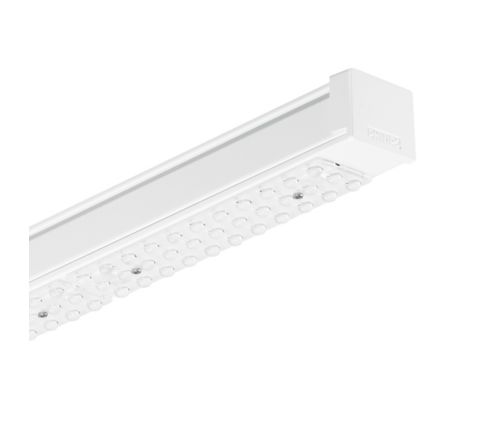

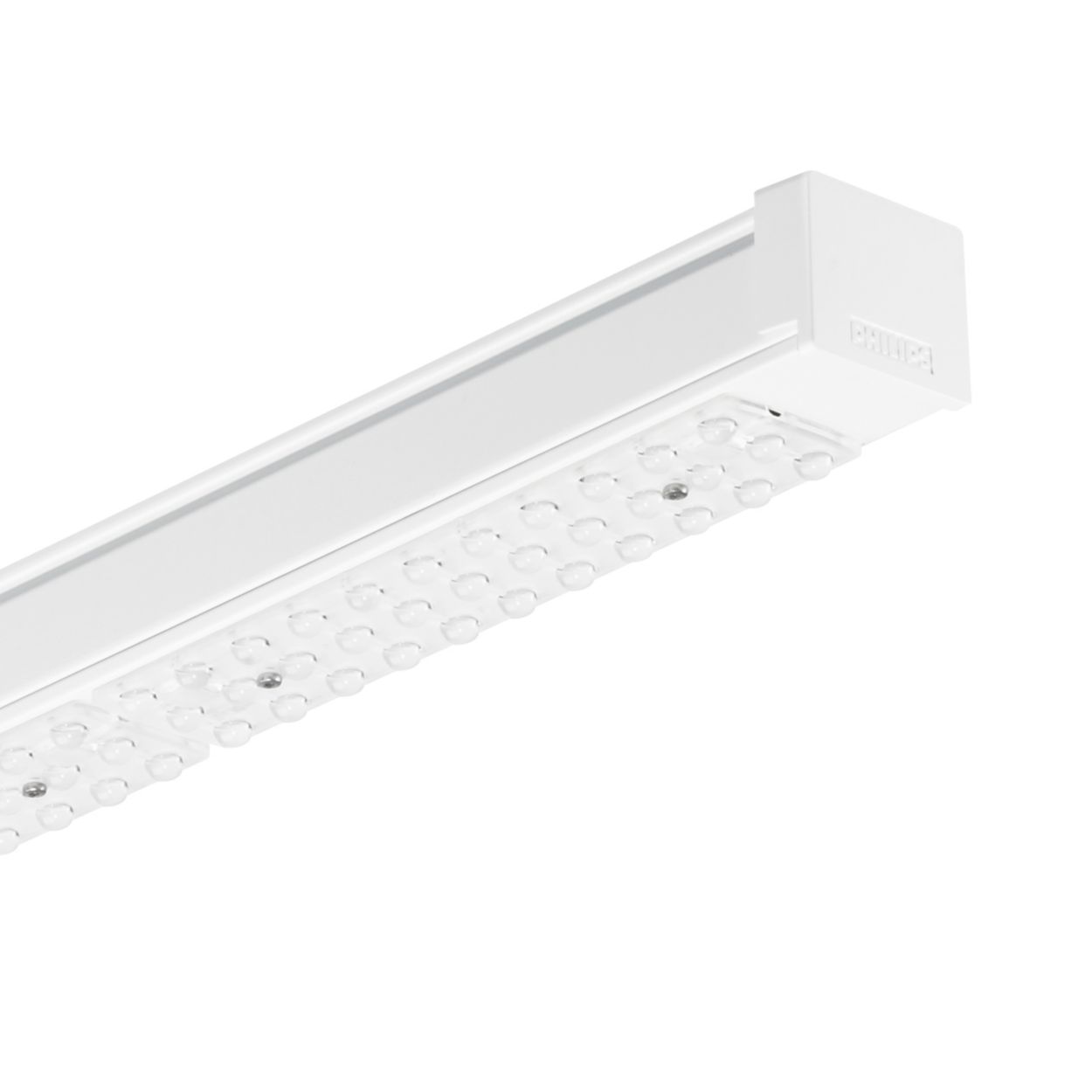

4MX400 581 LED40S/830 PSD NB WH

Specifications Show all

General Information

Number of light sources	1  [ 1 pc]
Lamp family code	LED40S  [ LED Module, system flux 4000 lm]
Beam angle of light source	120 °
Light source colour	830 warm white
Cap base	-  [ -]
Light source replaceable	No
Number of gear units	1 unit
Gear	-
Driver/power unit/transformer	PSD  [ Power supply unit with DALI interface]
Driver included	Yes
Optic type	NB  [ Narrow beam]
Optical cover/lens type	PM  [ PMMA bowl/cover]
Luminaire light beam spread	50°
Emergency lighting	No  [ -]
Control interface	DALI
Connection	CU5  [ Connection unit 5-pole]
Cable	-
Protection class IEC	Safety class I (I)
Glow-wire test	650/30  [ Temperature 650 °C, duration 30 s]
Flammability mark	D  [ For mounting on easily flammable surfaces]
CE mark	CE mark
ENEC mark	ENEC mark
UL mark	-
Warranty period	5 years
Constant light output	No
Number of products on MCB	24
RoHS mark	RoHS mark
Product Family Code	4MX400  [ Maxos LED Retrofit for TTX400]

Operating and Electrical

Input voltage	220-240 V
Input frequency	50 to 60 Hz
Control signal voltage	0-16 V DC DALI
Inrush current	21 A
Inrush time	0.28 ms
Power factor (min.)	0.9

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Trunking length	581  [ 1 unit for TL-D 58 W]
Housing material	Steel
Reflector material	-
Optic material	Polymethyl methacrylate
Optical cover/lens material	Polymethyl methacrylate
Fixation material	Steel
Optical cover/lens finish	Clear
Overall length	1528 mm
Overall width	63 mm
Overall height	50 mm

Approval and Application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	IK02  [ 0.2 J standard]

Initial Performance (IEC Compliant)

Initial luminous flux	4000 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	148 lm/W
Init. Corr. colour temperature	3000 K
Init. colour rendering index	≥80
Initial chromaticity	(0.43, 0.40) SDCM <3.5
Initial input power	27 W
Power consumption tolerance	+/-10%

Over Time Performance (IEC Compliant)

Driver failure rate at 5,000 hours	1 %
Median useful life L70B50	70000 h
Median useful life L80B50	50000 h
Median useful life L90B50	25000 h

Application Conditions

Ambient temperature range	-20 to +35 °C
Average ambient temperature	35 °C
Maximum dimming level	1%
Suitable for random switching	Not applicable

Product Data

Full product code	403073266249499
Order product name	4MX400 581 LED40S/830 PSD NB WH
EAN/UPC – product	4030732662494
Order code	66249499
Numerator – quantity per pack	1
Numerator – packs per outer box	3
Material no. (12NC)	910629124026
Net weight (piece)	1.895 kg
