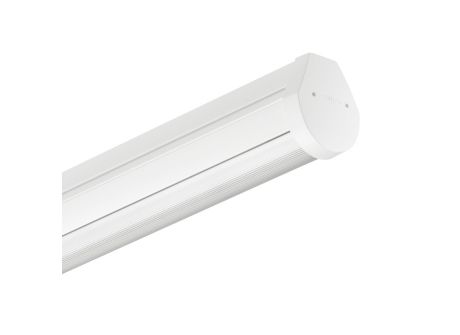

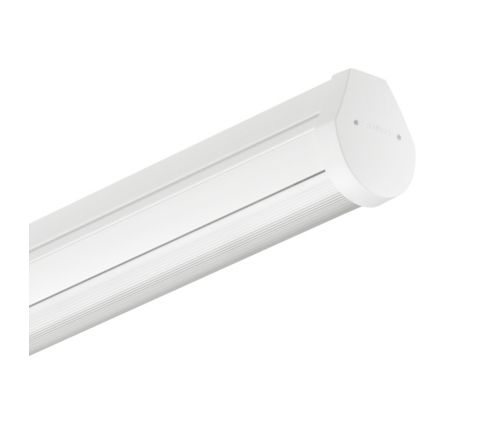

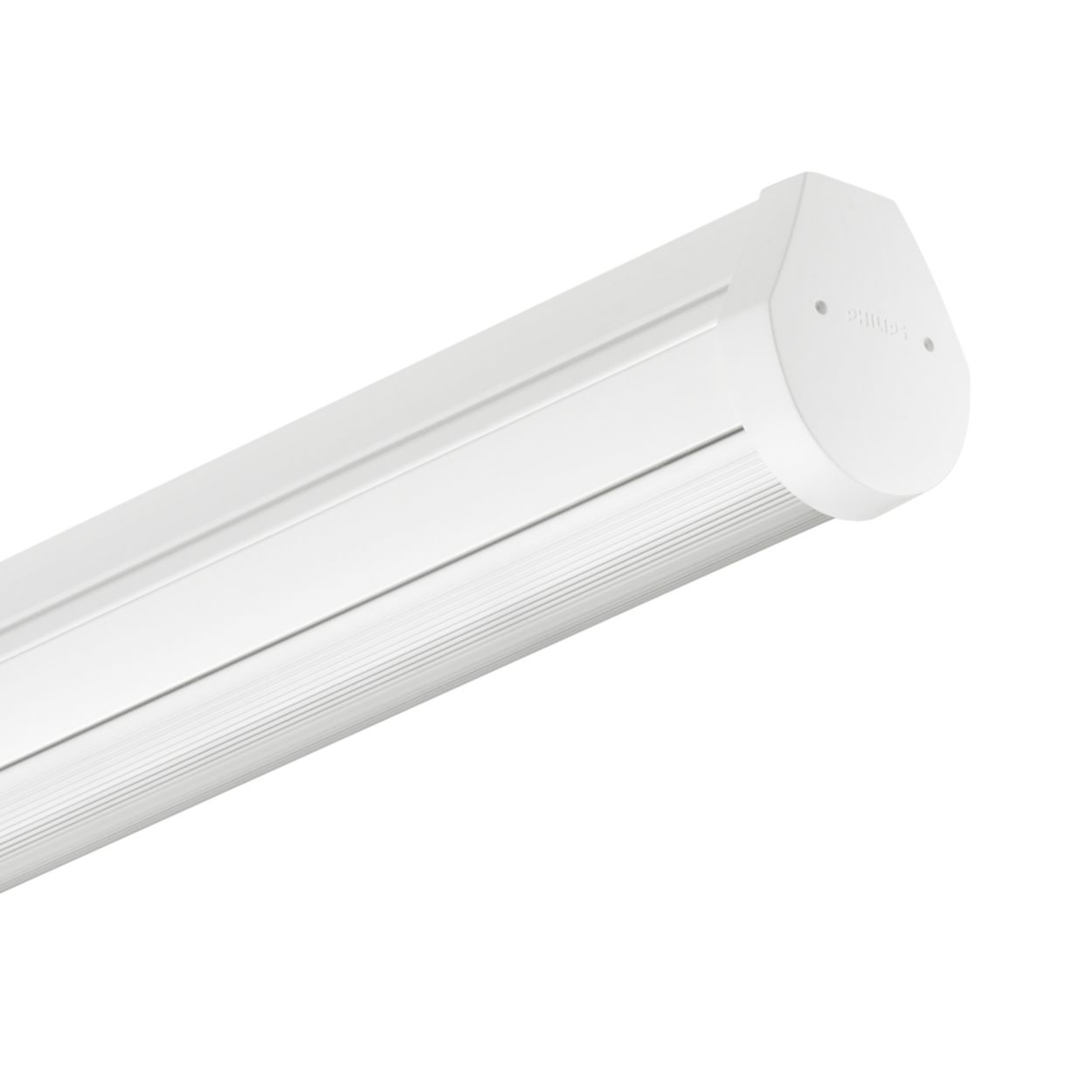

4MX900 LED40S/840 PSD MB WH L1200

Specifications Show all

General Information

Number of light sources	1  [ 1 pc]
Lamp family code	LED40S  [ LED Module, system flux 4000 lm]
Beam angle of light source	120 °
Light source colour	840 neutral white
Light source replaceable	No
Number of gear units	1 unit
Driver/power unit/transformer	PSD  [ Power supply unit with DALI interface]
Driver included	Yes
Optic type	MB  [ Medium beam]
Luminaire light beam spread	70°
Emergency lighting	No  [ -]
Control interface	DALI
Connection	CU5  [ Connection unit 5-pole]
Cable	-
Protection class IEC	Safety class I (I)
Glow-wire test	650/30  [ Temperature 650 °C, duration 30 s]
Flammability mark	D  [ For mounting on easily flammable surfaces]
CE mark	CE mark
ENEC mark	ENEC mark
Warranty period	5 years
Constant light output	No
Number of products on MCB	24
RoHS mark	RoHS mark
Product Family Code	4MX900  [ Maxos LED Performer]

Operating and Electrical

Input voltage	220 to 240 V
Input frequency	50 to 60 Hz
Control signal voltage	0-16 V DC DALI
Inrush current	21 A
Inrush time	0.280 ms
Power factor (min.)	0.9

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Trunking length	No  [ -]
Housing material	Aluminum
Reflector material	-
Optic material	Polymethyl methacrylate
Optical cover/lens material	Polymethyl methacrylate
Fixation material	Steel
Optical cover/lens finish	Clear
Overall length	1200 mm
Overall width	87 mm
Overall height	82 mm

Approval and Application

Ingress protection code	IP40  [ Wire-protected]
Mech. impact protection code	IK02  [ 0.2 J standard]

Initial Performance (IEC Compliant)

Initial luminous flux	4000 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	143 lm/W
Init. Corr. colour temperature	4000 K
Init. colour rendering index	≥80
Initial chromaticity	(0.38, 0.38) SDCM <3.5
Initial input power	28 W
Power consumption tolerance	+/-10%

Over Time Performance (IEC Compliant)

Driver failure rate at 5,000 hours	1 %
Median useful life L70B50	70000 h
Median useful life L80B50	50000 h
Median useful life L90B50	25000 h

Application Conditions

Ambient temperature range	-20 to +40 °C
Average ambient temperature	25 °C
Maximum dimming level	1%
Suitable for random switching	Not applicable

Product Data

Full product code	403073266388099
Order product name	4MX900 LED40S/840 PSD MB WH L1200
EAN/UPC – product	4030732663880
Order code	66388099
Numerator – quantity per pack	1
Numerator – packs per outer box	2
Material no. (12NC)	910629132526
Net weight (piece)	2.010 kg
