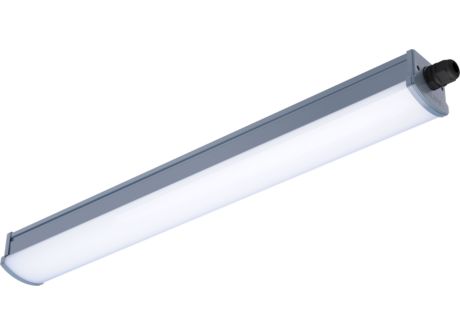

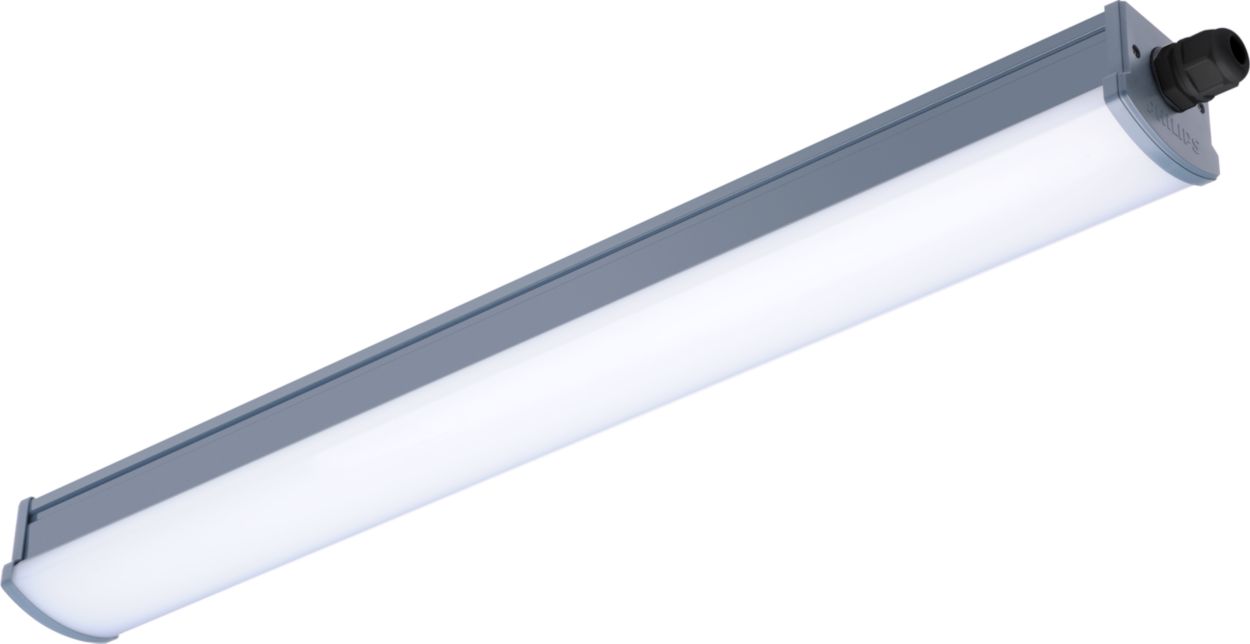

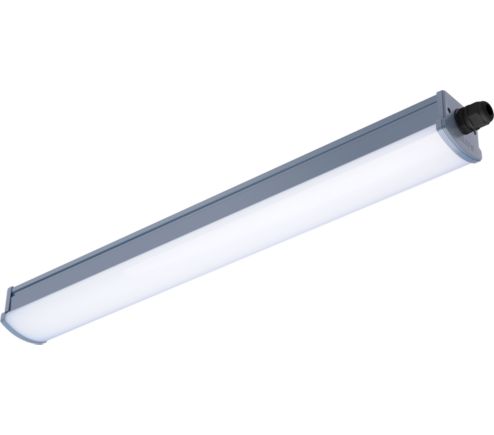

WT066C NW LED18 L600 PSU TB

Specifications Show all

General Information

Beam angle of light source	- °
Light source colour	Neutral white
Light source replaceable	No
Number of gear units	1 unit
Driver/power unit/transformer	PSU  [ Power supply unit]
Driver included	Yes
Optic type	Symmetrical
Luminaire light beam spread	120°
Control interface	-
Cable	-
Protection class IEC	Safety class II (II)
Glow-wire test	750/5  [ Temperature 750 °C, duration 5 s]
Flammability mark	NO  [ -]
CE mark	CE mark
ENEC mark	-
Warranty period	3 years
Constant light output	No
Number of products on MCB	70
RoHS mark	RoHS mark

Operating and Electrical

Input voltage	220-240 V
Input frequency	50 to 60 Hz
Inrush current	6.9 A
Inrush time	0.1 ms
Power factor (min.)	0.9

Controls and Dimming

Dimmable

No

Mechanical and Housing

Housing material	Polycarbonate
Reflector material	Steel
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Fixation material	Stainless steel
Optical cover/lens finish	Opal
Overall length	626 mm
Overall width	68 mm
Overall height	60 mm

Approval and Application

Ingress protection code	IP65  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK06  [ 1 J]

Initial Performance (IEC Compliant)

Initial luminous flux	1800 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	90 lm/W
Init. Corr. colour temperature	4000 K
Init. colour rendering index	>80
Initial chromaticity	SDCM<5
Initial input power	19.4 W
Power consumption tolerance	+/-10%

Over Time Performance (IEC Compliant)

Driver failure rate at 5,000 hours	0.0022 %
Median useful life L70B50	25000 h
Median useful life L80B50	17500 h
Median useful life L90B50	8100 h

Application Conditions

Ambient temperature range	-30 to +45 °C
Maximum dimming level	Not applicable
Suitable for random switching	Not applicable

Product Data

Full product code	911401822897
Order product name	WT066C NW LED18 L600 PSU TB
EAN/UPC – product	8710163311708
Order code	01822897
Numerator – quantity per pack	1
Numerator – packs per outer box	4
Material no. (12NC)	911401822897
Net weight (piece)	0.410 kg
