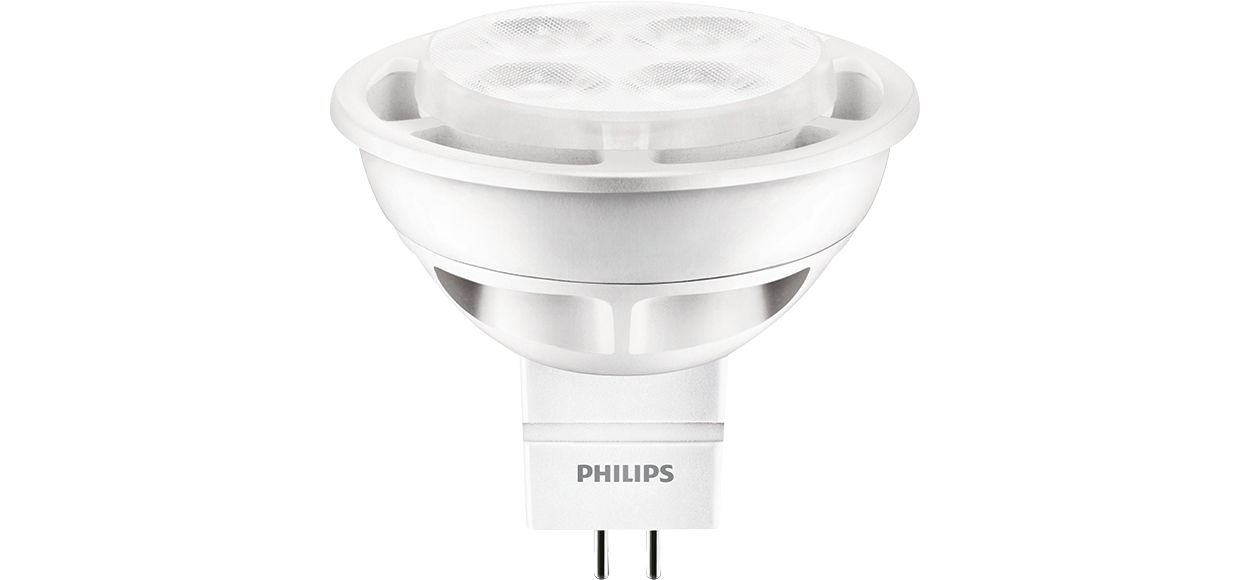

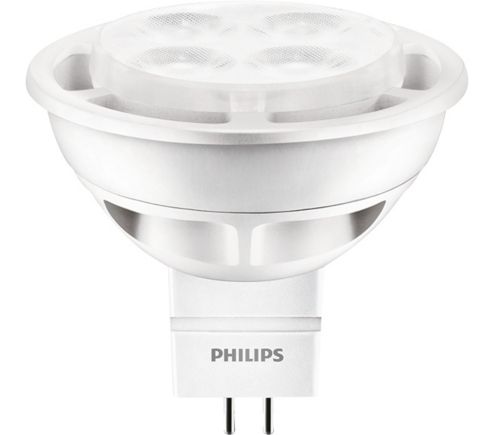

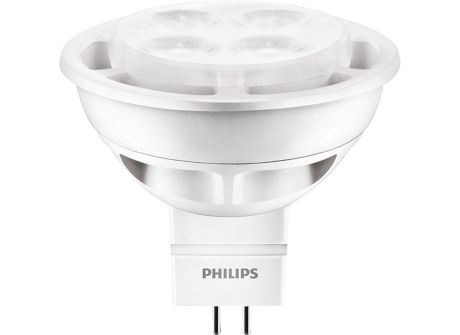

CorePro LEDspotLV 5.5-35W 827 MR16 36D

Specifications Show all

General Information

Cap base	GU5.3  [ GU5.3]
Nominal lifetime (nom.)	15000 h
Switching cycle	50000X
Technical type	5.5-35W

Light Technical

Colour code	827  [ CCT of 2700K]
Beam Angle (Nom)	36 °
Light distribution	36D  [ Medium beam]
Luminous flux (nom.)	415 lm
Luminous flux (rated) (nom.)	415 lm
Luminous intensity (nom.)	1000 cd
Colour designation	Warm White (WW)
Rated beam angle	36 °
Correlated colour temperature (nom.)	2700 K
Luminous efficacy (rated) (nom.)	71.00 lm/W
Colour consistency	<6
Color rendering index (nom.)	80
LLMF at end of nominal lifetime (nom.)	70 %
Luminous Flux In 90° Cone (Rated)	390 lm

Operating and Electrical

Power (Rated) (Nom)	5.5 W
Lamp current (nom.)	640 mA
Wattage equivalent	35 W
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	instant full light
Power factor (nom.)	0.7
Voltage (Nom)	12 V

Temperature

T-Case maximum (nom.)

65 °C

Controls and Dimming

Dimmable

No

Approval and Application

Suitable for accent lighting	Yes
Energy efficiency label (EEL)	A+
Energy Consumption kWh/1000 h	6 kWh

Product Data

Full product code	871869647568300
Order product name	CorePro LEDspotLV 5.5-35W 827 MR16 36D
EAN/UPC – product	8718696475683
Order code	47568300
Numerator – quantity per pack	1
Numerator – packs per outer box	10
Material no. (12NC)	929001146232
Net weight (piece)	0.035 kg
