    • MASTER LEDspot LV AR111 - Ideal solution for spot lighting in shops

      MAS LEDspotLV D 10-50W 827 AR111 40D
      LED
      MAS LEDspotLV D 10-50W 827 AR111 40D

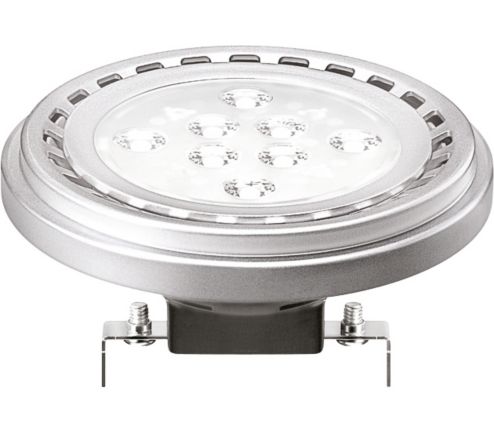

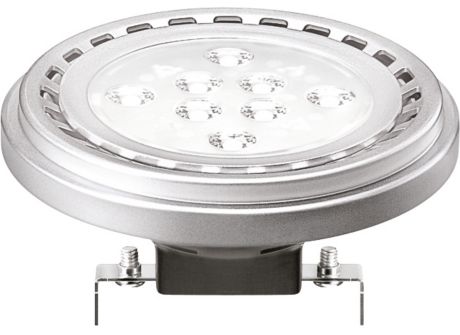

      MASTER LEDspot LV AR111

      MAS LEDspotLV D 10-50W 827 AR111 40D

      Order code: 71850500

      Full Product Code: 871829171850500

      Downloads

      Data sheet
      Size:834.5 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    G53  [ G53]
    Nominal lifetime (nom.)
    40000 h
    Switching cycle
    50000X
    Technical type
    10-50W
    Light Technical
    Colour code
    827  [ CCT of 2700K]
    Beam Angle (Nom)
    40 °
    Luminous flux (nom.)
    580 lm
    Luminous flux (rated) (nom.)
    580 lm
    Luminous intensity (nom.)
    1250 cd
    Colour designation
    Warm White (WW)
    Rated beam angle
    40 °
    Correlated colour temperature (nom.)
    2700 K
    Luminous efficacy (rated) (nom.)
    58.00 lm/W
    Colour consistency
    <6
    Color rendering index (nom.)
    80
    LLMF at end of nominal lifetime (nom.)
    70 %
    Luminous Flux In 90° Cone (Rated)
    580 lm
    Operating and Electrical
    Input frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    10 W
    Lamp current (nom.)
    1100 mA
    Wattage equivalent
    50 W
    Starting time (nom.)
    1 s
    Warm-up time to 60% light (nom.)
    instant full light
    Power factor (nom.)
    0.5
    Voltage (Nom)
    12 V
    Controls and Dimming
    Dimmable
    Yes
    Approval and Application
    Suitable for accent lighting
    Yes
    Energy efficiency label (EEL)
    A
    Energy Consumption kWh/1000 h
    11 kWh
    Product Data
    Full product code
    871829171850500
    Order product name
    MAS LEDspotLV D 10-50W 827 AR111 40D
    EAN/UPC – product
    8718291718505
    Order code
    71850500
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    6
    Material no. (12NC)
    929000260802
    Net weight (piece)
    0.120 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    G53
    G53
