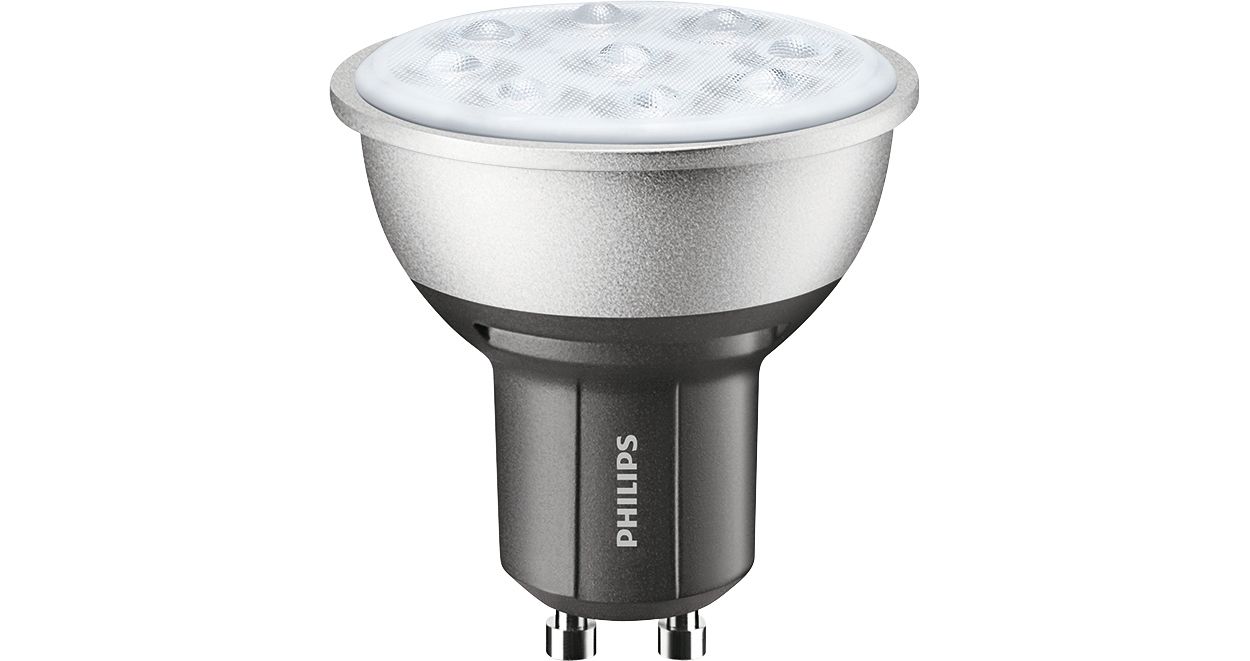

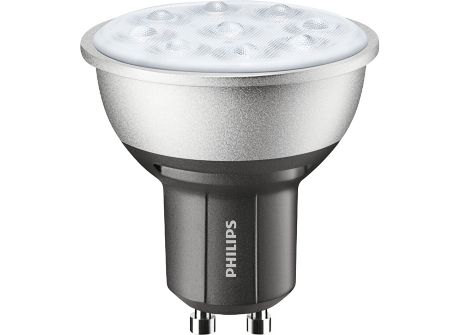

MAS LEDspotMV DimTone 4.5-50W GU10 25D

Specifications Show all

General Information

Cap base	GU10  [ GU10]
Nominal lifetime (nom.)	50000 h
Switching cycle	50000X
Technical type	4.5-50W

Light Technical

Colour code	822-827  [ tunable warm white]
Beam Angle (Nom)	25 °
Light distribution	25D  [ Medium beam]
Luminous flux (nom.)	385 lm
Luminous flux (rated) (nom.)	385 lm
Luminous intensity (nom.)	1400 cd
Colour designation	Warm White (WW)
Rated beam angle	25 °
Correlated colour temperature (nom.)	2200-2700 K
Luminous efficacy (rated) (nom.)	78.89 lm/W
Colour consistency	<6
Color rendering index (nom.)	80
LLMF at end of nominal lifetime (nom.)	70 %
Luminous Flux In 90° Cone (Rated)	355 lm

Operating and Electrical

Input frequency	50 to 60 Hz
Power (Rated) (Nom)	4.5 W
Lamp current (nom.)	25 mA
Wattage equivalent	50 W
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	instant full light
Power factor (nom.)	0.5
Voltage (Nom)	220-240 V

Temperature

T-Case maximum (nom.)

75 °C

Controls and Dimming

Dimmable

Yes

Approval and Application

Suitable for accent lighting	Yes
Energy efficiency label (EEL)	A+
Energy Consumption kWh/1000 h	5 kWh

Product Data

Full product code	871869643840400
Order product name	MAS LEDspotMV DimTone 4.5-50W GU10 25D
EAN/UPC – product	8718696438404
Order code	43840400
Numerator – quantity per pack	1
Numerator – packs per outer box	10
Material no. (12NC)	929001130802
Net weight (piece)	0.036 kg
