    • MASTER LEDspot PAR - The energy-saving alternative for lighting in public areas

      MAS LEDspot D 9.5-75W 827 PAR30S 25D
      LED

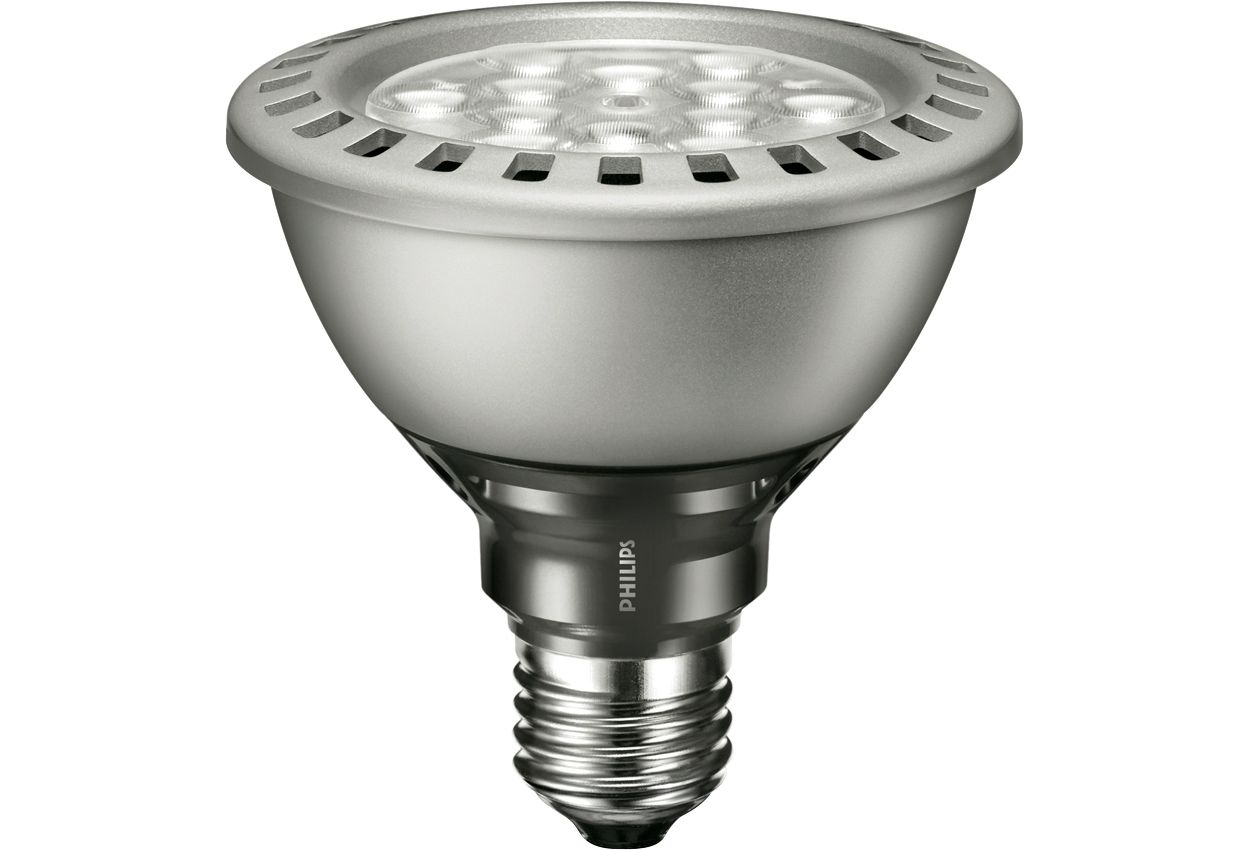

      MAS LEDspot D 9.5-75W 827 PAR30S 25D
      MASTER LEDspot PAR

      MAS LEDspot D 9.5-75W 827 PAR30S 25D

      Order code: 71434700

      Full Product Code: 871829171434700

      Downloads

      Data sheet
      Size:669.0 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    E27  [ E27]
    Nominal lifetime (nom.)
    40000 h
    Switching cycle
    50000X
    Technical type
    9.5-75W
    Light Technical
    Colour code
    827  [ CCT of 2700K]
    Beam Angle (Nom)
    25 °
    Luminous flux (nom.)
    650 lm
    Luminous flux (rated) (nom.)
    650 lm
    Luminous intensity (nom.)
    3500 cd
    Colour designation
    Warm White (WW)
    Rated beam angle
    25 °
    Correlated colour temperature (nom.)
    2700 K
    Luminous efficacy (rated) (nom.)
    68.42 lm/W
    Colour consistency
    <6
    Color rendering index (nom.)
    80
    LLMF at end of nominal lifetime (nom.)
    70 %
    Luminous Flux In 90° Cone (Rated)
    650 lm
    Operating and Electrical
    Input frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    9.5 W
    Lamp current (nom.)
    46 mA
    Wattage equivalent
    75 W
    Starting time (nom.)
    0.5 s
    Warm-up time to 60% light (nom.)
    instant full light
    Power factor (nom.)
    0.9
    Voltage (Nom)
    220-240 V
    Controls and Dimming
    Dimmable
    Yes
    Approval and Application
    Suitable for accent lighting
    Yes
    Energy efficiency label (EEL)
    A+
    Energy Consumption kWh/1000 h
    10 kWh
    Product Data
    Full product code
    871829171434700
    Order product name
    MAS LEDspot D 9.5-75W 827 PAR30S 25D
    EAN/UPC – product
    8718291714347
    Order code
    71434700
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    10
    Material no. (12NC)
    929000258802
    Net weight (piece)
    0.321 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    E27
    E27
