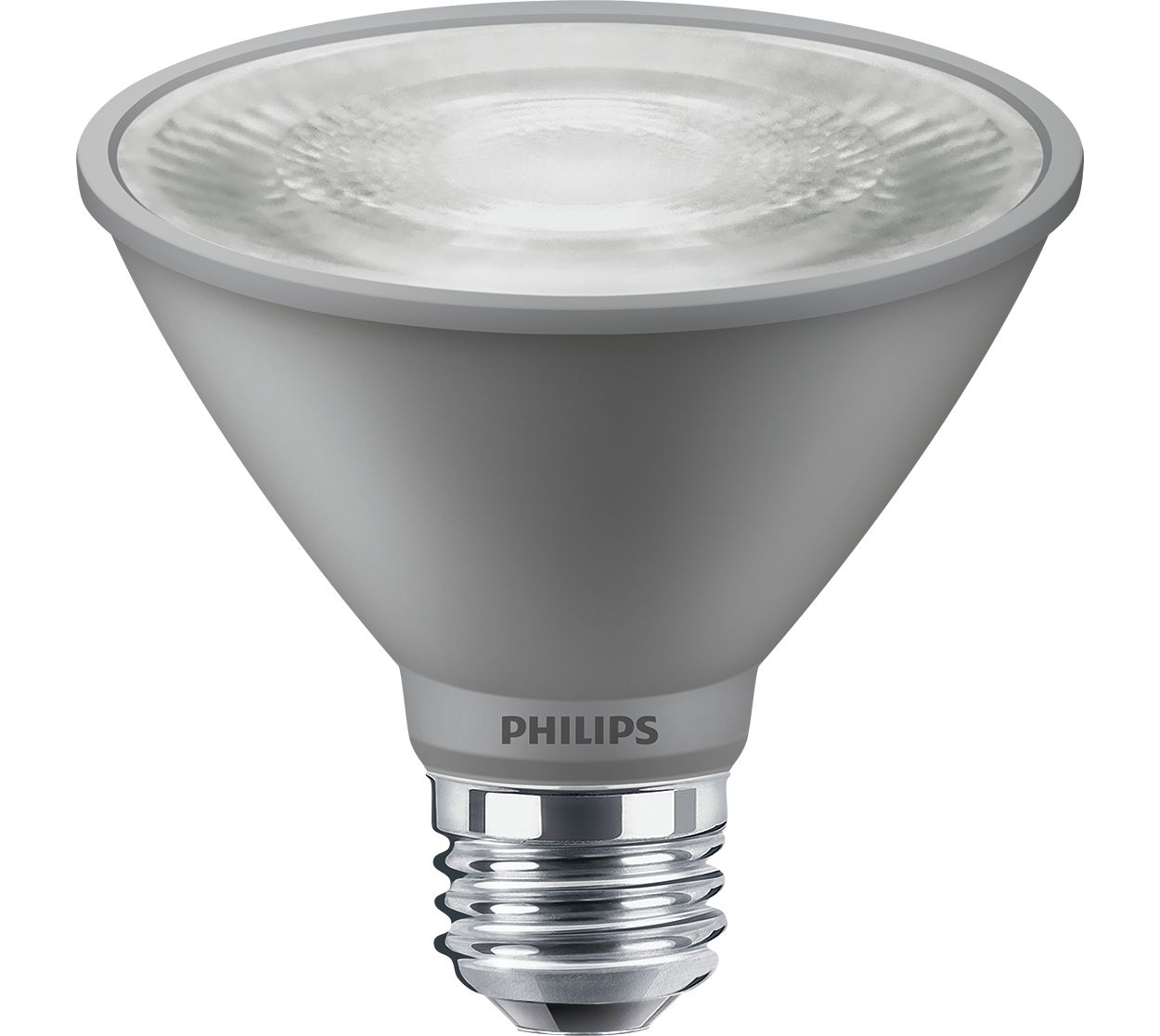

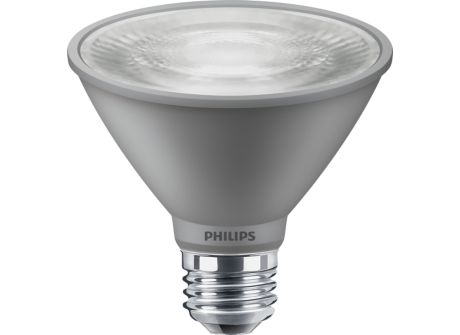

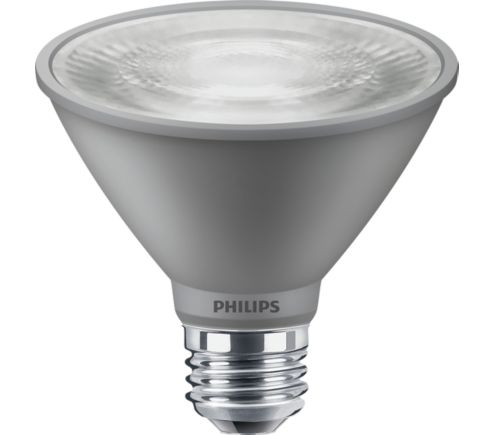

Master LED 12-120W PAR30s 827 25D EER1

Specifications Show all

Operating and Electrical

Voltage (Nom)	220 V
Starting Time (Nom)	0.8 s
Input Frequency	50 to 60 Hz
Line Frequency	50 to 60 Hz
Wattage Equivalent	120 W
Power Factor (Fraction)	0.9
Lamp Current (Nom)	60 mA
Warm-up time to 60% light	0.8 s

Approval and Application

Energy Consumption kWh/1000 h	12 kWh
Suitable For Accent Lighting	Yes
EU RoHS compliant	Yes

Product Data

Full product name	Master LED 12-120W PAR30s 827 25D EER1
Material number (12NC)	929001918808
Full product code	871869682704800
Numerator - Packs per outer box	6
Order code	929001918808
Order product name	Master LED 12-120W PAR30s 827 25D EER1
EAN/UPC - Case	8718696827055
Numerator - Quantity Per Pack	1

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape

PAR30S  [PAR 3.75 inch/95mm Short]

General Information

Nominal lifetime	15,000 hour(s)
Switching Cycle	50,000
Lighting Technology	LED
Cap-Base	E26  [Single Contact Medium Screw]

Temperature

T-Case Maximum (Nom)

90 °C

Light Technical

Luminous Efficacy (rated) (Nom)	108.00 lm/W
LLMF At End Of Nominal Lifetime (Nom)	70 %
Correlated Color Temperature (Nom)	2700 K
Luminous Intensity (Nom)	3,200 cd
Color Code	827  [CCT of 2700K]
Beam Angle (Nom)	25 degree(s)
Color Consistency	<6
Color rendering index (CRI)	80
Color Designation	Warm White (WW)
Luminous Flux	1,300 lumen
