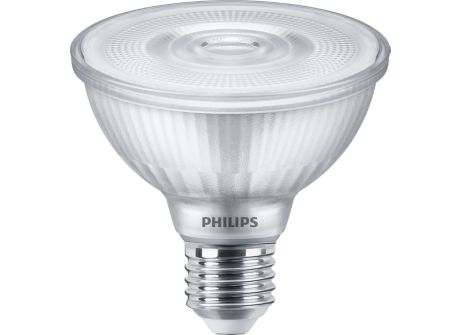

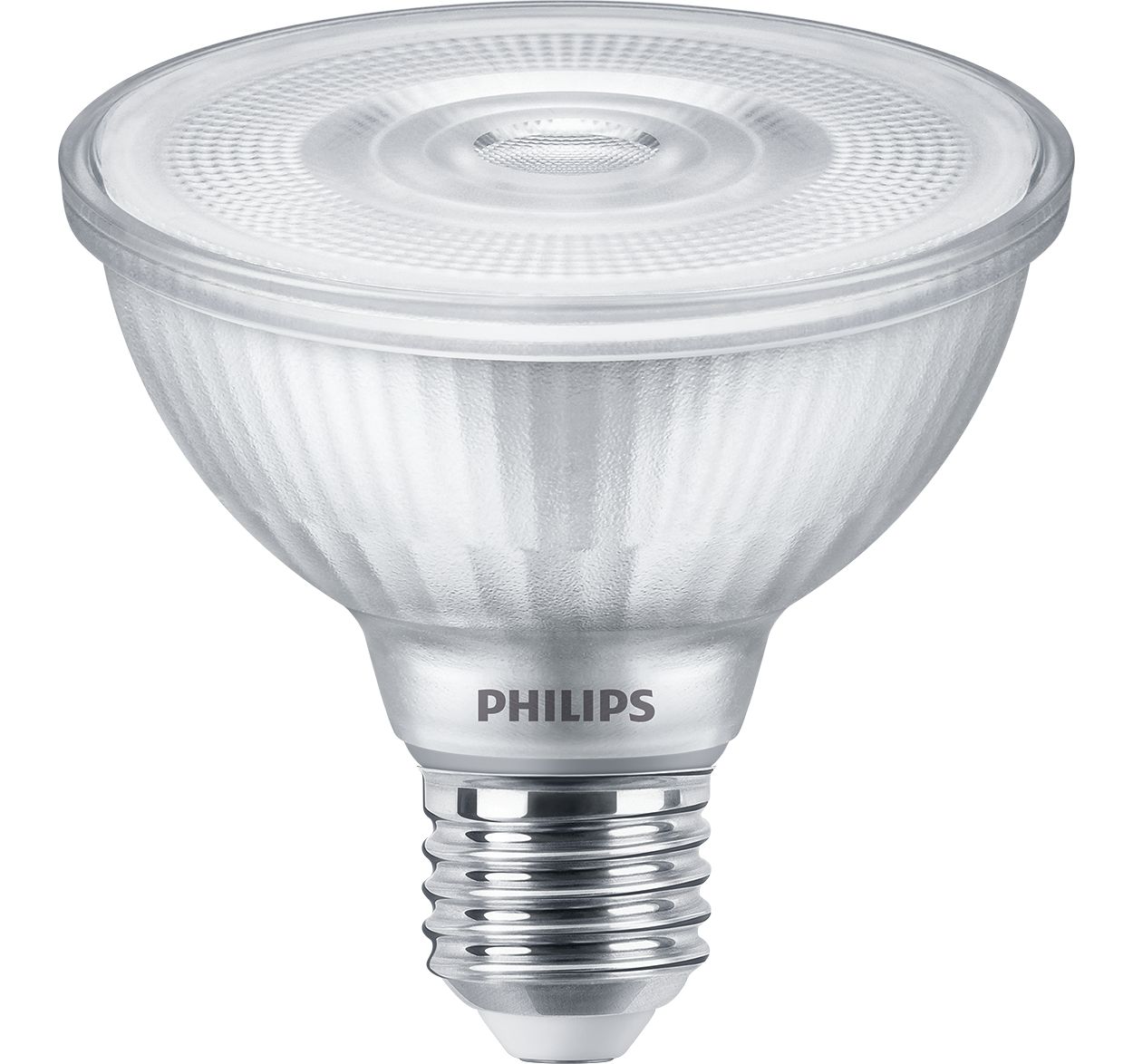

MAS LEDspot CLA D 9.5-75W 830 PAR30S 25D

Specifications Show all

Operating and Electrical

Voltage (Nom)	220-240 V
Starting Time (Nom)	0.5 s
Input Frequency	50 to 60 Hz
Line Frequency	50 to 60 Hz
Wattage Equivalent	75 W
Power Factor (Fraction)	0.85
Lamp Current (Nom)	48 mA
Warm-up time to 60% light	0.5 s

Approval and Application

Energy Consumption kWh/1000 h	10 kWh
Suitable For Accent Lighting	Yes
EU RoHS compliant	Yes
EPREL Registration Number	391928
Energy Efficiency Class	F
CE mark	Yes

Product Data

Full product name	MAS LEDspot CLA D 9.5-75W 830 PAR30S 25D
Full product code	871869976862100
Material number (12NC)	929002338702
Numerator - Packs per outer box	6
Order code	929002338702
Order product name	MAS LEDspot CLA D 9.5-75W 830 PAR30S 25D
EAN/UPC - Case	8718699768638
Numerator - Quantity Per Pack	1

Controls and Dimming

Dimmable

Only with specific dimmers

Mechanical and Housing

Bulb Shape

PAR30S  [PAR 3.75 inch/95mm Short]

General Information

Nominal lifetime	25,000 hour(s)
Switching Cycle	50,000
Lighting Technology	LED
Cap-Base	E27  [E27]
Flux measurement reference	Narrow Cone

Temperature

T-Case Maximum (Nom)

70 °C

Light Technical

Luminous Efficacy (rated) (Nom)	80.00 lm/W
LLMF At End Of Nominal Lifetime (Nom)	70 %
Correlated Color Temperature (Nom)	3000 K
Luminous Intensity (Nom)	2,400 cd
Color Code	830  [CCT of 3000K]
Beam Angle (Nom)	25 degree(s)
Color Consistency	<6
Color rendering index (CRI)	80
Color Designation	White (WH)
Luminous Flux in 90° Cone (Rated)	760 lumen
Luminous Flux	760 lumen
