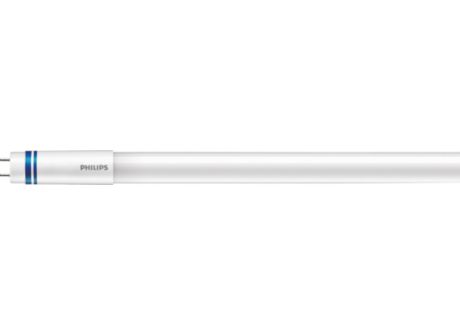

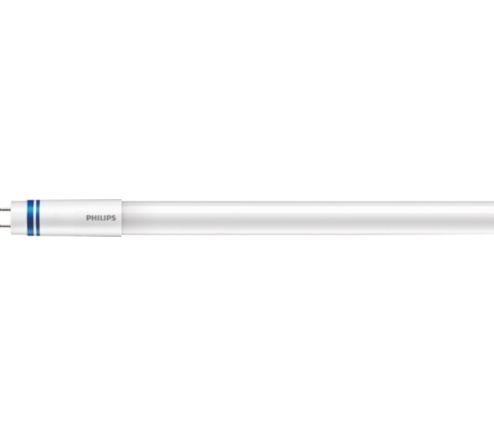

      MASTER LEDtube HF 1200mm SO 16.5W 865 T8 RS
      LED
      MASTER LEDtube HF 1200mm SO 16.5W 865 T8 RS
      MASTER LEDtube InstantFit HF

      MASTER LEDtube HF 1200mm SO 16.5W 865 T8 RS

      Order code: 72887000

      Full Product Code: 871829172887000

      Downloads

      Data sheet
      Size:146.5 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    G13  [ Medium Bi-Pin Fluorescent]
    Main application
    Industrial
    Nominal lifetime (nom.)
    50000 h
    Switching cycle
    50000X
    B50L70
    50000 h
    Light Technical
    Colour code
    865  [ CCT of 6500K]
    Beam Angle (Nom)
    160 °
    Luminous flux (nom.)
    1600 lm
    Luminous flux (rated) (nom.)
    1600 lm
    Rated beam angle
    160 °
    Correlated colour temperature (nom.)
    6500 K
    Colour consistency
    <6
    Color rendering index (nom.)
    83
    LLMF at end of nominal lifetime (nom.)
    70 %
    Operating and Electrical
    Input frequency
    25000-75000 Hz
    Power (Rated) (Nom)
    16.5 W
    Lamp current (nom.)
    280 mA
    Starting time (nom.)
    0.5 s
    Warm-up time to 60% light (nom.)
    instant full light s
    Power factor (nom.)
    0.9
    Voltage (Nom)
    50-100 V
    Temperature
    T ambient (max.)
    35 °C
    T ambient (min.)
    -20 °C
    T storage (max.)
    65 °C
    T storage (min.)
    -40 °C
    T-Case maximum (nom.)
    45 °C
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Product length
    1200 mm
    Approval and Application
    Energy-saving product
    Yes
    Suitable for accent lighting
    No
    Energy efficiency label (EEL)
    A
    Approval marks
    CE marking
    RoHS compliance
    KEMA Keur certificate
    Energy Consumption kWh/1000 h
    20 kWh
    Product Data
    Full product code
    871829172887000
    Order product name
    MASTER LEDtube HF 1200mm SO 16.5W 865 T8 RS
    EAN/UPC – product
    8718291728870
    Order code
    72887000
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    10
    Material no. (12NC)
    929000284502
    Net weight (piece)
    0.360 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    G13
    G13
