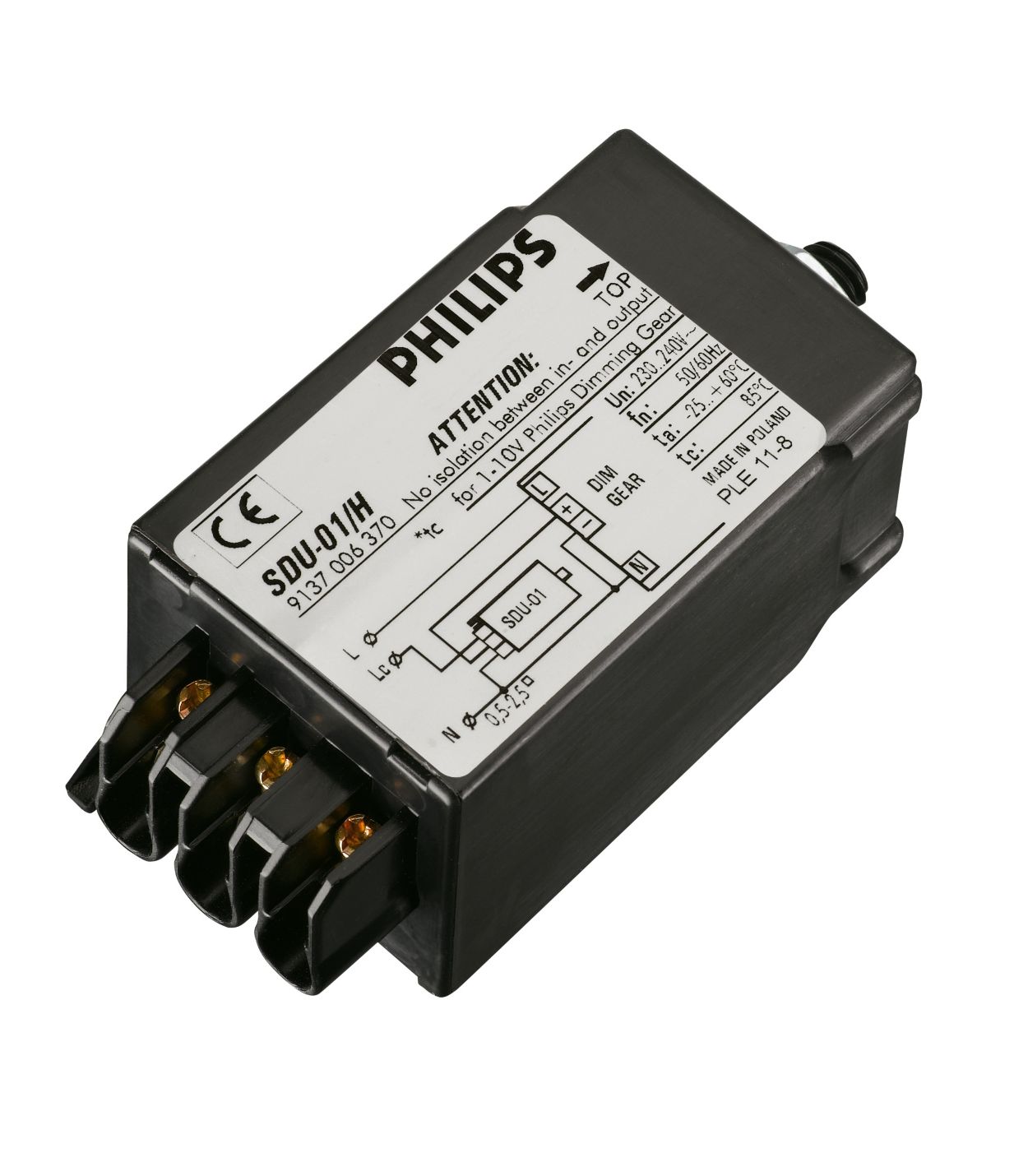

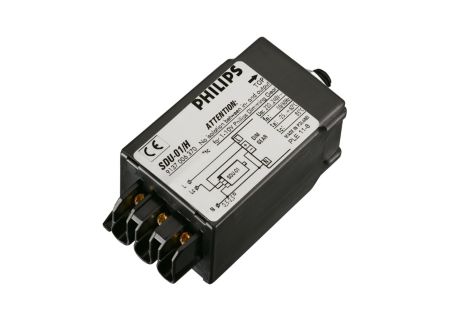

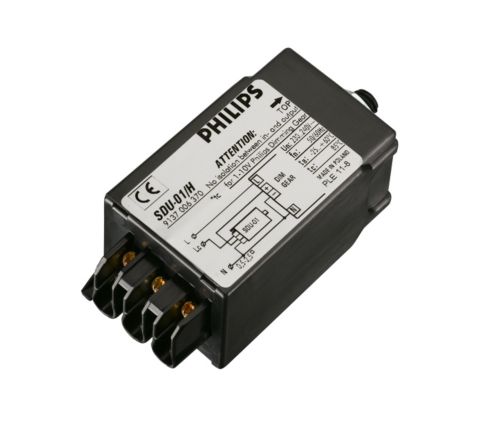

SDU 01/L 220-240V 50/60Hz

Specifications Show all

General Information

Application code

01/L

Operating and Electrical

Input voltage	220 to 240 V
Input frequency	50 to 60 Hz
Mains voltage performance (AC)	-8%-+6%
Mains voltage safety (AC)	-10%-+10%

Wiring

Wire strip length	6.0 mm
Ballast contact wire cross section	0.50-2.50 mm²
Connector type	Screw

Temperature

T ambient (max.)	60 °C
T ambient (min.)	-25 °C
T storage (max.)	90 °C
T storage (min.)	-30 °C
T-Case maximum (max.)	85 °C

Controls and Dimming

Control interface	Control-line
Regulating level power	100%-50%

Mechanical and Housing

Housing

STUD-89

Approval and Application

EMI 9 kHz... 30 MHz	EN55015
EMI 30 MHz... 1,000 MHz	EN 55022 Class A
Safety standard	IEC 61347-2-11
Environmental standard	ISO 14001
Harmonic current emission standard	IEC 61000-3-2
Vibration standard	IEC68-2-6 F c
Bumps standard	IEC 68-2-29 Eb
Humidity standard	EN 61347-2-3 ca
Approval marks	CE marking	ENEC certificate

Product Data

Full product code	872790080086900
Order product name	SDU-01/L 220-240V 50/60Hz
EAN/UPC – product	8711500880819
Order code	80086900
Numerator – quantity per pack	1
Numerator – packs per outer box	20
Material no. (12NC)	913700637166
Net weight (piece)	0.041 kg
