Specifications Show all

General Information

ANSI Code	S62
Lamp type	70W HPS
Number of lamps	1 piece/unit
Circuit type	HX-HPF
Ballast type	Magnetic HID
Base model	71A7941
Core size	3 X 4 (2 coil)
Suitable for outdoor use	Yes
Ignitor catalogue number	LI551-H4
Ignitor temperature rating	105°C
Capacitor value	7 MFD
Capacitor catalogue number	7C070L30RA
Capacitor requirements	280V
Capacitor temperature rating	105°C
Capacitor diameter/oval dimensions	1.25 in
Capacitor height	2.75 in
Automatic restart	No

Operating and Electrical

Input voltage	480 V
Input frequency	60 Hz
Input current (open circuit)	0.36 A
Input current (starting)	0.21 A
Input current (short circuit)	0.15-0.25 A
Secondary short-circuit current	1.8-2.2 A
Constant wattage deviation	Within Trapezoid
Ballast factor (nom.)	1
Power factor (nom.)	0.90
Open circuit voltage	120 V
Input current (nom.)	0.21 A A
Input power (nom.)	93 W
Rated lamp power	70 W

Wiring

Wire strip length	0.5 mm
Wire length by colour	12"
Wire type	Stranded
Remote wiring configuration allowed	Yes
Max. ballast-lamp distance remote wiring	2'
Recommended fuse value	2 A

Approval and Application

Open circuit voltage test (volts)	110-130 V
Approval marks	ULR	CSA certificate	RoHS Compliant
Temperature marking	A
UL recognised	Yes
Hipot test (1 minute)	2000 V
Hipot test (2 seconds)	2500 V
UL insulation class	H(180°C)
UL temperature code	1029A

Product Data

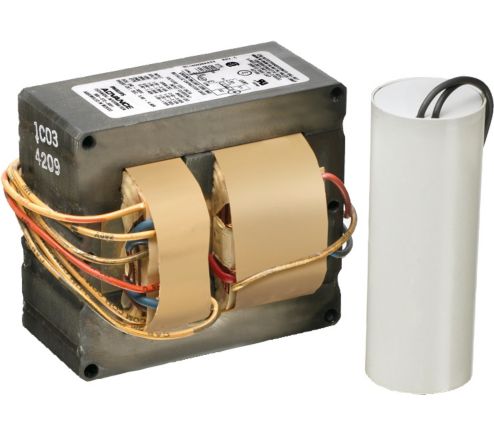

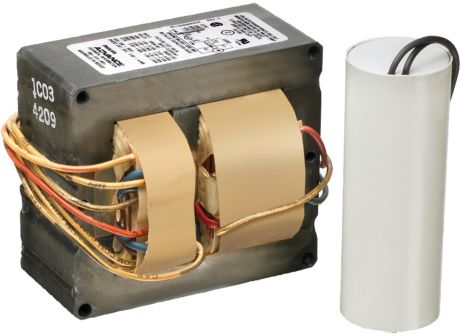

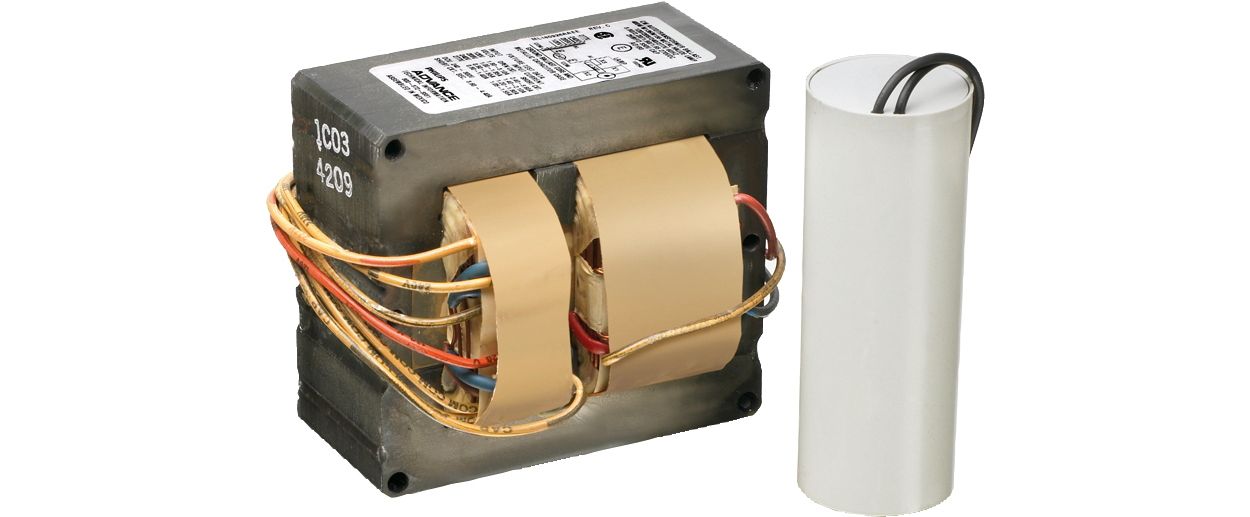

Order product name	CORE & COIL HID 71A7941500D
EAN/UPC – product	781087794159
Numerator – quantity per pack	1
Numerator – packs per outer box	6
Material no. (12NC)	913700537909
Net weight (piece)	2.763 kg
