Specifications Show all

General Information

ANSI Code	M47
Lamp type	1000W MH
Number of lamps	1 piece/unit
Circuit type	CWA
Ballast type	Magnetic HID
Base model	71A6572
Core size	4 1/4 x 6 (2 Coil)
Suitable for outdoor use	Yes
Ignitor catalogue number	NA
Ignitor temperature rating	NA
Capacitor value	24 MFD
Capacitor catalogue number	MD2409000
Capacitor requirements	480V
Capacitor temperature rating	90°C
Capacitor diameter/oval dimensions	1.75 in
Capacitor height	3.9 in
Automatic restart	No

Operating and Electrical

Input voltage	120/208/240/277 V
Input frequency	60 Hz
Input current (open circuit)	4.5/2.7/2.3/2.2 A
Input current (starting)	7.8/4/3.7/3.2 A
Input current (short circuit)	5.6-8.6/3.2-4.8/2.8-4.3/2.4-3.6 V
Secondary short-circuit current	5.2-6.4 A
Constant wattage deviation	10%
Ballast factor (nom.)	1
Power factor (nom.)	0.90
Open circuit voltage	430 V
Input current (nom.)	9/5.2/4.5/3.9 A A
Input power (nom.)	1080 W
Rated lamp power	1000 W

Wiring

Wire strip length	0.5 mm
Wire length by colour	12"
Wire type	Stranded
Remote wiring configuration allowed	Yes
Max. ballast-lamp distance remote wiring	Determined by AWG used
Recommended fuse value	20/15/10/10 A

Approval and Application

Open circuit voltage test (volts)	385-475 V
Approval marks	ULR	CSA certificate	RoHS Compliant
Temperature marking	D/B/B/B
UL recognised	Yes
Hipot test (1 minute)	2000 V
Hipot test (2 seconds)	2500 V
UL insulation class	H(180°C)
UL temperature code	1029D

Product Data

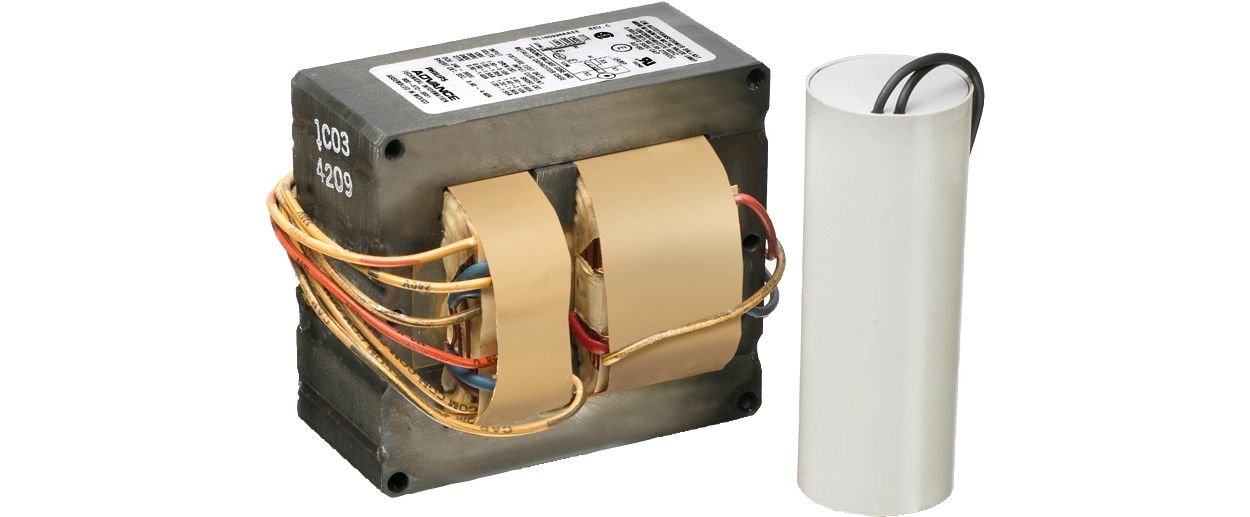

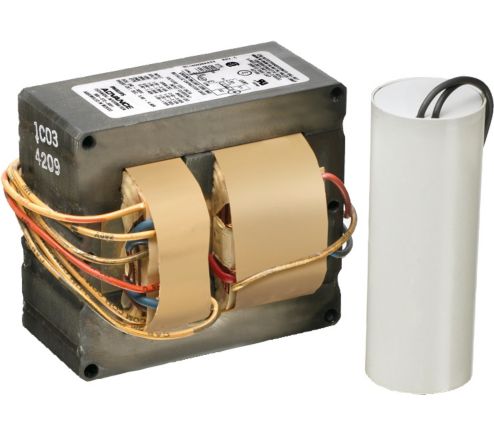

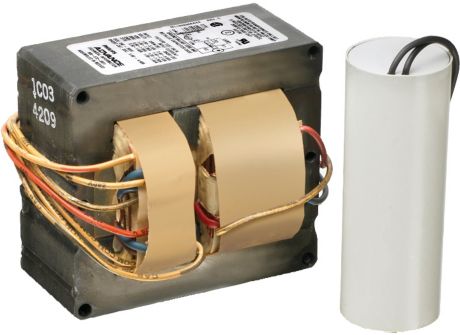

Order product name	CORE & COIL HID 71A6572001
EAN/UPC – product	781087657218
Numerator – quantity per pack	1
Numerator – packs per outer box	1
Material no. (12NC)	913700525609
Net weight (piece)	9.676 kg
