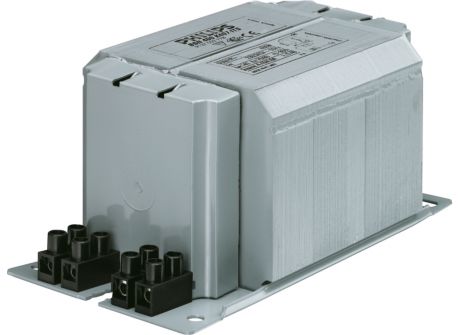

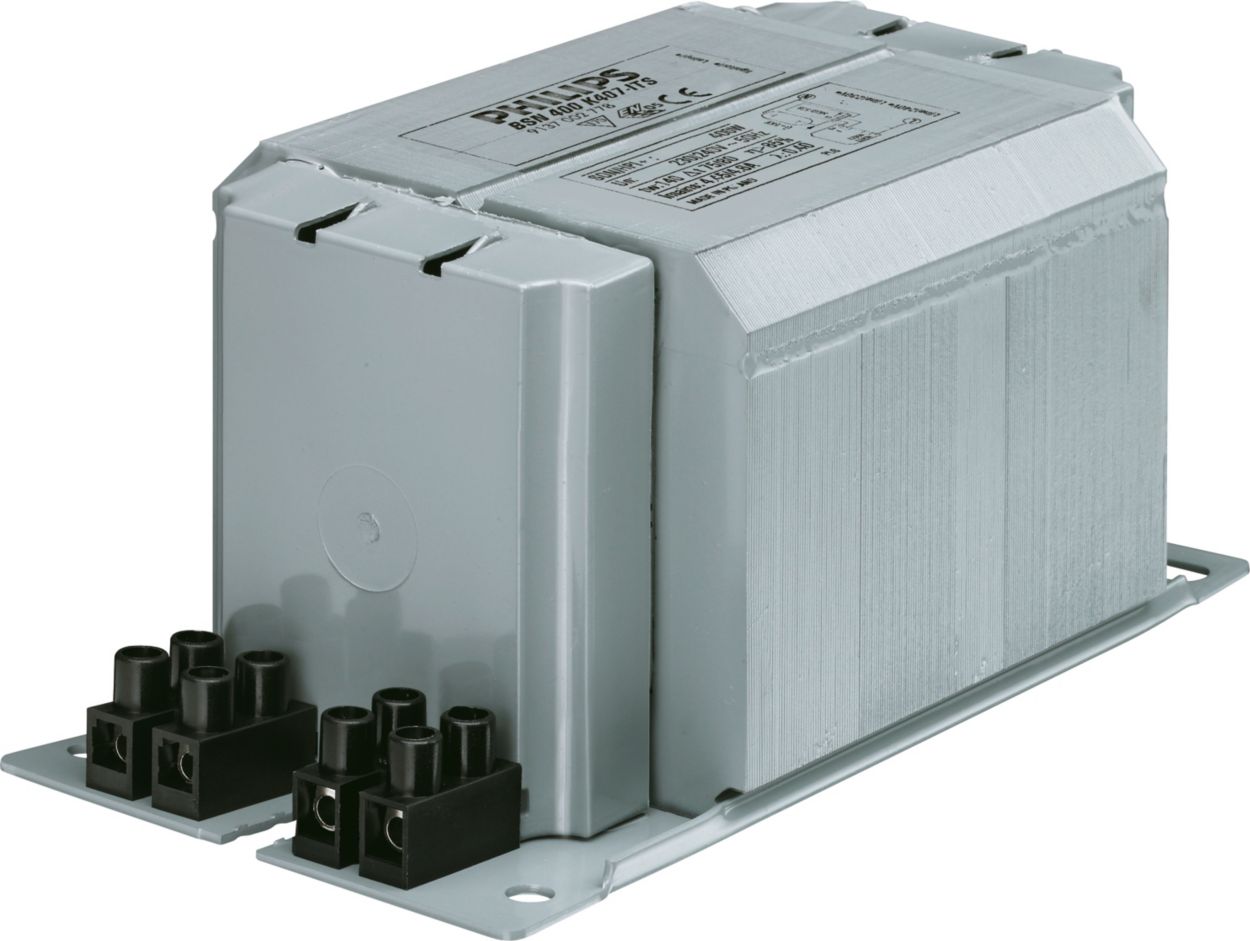

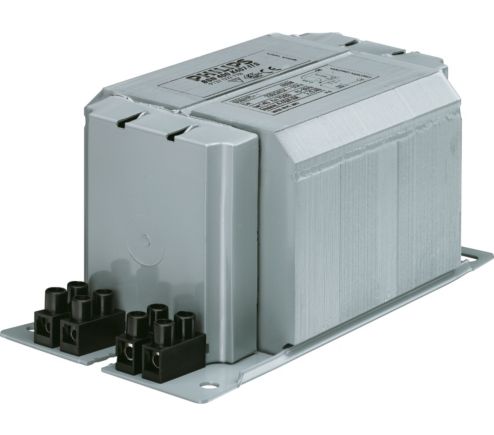

BSN 400 K407-ITS 230/240V 50Hz BC3-166

Specifications Show all

General Information

Application code	K407-A2-ITS
Design	BC3-166
Lamp type	SON/HPI
Number of lamps	1 piece/unit

Operating and Electrical

Input voltage	230 V (default) or 240 V
Input frequency	50 Hz
Power factor 100% load (nom.)	0.85
Mains voltage performance (AC)	-8%-+6%
Mains voltage safety (AC)	-10%-+10%
Input current with PF correction	2.20 A
Input current without PF Correction	4.45 A
Power factor without PF compensation (nom.)	0.40
Power losses (nom.)	33/34.5 W

Wiring

Wire strip length	7.0 mm
Ballast contact wire cross section	1.50-4.00 mm²
Connector type	Screw

System characteristics

Capacitor	45µF/250V
Rated ballast-lamp power	400 W
Recommended ignitor	for SON/CDO/CDM lamps ignitor SKD 578 (913700655366) or series digital SUD40 (913700193591)

Temperature

T storage (max.)	130 °C
T storage (min.)	-30 °C
T winding (max.)	130 °C
Delta-T normal conditions	80 °C

Approval and Application

Active temperature protection	Yes
Approval marks	CE marking	ENEC certificate

Product Data

Full product code	872790088704400
Order product name	BSN 400 K407-A2-ITS 230/240V 50Hz BC3
EAN/UPC – product	8711500881571
Order code	88704400
Numerator – quantity per pack	1
Numerator – packs per outer box	2
Material no. (12NC)	913700277826
Net weight (piece)	4.950 kg
