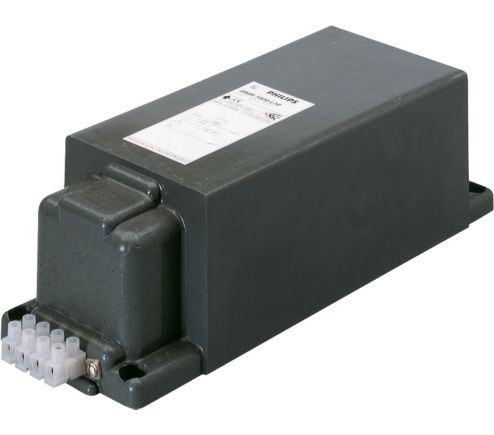

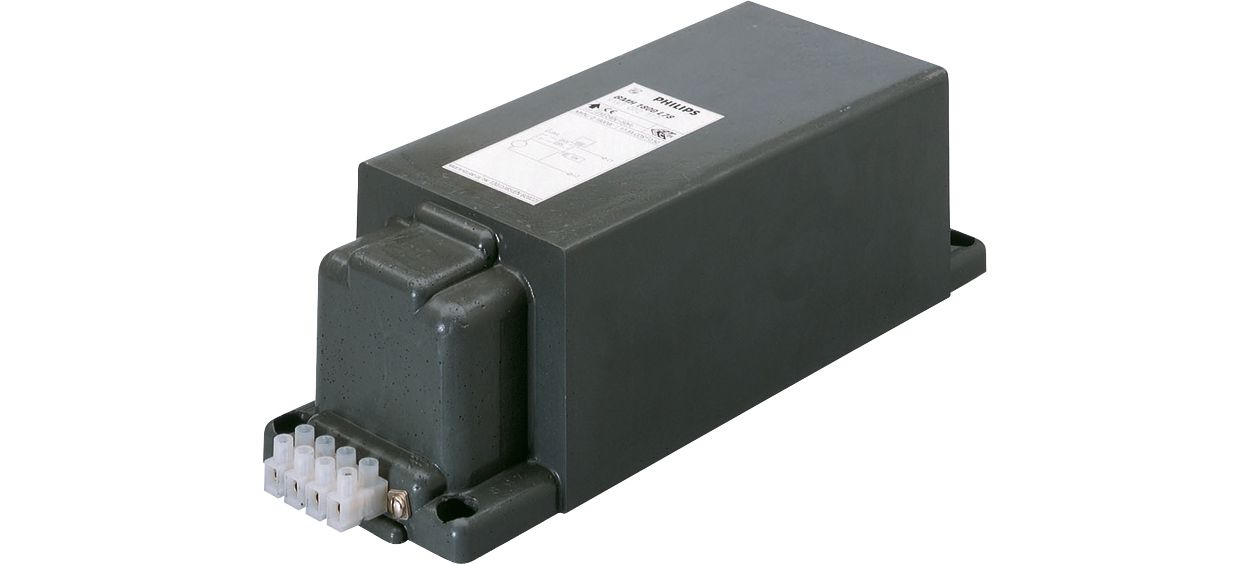

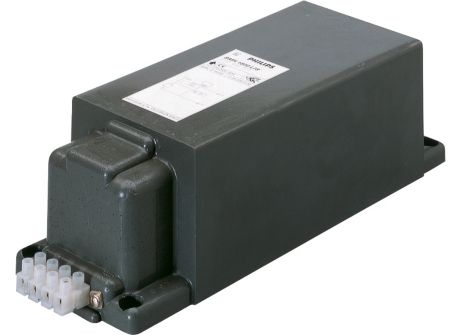

BHL 2000 L76 380/400/415V 50HZ HP-317

Specifications Show all

General Information

Application code	L76-A2
Design	HP-317
Lamp type	HPI
Number of lamps	1 piece/unit

Operating and Electrical

Input voltage	380 to 415 V
Input frequency	50 Hz
Input voltage (multi-tab)	380/400/415
Power factor 100% load (nom.)	0.87
Mains voltage performance (AC)	-8%-+6%
Mains voltage safety (AC)	-10%-+10%
Input current with PF correction	64.00 A
Input current without PF Correction	14.00 A
Power factor without PF compensation (nom.)	0.55
Power losses (nom.)	77.0 W

Wiring

Wire strip length	7.0 mm
Ballast contact wire cross section	0.70-6.00 mm²
Connector type	Screw

System characteristics

Rated ballast-lamp power	2000 W
Recommended ignitor	no ignitor for HPL-N for HPI-T ignitor SI54 (913619149966)

Temperature

T storage (max.)	80 °C
T storage (min.)	-25 °C
T winding (max.)	130 °C
Delta-T normal conditions	70 °C

Approval and Application

Approval marks

CE marking

ENEC certificate

Product Data

Full product code	871150006384700
Order product name	BHL 2000 L76-A2 380/400/415V 50Hz HP-317
EAN/UPC – product	8711500996664
Order code	06384700
Numerator – quantity per pack	1
Numerator – packs per outer box	1
Material no. (12NC)	913700217903
Net weight (piece)	17.000 kg
