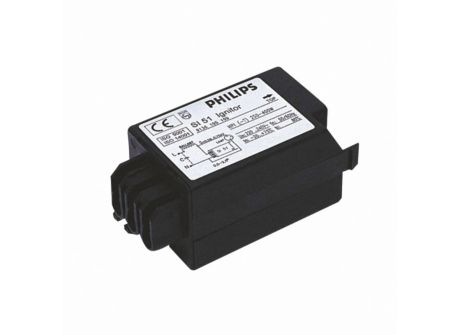

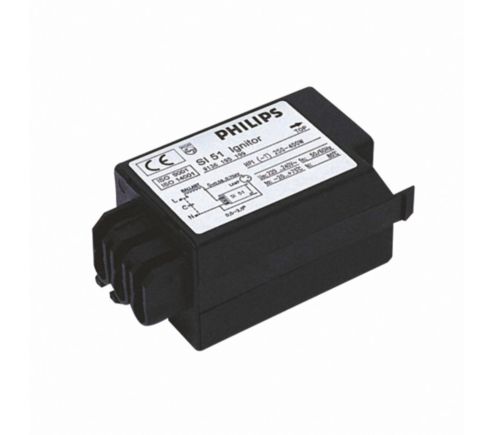

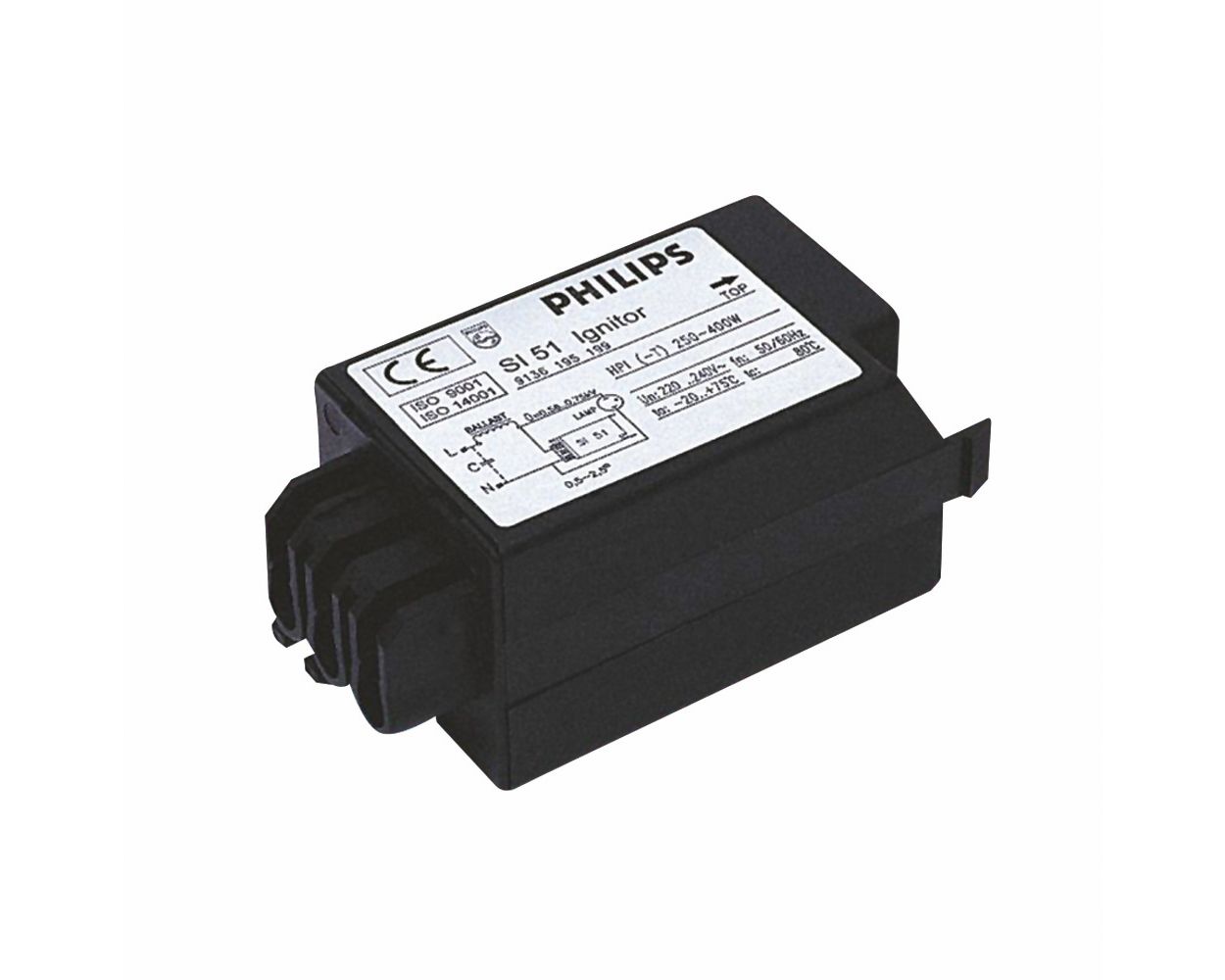

SN 58

Specifications Show all

General Information

Application code

58

Operating and Electrical

Input voltage	220 to 240 V
Input frequency	50 to 60 Hz
Ignition type	Semi-Parallel
Ignition voltage (max.)	5.0 kV
Ignition voltage (min.)	2.8 kV
Response voltage	190 V
Mains voltage performance (AC)	-8%-+6%
Mains voltage safety (AC)	-10%-+10%
Power losses (nom.)	0.2 W

Wiring

Ballast contact wire cross section	0.50-2.50 mm²
Connector type	Screw

Temperature

T ambient (max.)	85 °C
T ambient (min.)	-20 °C
T-Case maximum (max.)	90 °C

Mechanical and Housing

Housing

Akulon S223

Approval and Application

Approval marks

CE marking

ENEC certificate

Product Data

Full product code	697013372881900
Order product name	SN 58
EAN/UPC – product	6970133728819
Order code	72881900
Numerator – quantity per pack	1
Numerator – packs per outer box	48
Material no. (12NC)	913710010513
Net weight (piece)	0.049 kg
