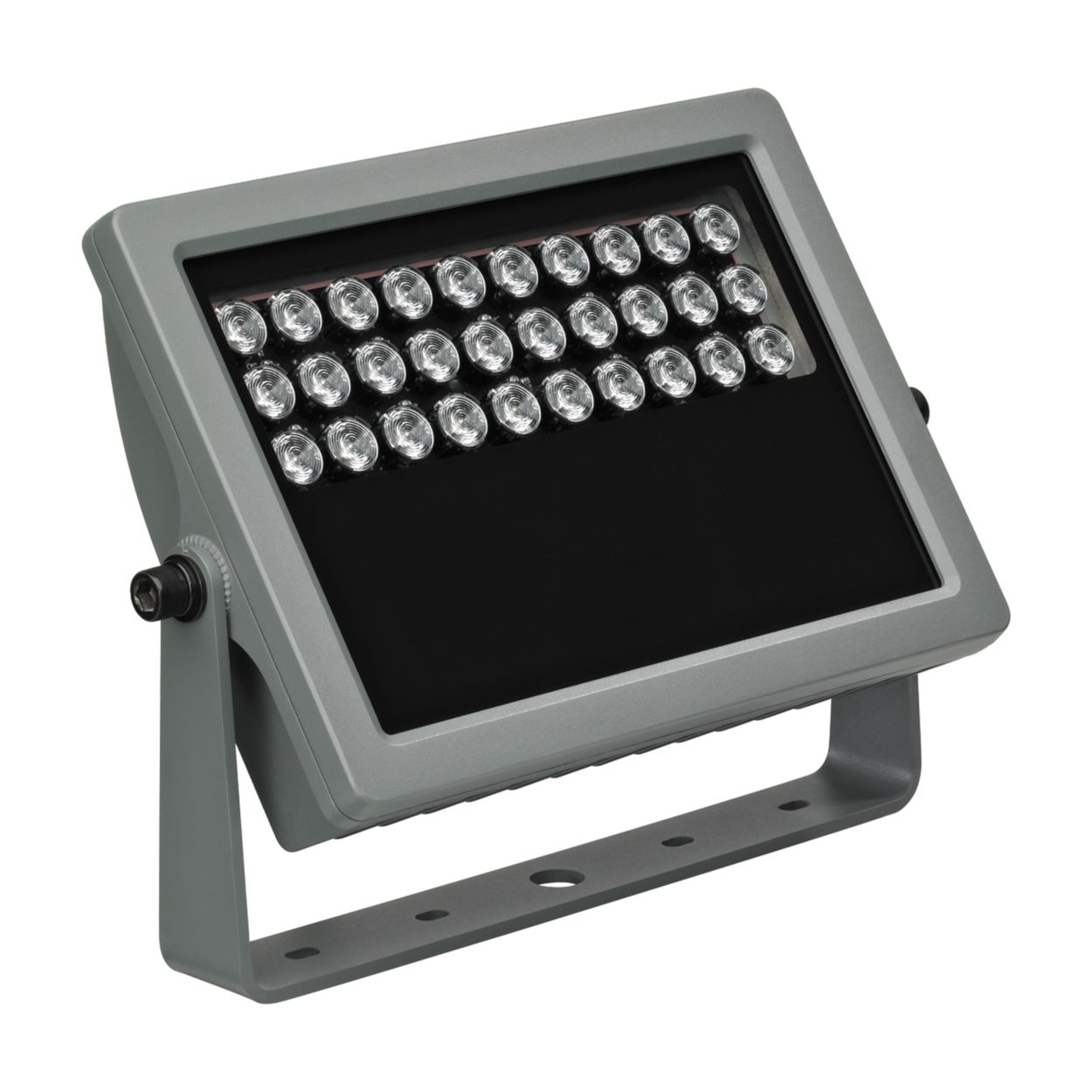

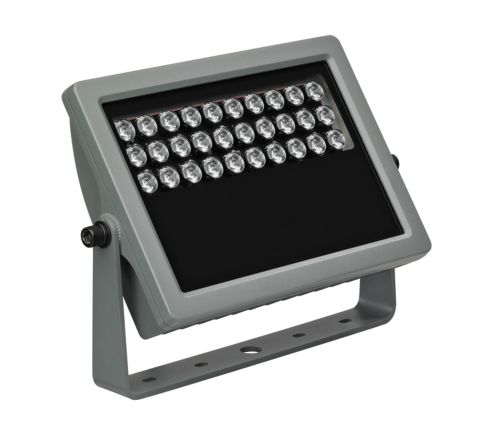

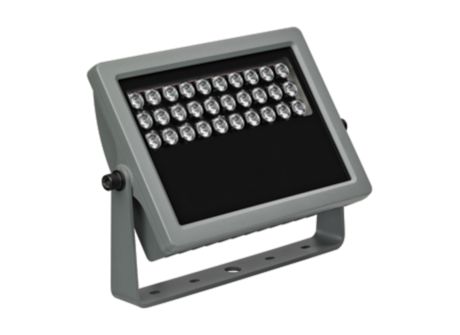

BCP436 BL 220-240 40 CE CQC

Specifications Show all

General Information

Lamp family code	LED-HB  [ LED High Brightness]
Light source colour	Blue
Light source replaceable	No
Driver included	Yes
Optical cover/lens type	GT  [ Tempered glass]
Luminaire light beam spread	40°
Protection class IEC	Safety class I (I)
CE mark	CE mark
CQC mark	CQC-mark
Outdoor optic type	Medium beam angle 40°
PSE mark	No
Angle	40°
Product Family Code	BCP436  [ VAYA FLOOD MP G2 MONO]

Operating and Electrical

Input voltage	220 to 240 V
Input frequency	50 to 60 Hz

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Housing material	Aluminum die-cast
Optic material	Glass
Optical cover/lens material	Glass
Optical cover/lens shape	Flat
Optical cover/lens finish	Clear

Approval and Application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK06  [ 1 J]

Application Conditions

Ambient temperature range

-40 to +40 °C

Product Data

Full product code	871829138696499
Order product name	BCP436 BL 220-240 40 CE CQC
EAN/UPC – product	8718291386964
Order code	38696499
Numerator – quantity per pack	1
Numerator – packs per outer box	2
Material no. (12NC)	912400133991
Net weight (piece)	5.670 kg
