• Red, Green and Blue fluorescent lighting

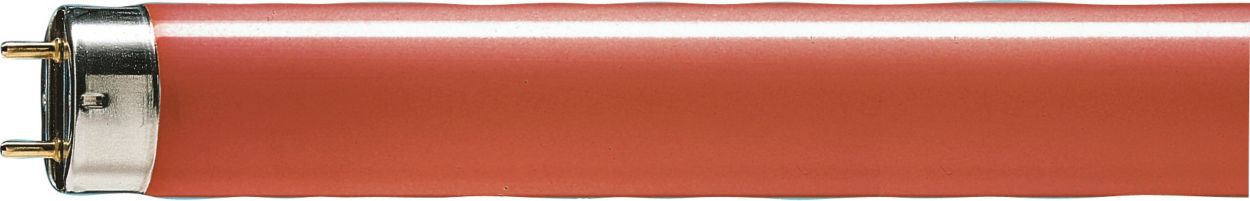

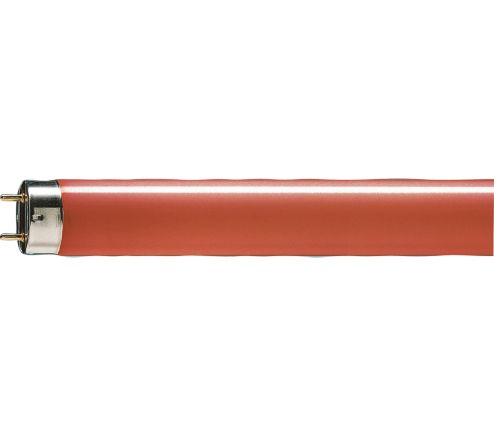

    TL-D Colored 36W Red 1SL/25

    TL-D Colored 36W Red 1SL/25

    Full Product Code: 871150072748040

    Order code: 72748040

    Downloads

    Leaflet
    Size:456.1 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Cap base
G13  [ Medium Bi-Pin Fluorescent]
Life to 10% failures (nom.)
12000 h
Life to 50% failures (nom.)
15000 h
Light Technical
Colour code
150
Luminous flux (nom.)
55 lm
Luminous flux (rated) (nom.)
55 lm
Colour designation
Red (HO)
Chromaticity coordinate X (nom.)
718
Chromaticity coordinate Y (nom.)
282
LLMF 2000 h Rated
85 %
Operating and Electrical
Power (Rated) (Nom)
36.0 W
Lamp current (nom.)
0.440 A
Voltage (Nom)
103 V
Temperature
Design temperature (nom.)
25 °C
Controls and Dimming
Dimmable
Yes
Approval and Application
Energy efficiency label (EEL)
E
Mercury (Hg) content (nom.)
13.0 mg
Energy Consumption kWh/1000 h
51 kWh
Product Data
Full product code
871150072748040
Order product name
TL-D Colored 36W Red 1SL/25
EAN/UPC – product
8711500727480
Order code
72748040
Numerator – quantity per pack
1
Numerator – packs per outer box
25
Material no. (12NC)
928048501505
Net weight (piece)
135.000 g

Eco passport - Our environmental product specifications overview

Philips cares about the environment and society at large, and strongly supports eco-design of products.

Installation Diagrams
G13
G13
Photometrics
Lightcolour TL-D /150
Lightcolour TL-D /150
