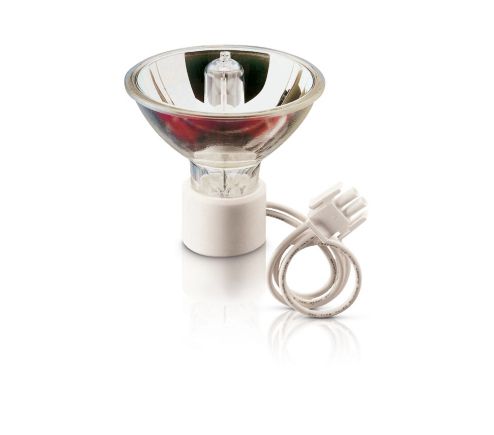

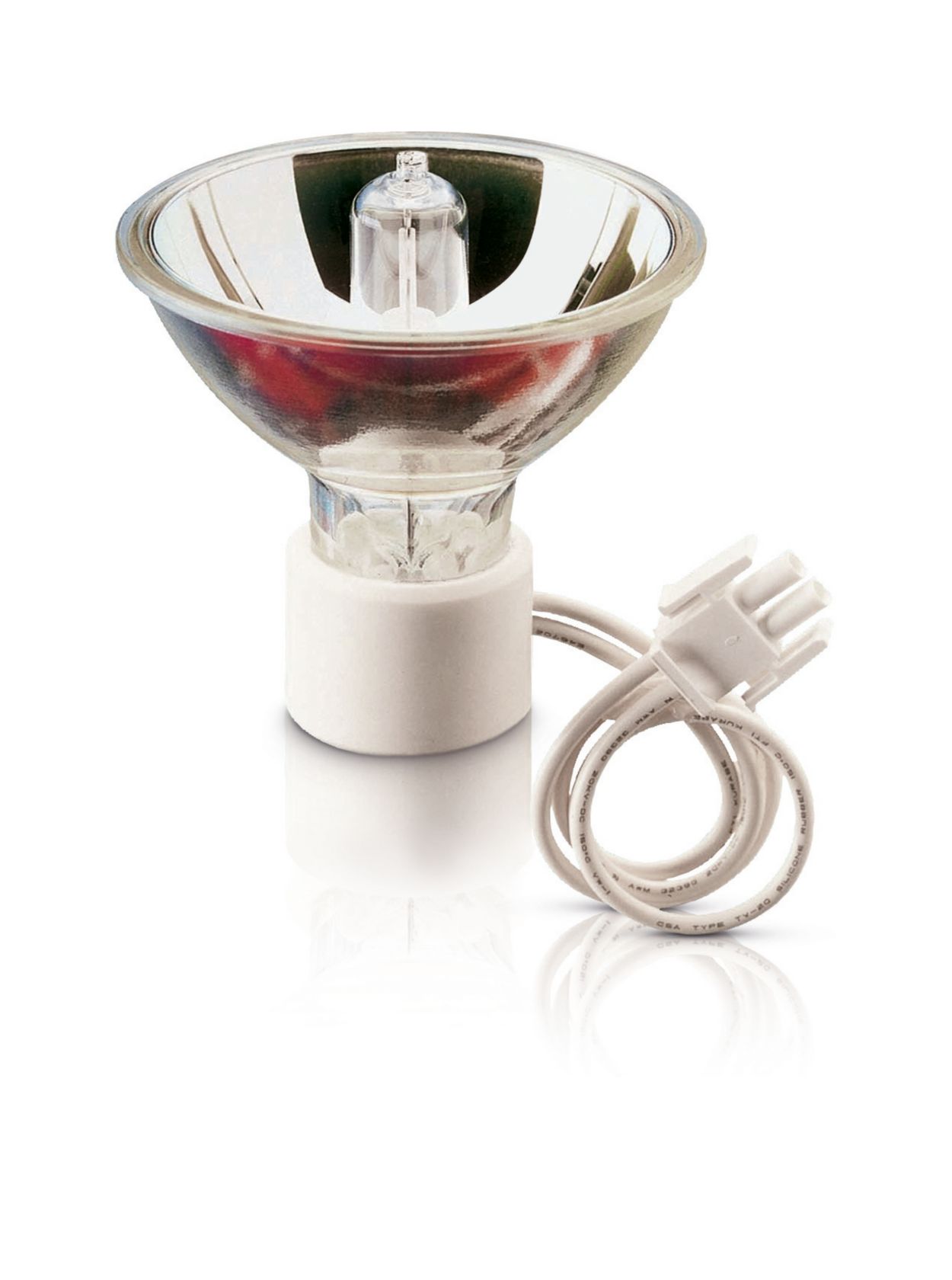

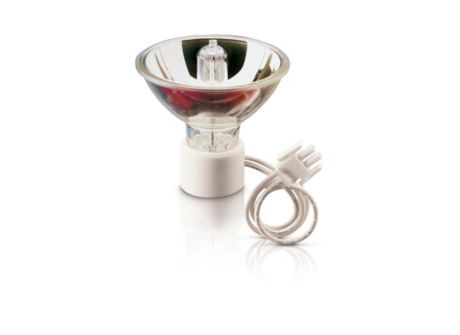

CDM-SA/R 150W/942 UNP/1

Specifications Show all

General Information

Cap base	CERAMICCAP-CABLE  [ Ceramic Cap-Cable (C)]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Fiber Optics
Life to 50% failures (nom.)	6000 h

Light Technical

Colour code	942  [ CCT of 4200K]
Luminous flux (min.)	2200 lm
Luminous flux (nom.)	2650 lm
Colour designation	Cool White (CW)
Chromaticity coordinate X (nom.)	366
Chromaticity coordinate Y (nom.)	353
Correlated colour temperature (nom.)	4200 K
Luminous efficacy (rated) (nom.)	16.5 lm/W
Color rendering index (nom.)	96

Operating and Electrical

Power (Rated) (Nom)	159 W
Lamp current (nom.)	1.76 A
Ignition supply voltage (min.)	198 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Cap base information

Cable 250mm

Luminaire Design Requirements

Bulb temperature (max.)	650 °C
Pinch temperature (max.)	350 °C

Product Data

Full product code	871150020150800
Order product name	CDM-SA/R 150W/942 UNP/1
EAN/UPC – product	8727900783490
Order code	20150800
Numerator – quantity per pack	1
Numerator – packs per outer box	1
Material no. (12NC)	928086805303
Net weight (piece)	0.192 kg
