    • TUV Dynapower system- Extreme reliability

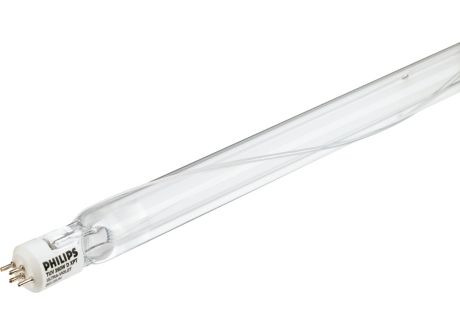

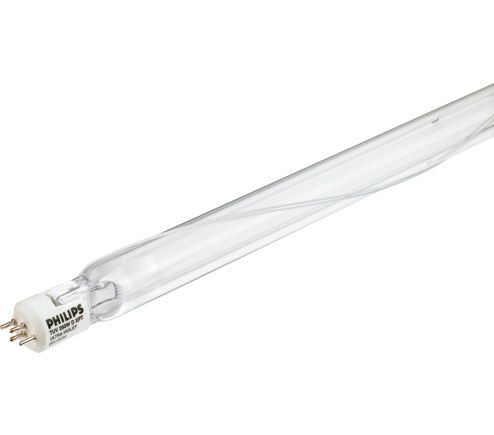

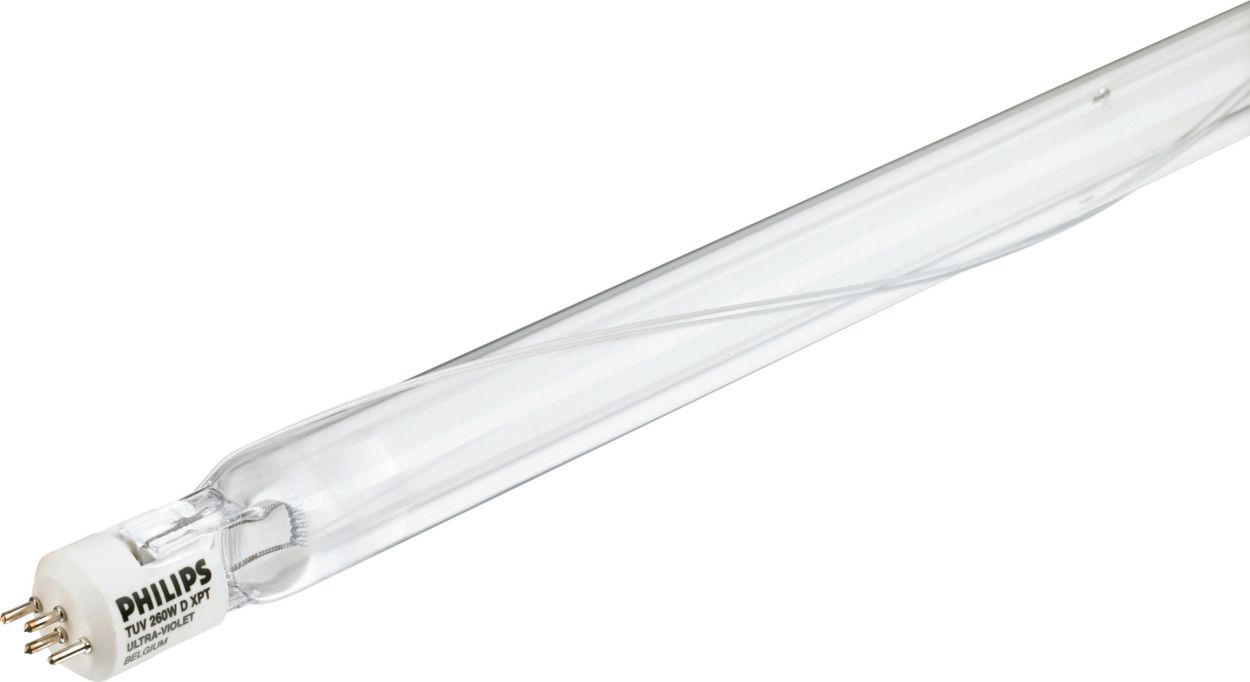

      TUV 335W XPT SE UNP/20
      TUV 335W XPT SE UNP/20
      TUV Dynapower system

      TUV 335W XPT SE UNP/20

      Order code: 21137805

      Full product code: 871150021137805

      Downloads

      Leaflet
      Size:2.4 MB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    G5.4X17Q  [ G5.4x17q]
    Operating position
    P10  [ Parallel +/-10D or Horizontal(HOR)]
    Main application
    Disinfection
    Operating and Electrical
    Power (Rated) (Nom)
    335 W
    Lamp current (nom.)
    3.06 A
    Controls and Dimming
    Dimmable
    Yes
    Luminaire Design Requirements
    Bulb temperature (nom.)
    144 °C
    Pinch temperature (nom.)
    95 °C
    Product Data
    Full product code
    871150021137805
    Order product name
    TUV 335W XPT SE UNP/20
    EAN/UPC – product
    8711500211378
    Order code
    21137805
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    20
    Material no. (12NC)
    928103105112
    Net weight (piece)
    0.515 kg
    Installation diagrams
    G5.4x17q
    G5.4x17q
    Performance diagrams
    Photometrics
    Downloads
    Leaflets
    • Leaflet Localized commercial leaflet PDF 2.4 MB
